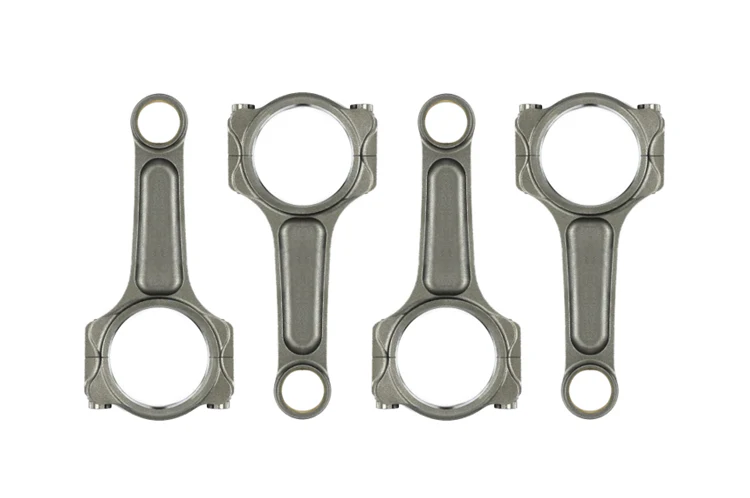

Manley I-Beam Turbo Tuff Rods for 7-Bolt 4G63 DSM/Evo
Manley Performance Pro Series I-Beam Turbo Tuff rods for the 7-Bolt 4G63 DSM and Evo are available with the standard Turbo Tuff 4340 material or the upgraded 300M alloy to handle an additional 400 HP. The I-Beam rods come with 3/8" ARP 2000 rod bolts or upgrade to the ARP 625+ bolts. Includes a full set of 4 rods with Manley assembly lube.
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Standard I-Beam Turbo Tuff Features:
• Forged from 4340 aircraft quality vacuum degassed material
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1000
300M I-Beam Turbo Tuff Features:
• Forged from 300M Alloy
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1400
Includes:
Set of 4 Rods
Manley Lube
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Standard I-Beam Turbo Tuff Features:
• Forged from 4340 aircraft quality vacuum degassed material
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1000
300M I-Beam Turbo Tuff Features:
• Forged from 300M Alloy
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1400
Includes:
Set of 4 Rods
Manley Lube
| Manley I-Beam Turbo Tuff Rods for 4G63 7-Bolt DSM/Evo: | |||||||
| Part Number | Application | Center to Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Grams |
|
14403‑4 14403R6‑4 |
7-Bolt 4G63 | 5.905" | 1.890" | 1.038" | .866" (22mm) | .8671" | 675 |
| Notes: Standard Rods. 150mm Length. | |||||||
|
15403‑4 15403R6‑4 |
7-Bolt 4G63 | 5.905" | 1.890" | 1.038" | .866" (22mm) | .8671" | 675 |
| Notes: 300M Alloy. 150mm Length. | |||||||
|
14400‑4 14400R6‑4 |
7-Bolt 4G63 | 5.905" | 1.890" | 1.038" | .866" (22mm) | .8671" | 630 |
| Notes: Stroker, lighter weight straight beam design. 150mm Length. | |||||||
|
14421‑4 14421R6‑4 |
7-Bolt 4G63 | 6.142" | 1.890" | 1.038" | .866" (22mm) | .8671" | 685 |
| Notes: 6mm Longer (+.237"). 156mm Length. | |||||||
|
14422‑4 |
7-Bolt 4G63 | 6.378" | 1.890" | 1.038" | .866" (22mm) | .8671" | 685 |
| Notes: 12mm Longer (+.473"). 162mm Length. 14422R6‑4 was discontinued June 2023. |
|||||||
