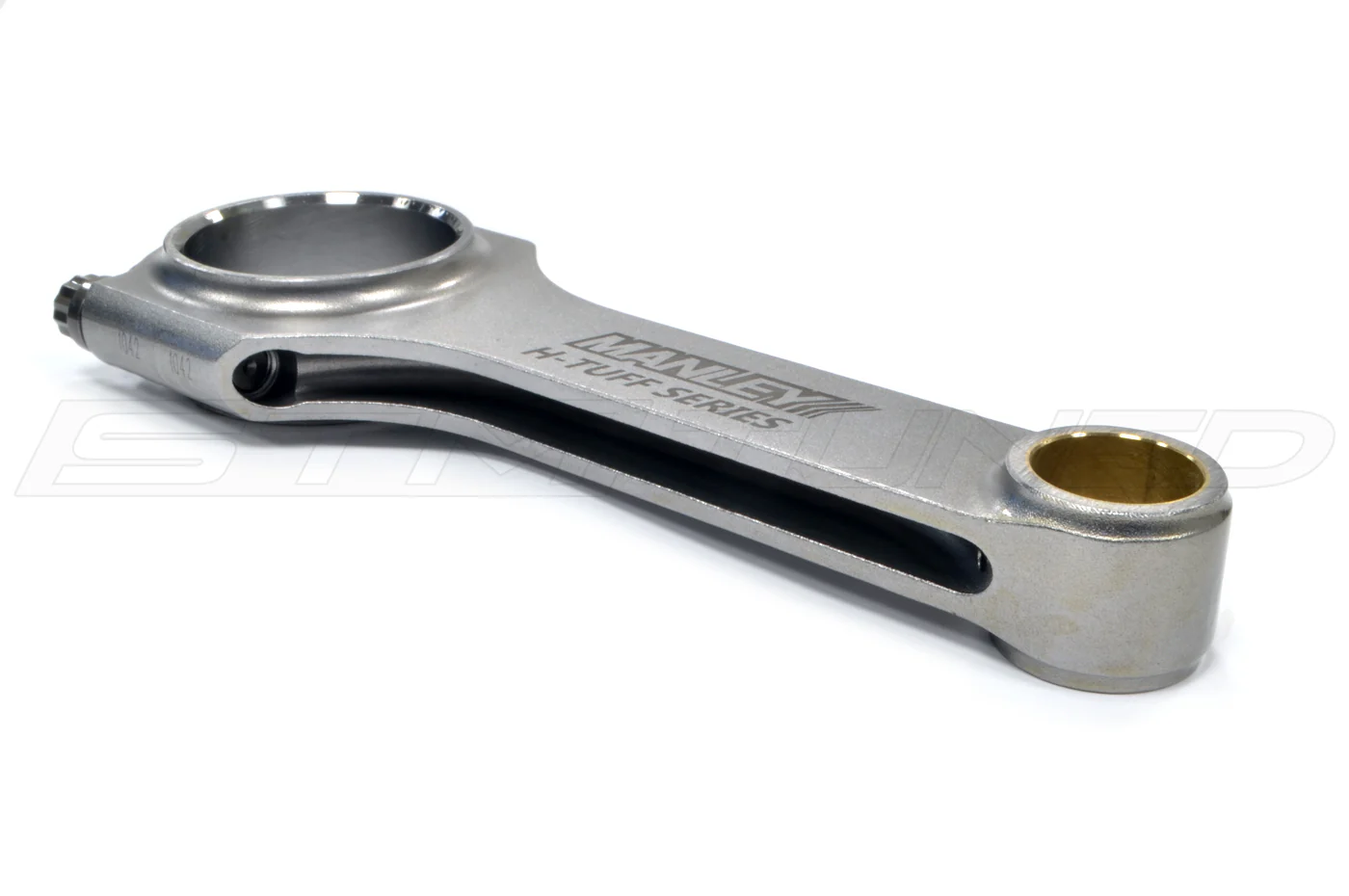

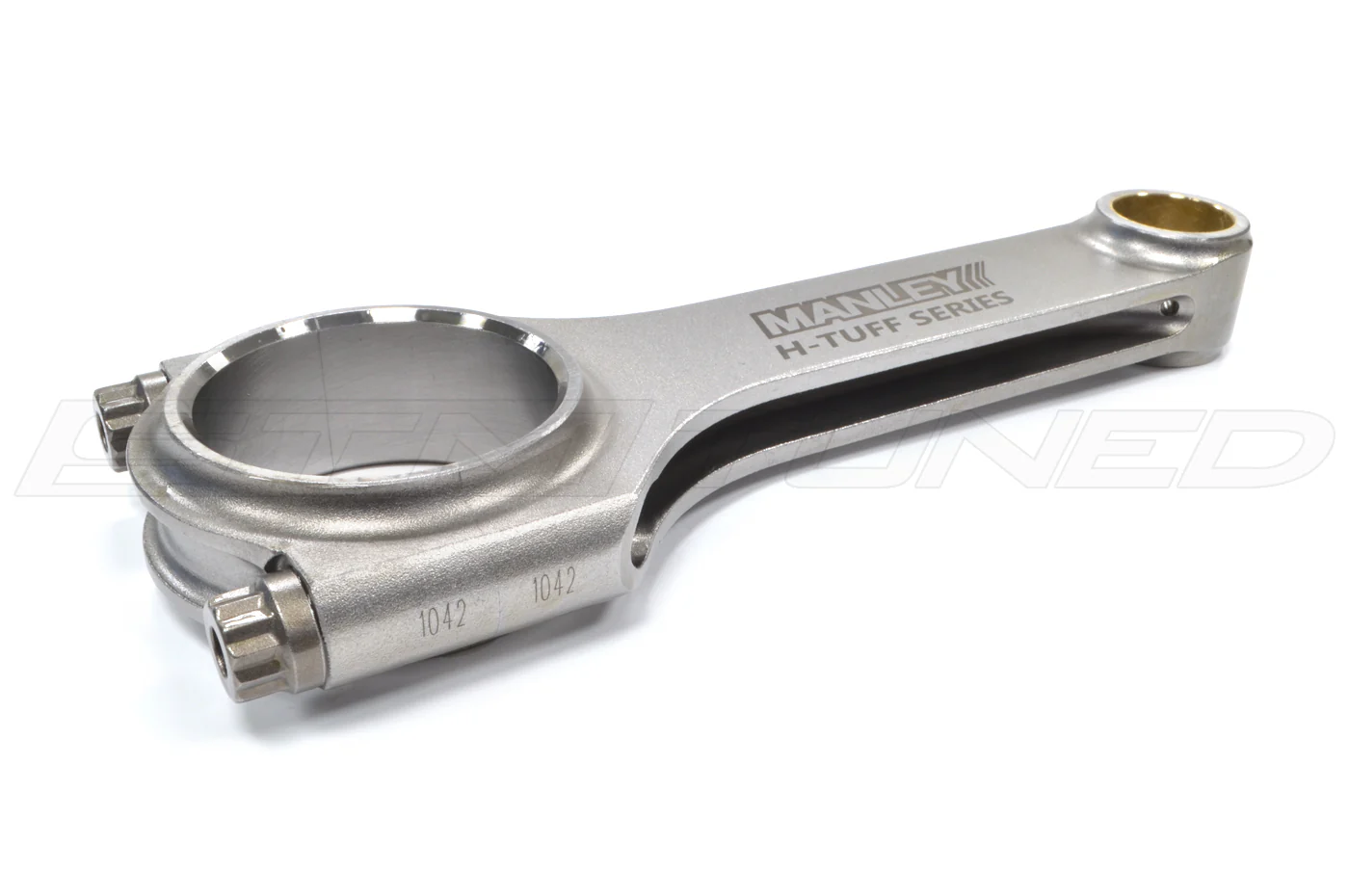

Manley H-Tuff Steel Rods for 7-Bolt 4G63 DSM/Evo
Manley Performance H-Tuff steel rods for the 7-Bolt 4G63 Evolution, Eclipse, Talon, Laser and GVR4. These rods have a wider beam than the standard H-Beam rods. The H-Tuff rods come with 3/8" ARP 2000 rod bolts and are good to 750 crank horsepower.
Available as a full set of 4 rods with Manley assembly lube or 1 individual rod.
Important!
If you are purchasing just one rod, please leave a note at checkout with your current rod weights so they can be matched as closely as possible!
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Features:
ā¢ Manufactured from 4340 forgings
ā¢ Heat treated, stress relieved, shot peened and 100% individually magnafluxed
ā¢ Weight matched sets + 1.5 grams
ā¢ Cap fasteners are 3/8" ARP 2000
ā¢ Flywheel horsepower range is 750
Purchase Includes:
Set of 4 rods or sold individually
The set of 4 includes Manley Lube
| Manley H-Tuff Steel Rods for 4G63 7-Bolt DSM/Evo: | |||||||
| Part Number | Application | Center to Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Grams |
| 15022ā4 (Set of 4) |
7-Bolt 4G63 | 5.905" | 1.890" | 1.038" | .866" (22mm Pin) | .8671" | 635 |
|
Notes: 150mm Rod Length. Recommended bearings to be used: ACL 4B1185/H or Clevite CB-1643P. |
|||||||
| 15020ā4 (Set of 4) |
7-Bolt 4G63 | 6.142" | 1.890" | 1.038" | .866" (22mm Pin) | .8671" | 635 |
| Notes: 156mm Rod Length (.237 / 6mm Longer). | |||||||

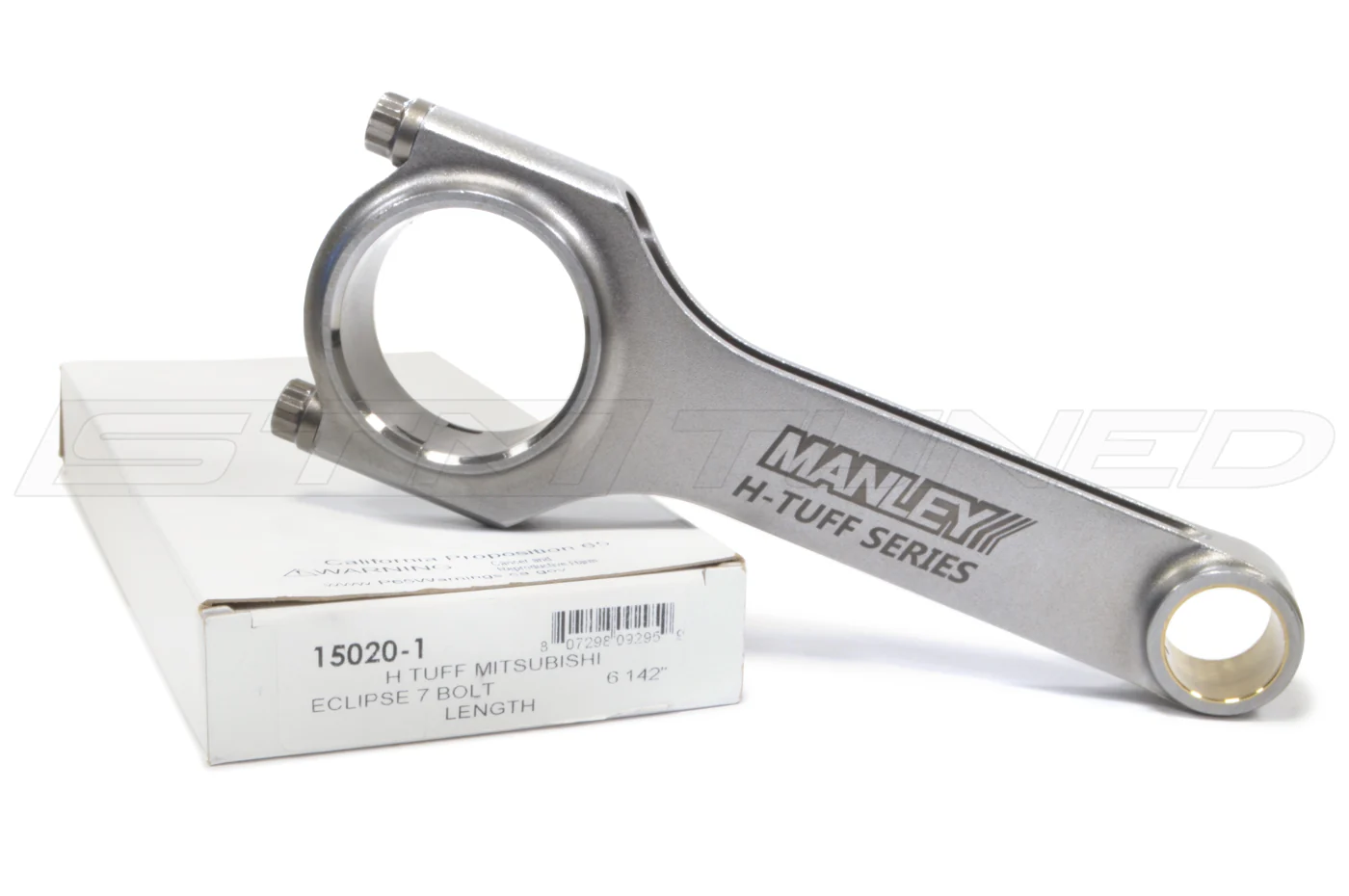

| 15020ā1 (Single Rod) |
7-Bolt 4G63 | 6.142" | 1.890" | 1.038" | .866" (22mm Pin) | .8671" | 635 |
| Notes: 156mm Rod Length (.237 / 6mm Longer). Leave a note at checkout with your current rod weights. |
|||||||
Original: $144.53
-65%$144.53
$50.59
