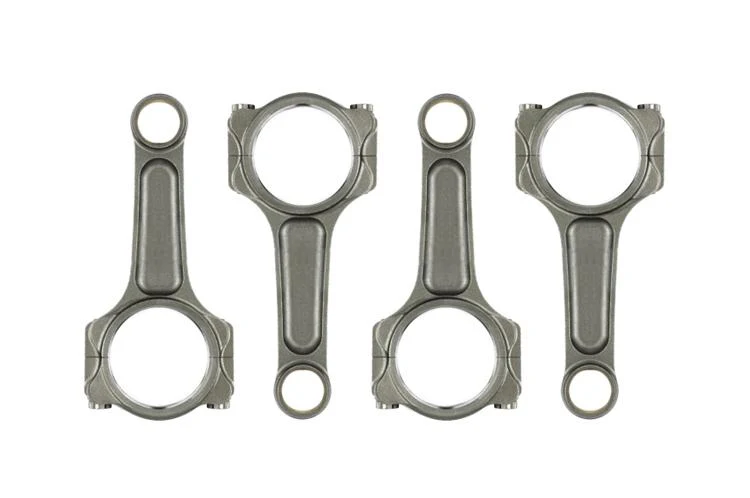

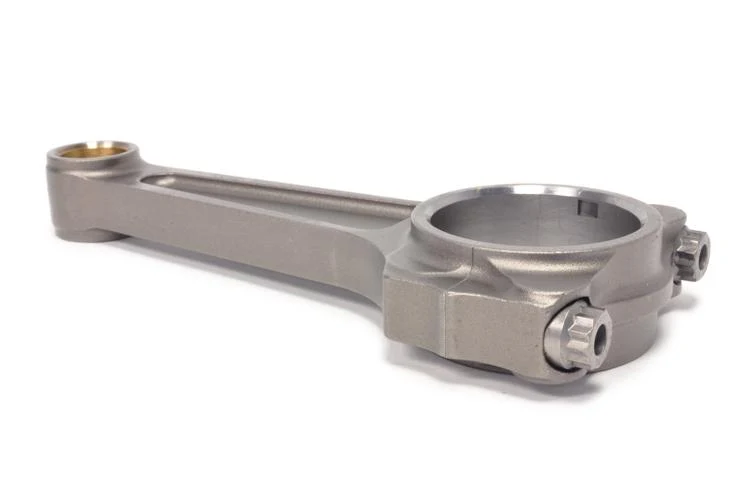

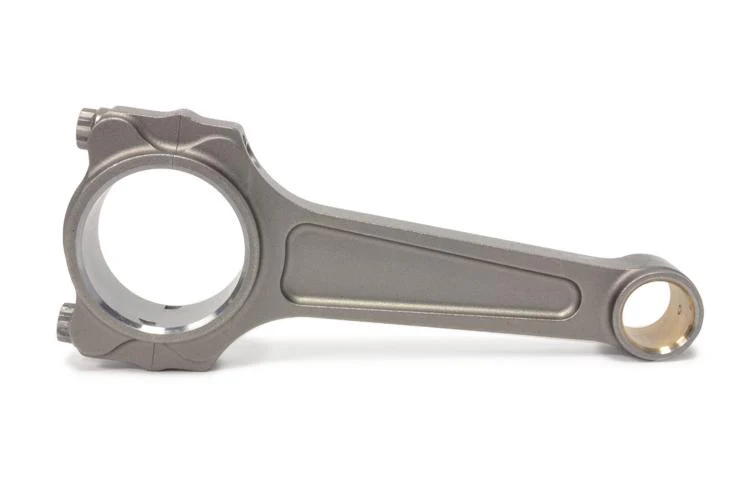

Manley I-Beam Turbo Tuff Rods for 6-Bolt 4G63 DSM
Manley Performance Pro Series I-Beam Turbo Tuff rods for the 6-Bolt 4G63 DSM are available with 3/8" ARP 2000 rod bolts or upgrade to the ARP 625+ bolts. Includes a full set of 4 rods with Manley assembly lube.
Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992 Galant VR4
Standard I-Beam Turbo Tuff Features:
• Forged from 4340 aircraft quality vacuum degassed material
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1000
Includes:
Set of 4 Rods
Manley Lube
| Manley I-Beam Turbo Tuff Rods for 4G63 6-Bolt DSM: | |||||||
| Part Number | Application | Center to Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Grams |
|
14413‑4 14413R6‑4 |
6-Bolt 4G63 | 5.905" | 1.890" | 1.115" | .827" (21mm) | .8281" | 695 |
| Notes: Standard Rods. 150mm Length. 21mm Pin. | |||||||
|
14407‑4 14407R6‑4 |
6-Bolt 4G63 | 5.905" | 1.890" | 1.115" | .866" (22mm) | .8281" | 685 |
| Notes: Standard Rods. 150mm Length. 22mm Pin. | |||||||
|
14426‑4 |
6-Bolt 4G63 | 6.142" | 1.890" | 1.115" | .866" (22mm) | .8281" | 700 |
| Notes: 6mm Longer (+.237"). 156mm Length. 22mm Pin. 14426R6‑4 was discontinued June 2023. |
|||||||
