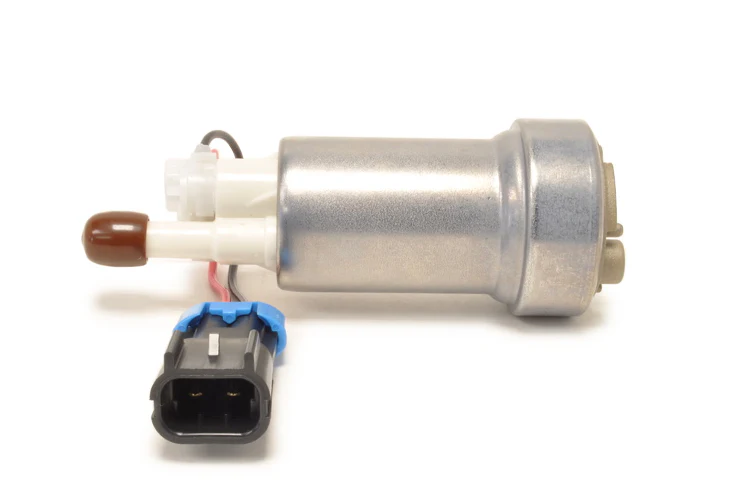

Walbro 535 LPH F90000295 Hellcat In-Tank Fuel Pump (Gas/E85)

The Walbro F90000295 535 LPH is compatible with both gasoline and E85 for use with vehicles making 900+ HP. Matching universal Walbro Install Kit (400-0085) and STM Fuel Pump Rewire Kit (FPRW) are available in the purchase menu for a complete installation!


Vehicle Fitment:
Universal Fitment
Requires modifications to wiring, fuel lines and fuel module.
Compatible with Evo/DSM/GTR/WRX/STi/3000GT and more!
Professional installation recommended.
Pump does NOT have a check valve

Fuel Compatibility:
Gasoline
E85 Safe!

Purchase Options:
Fuel Pump Only (F90000295)

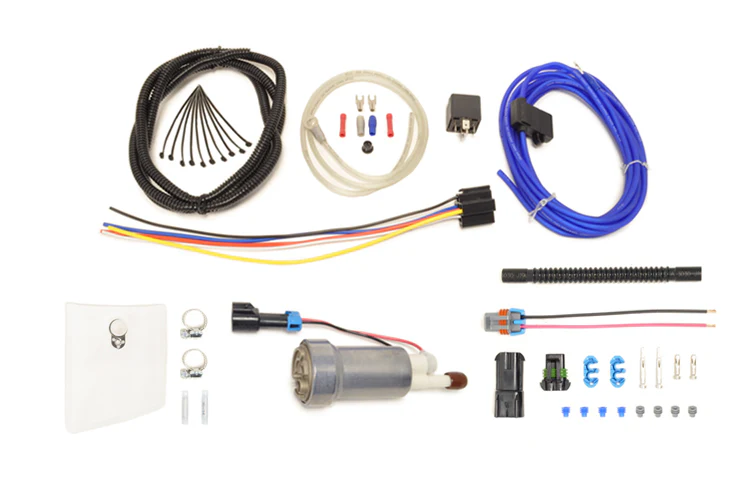

Fuel Pump & Install Kit (F90000295 & 400-1168)
Fuel Pump, Install Kit and Re-Wire Kit

More Info:
Walbro 535LPH - TI Automotive TCD495 Fuel Pump
Highest flow in-tank brushed fuel pump from TI Automotive

• Horsepower: 985HP+ at 60PSI, naturally aspirated applications
• Horsepower: 900HP+ at 90PSI, naturally aspirated applications
• Flow Rate: 490LPH @ 40psi (130 gph)

New DCSS 39/50 High-Performance Pump – F90000295:
• Highest flow in-tank brushed fuel pump offering from TI Automotive / Walbro
• No Internal check valve - ideal for racing applications to build oil pressure prior to start-up
• Featuring award winning DCSS technology
• E85 compatible
• High-pressure relief setting - supports supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Complete Pump and kit combination – TCD495

Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 535LPH at 40psi
Test Voltage: 13.5 Volts

Notes:
Pump does NOT have a check valve
All Power estimates are for 3 Bar of Fuel Pressure, and are HP and KW at the engine.
