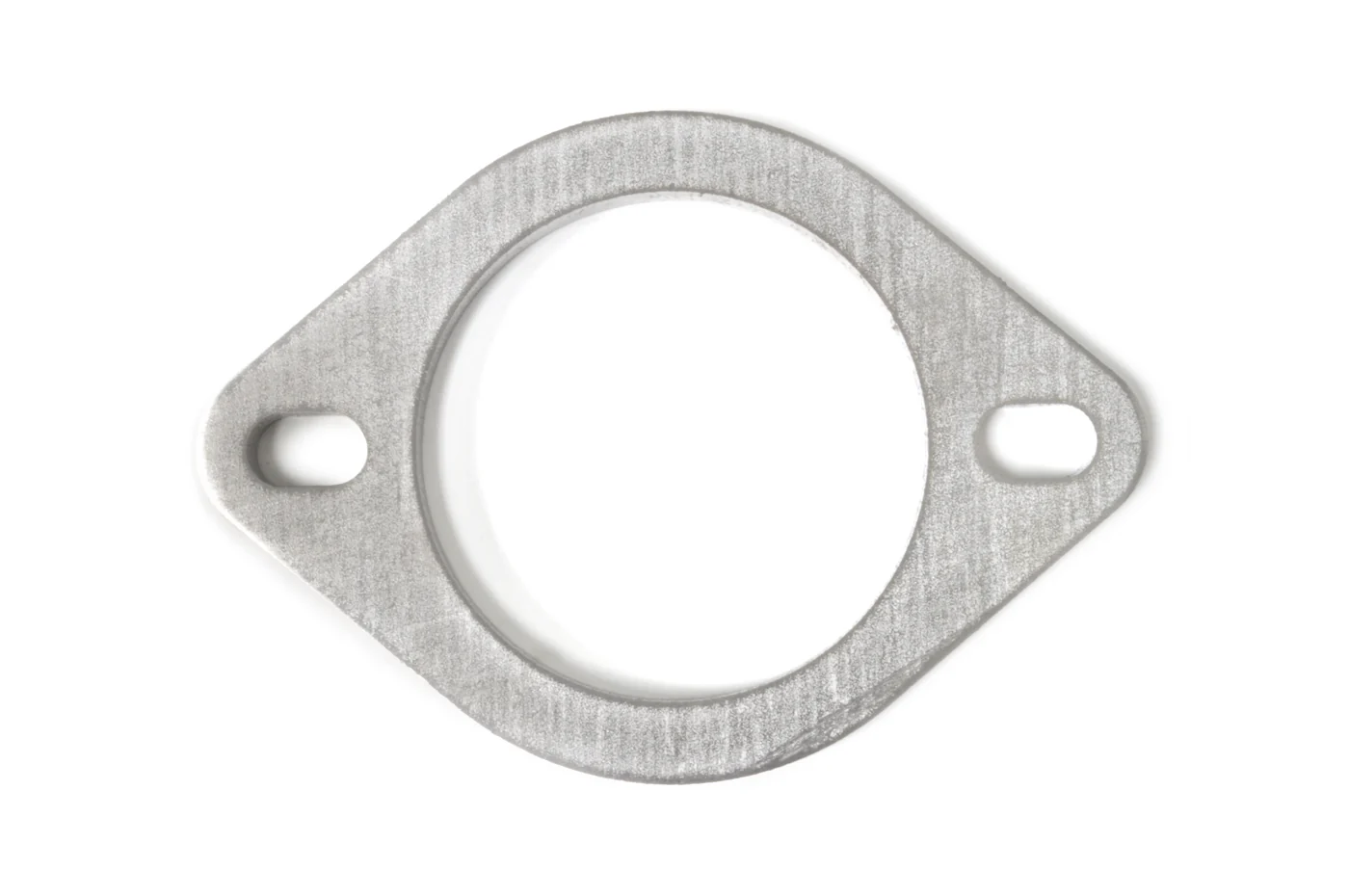

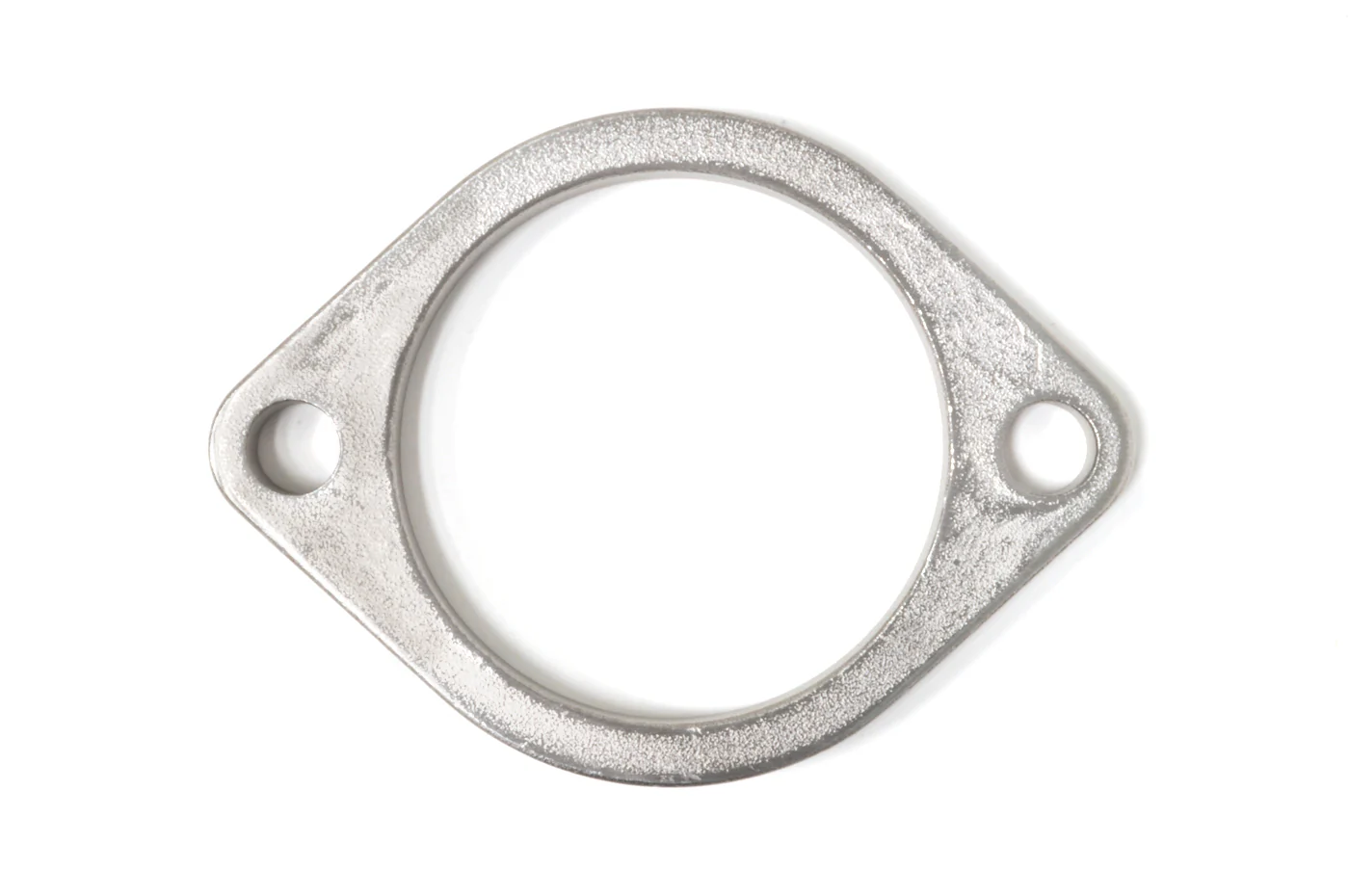

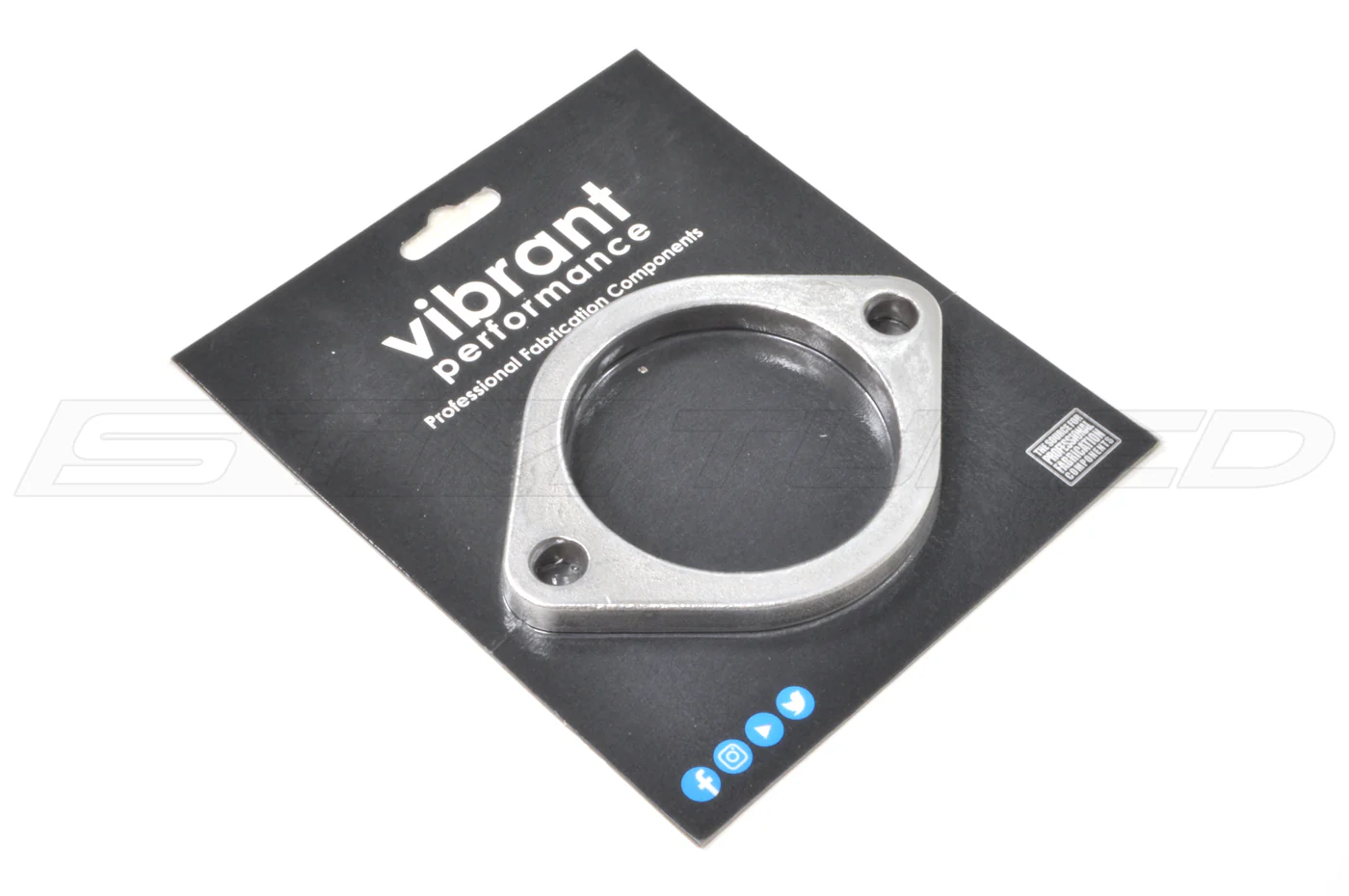

Vibrant Stainless Steel 2-Bolt Exhaust Flange
Vibrant Performance 2-bolt stainless steel exhaust flanges are available in various inner diameter sizes (ID) and sold individually as needed. Check the table below for all specs and dimensions. These flanges are designed to be welded to stainless tubing.
Specs:
• T304 Stainless Steel

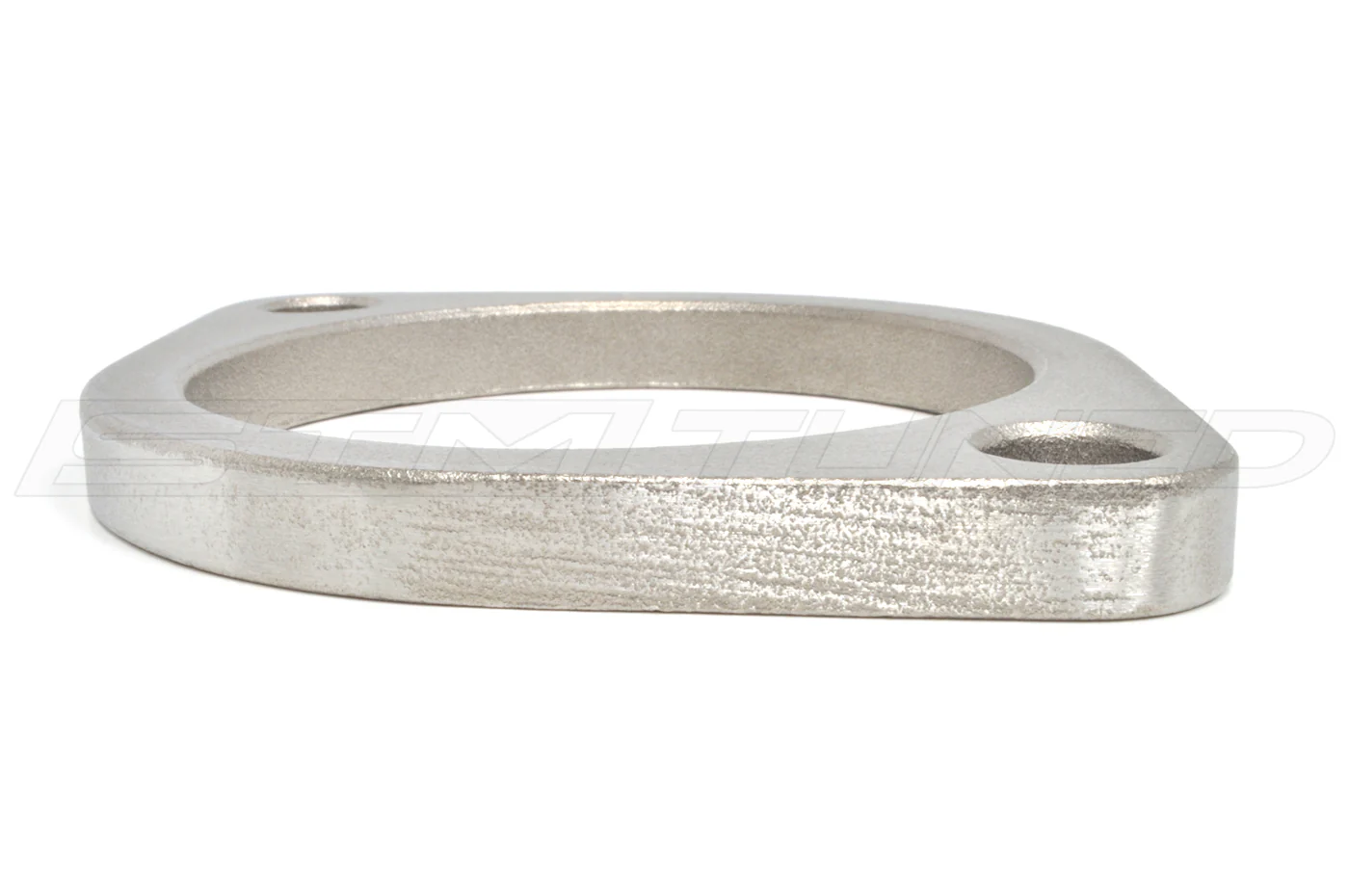

• 3/8" Thick Flange
Purchase Includes:
(1) Flange
Specs:
• T304 Stainless Steel
• 3/8" Thick Flange
Purchase Includes:
(1) Flange
Vibrant Stainless Steel 2-Bolt Exhaust Flanges |
|||||
| ID Size: | Width: | Height: | Bolt Hole Center to Center: | Thickness: | Part Number: |
| 2.00" | 4.90" | 3.00" | 3.50" | 0.375" | 1470S |
| 2.25" | 5.25" | 3.50" | 4.00" | 0.375" | 1471S |
| 2.50" | 5.25" | 3.50" | 4.00" | 0.375" | 1472S |

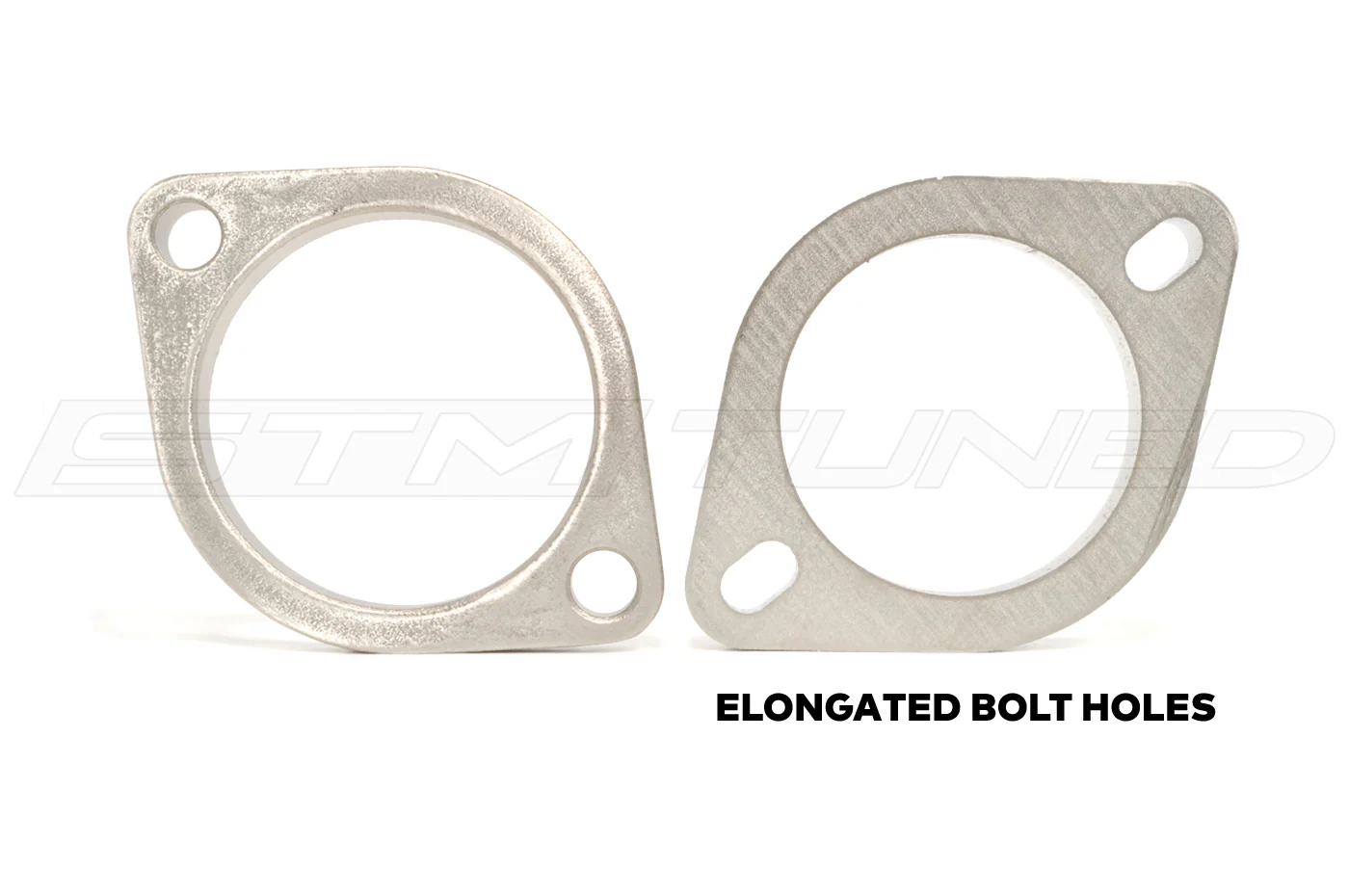

| 2.75" | 5.25" | 3.66" | 3.89" (Elongated Bolt Holes) | 0.375" | 1474S |
| 3.00" | 5.05" | 3.70" | 4.15" | 0.375" | 1473S |
| 4.00" | 6.00" | 4.40" | 5.00" | 0.375" | 1475S |
