Supertech Dual Valve Spring Kit for 2JZ Supra

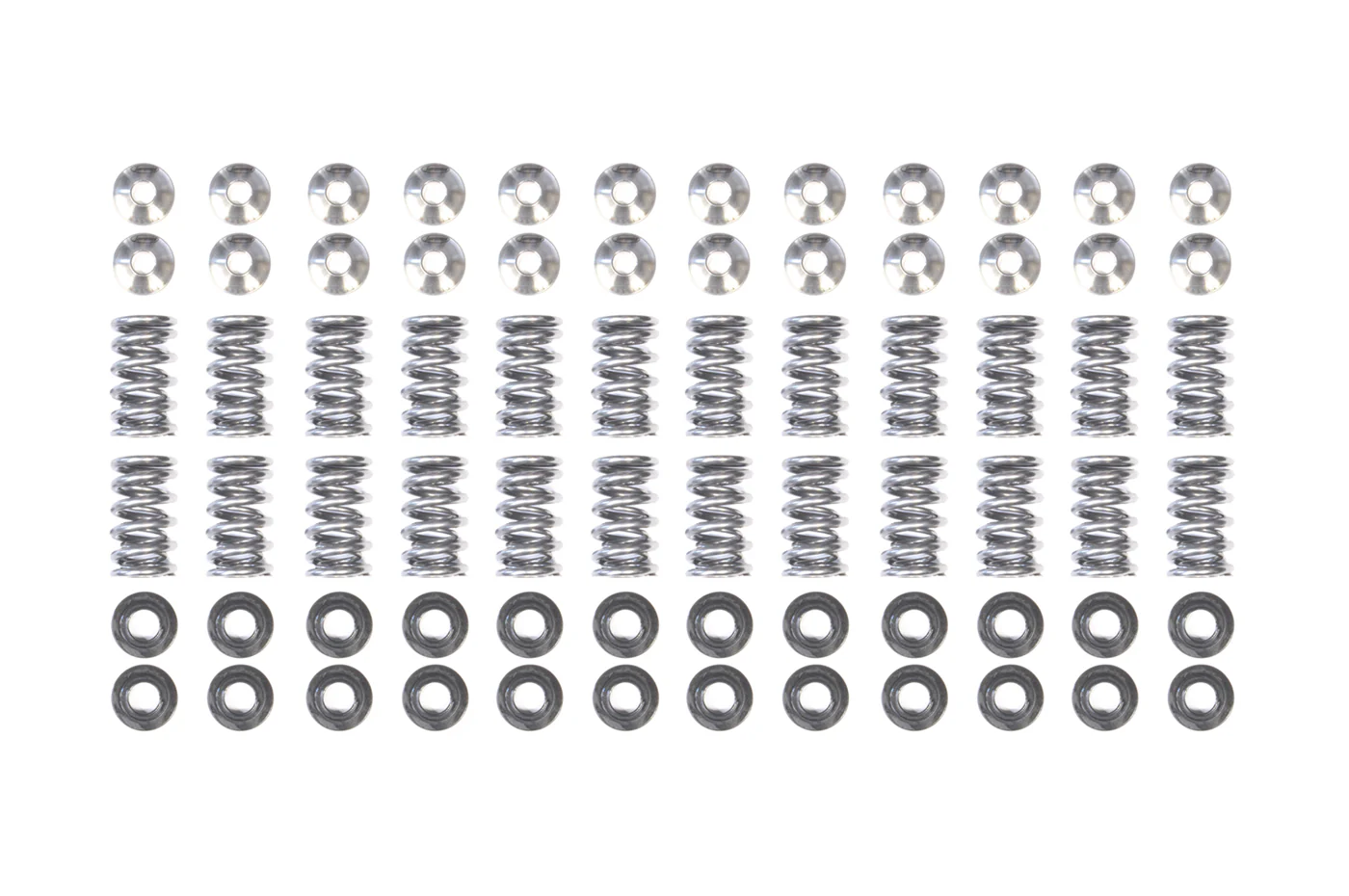

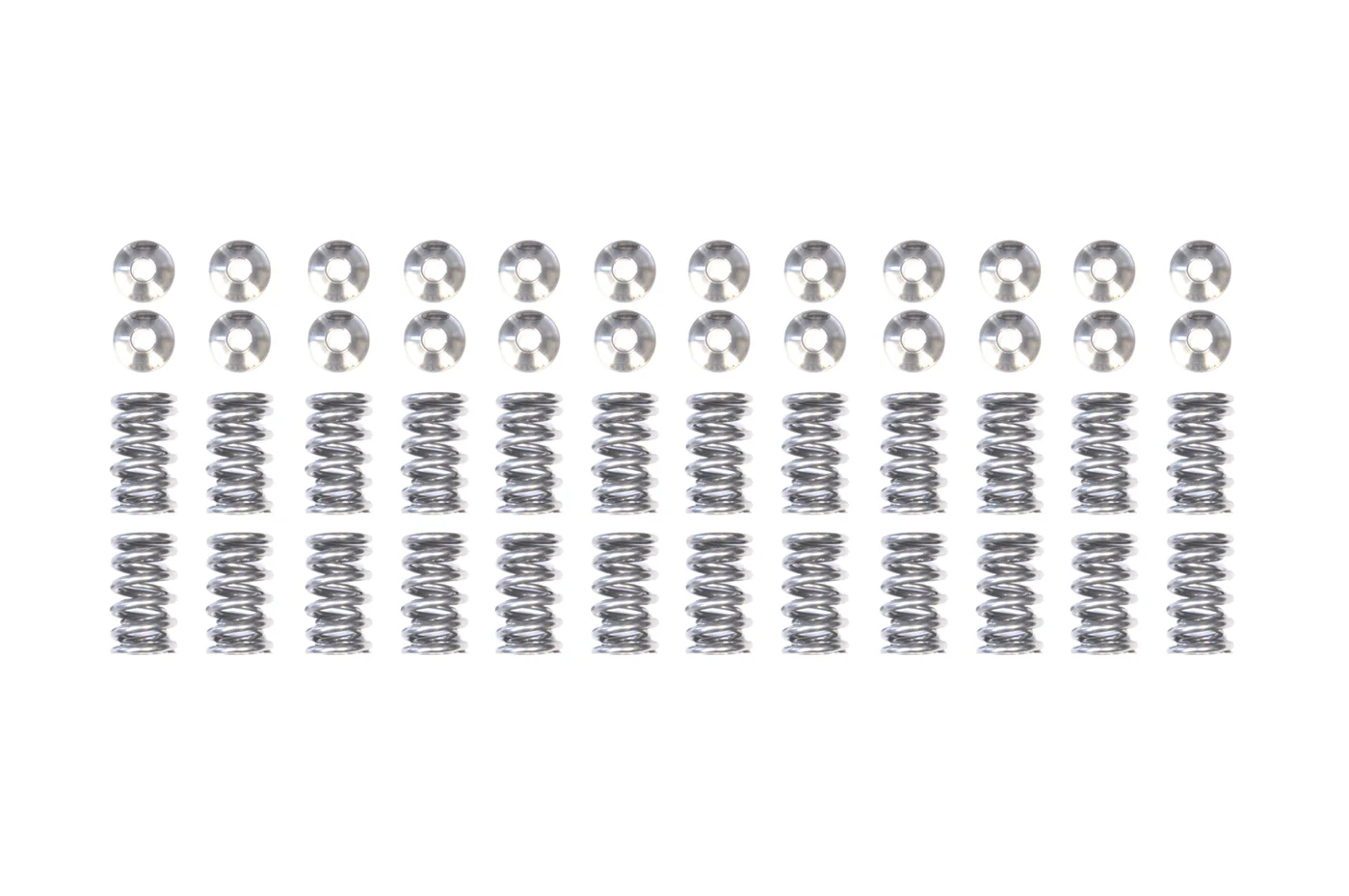

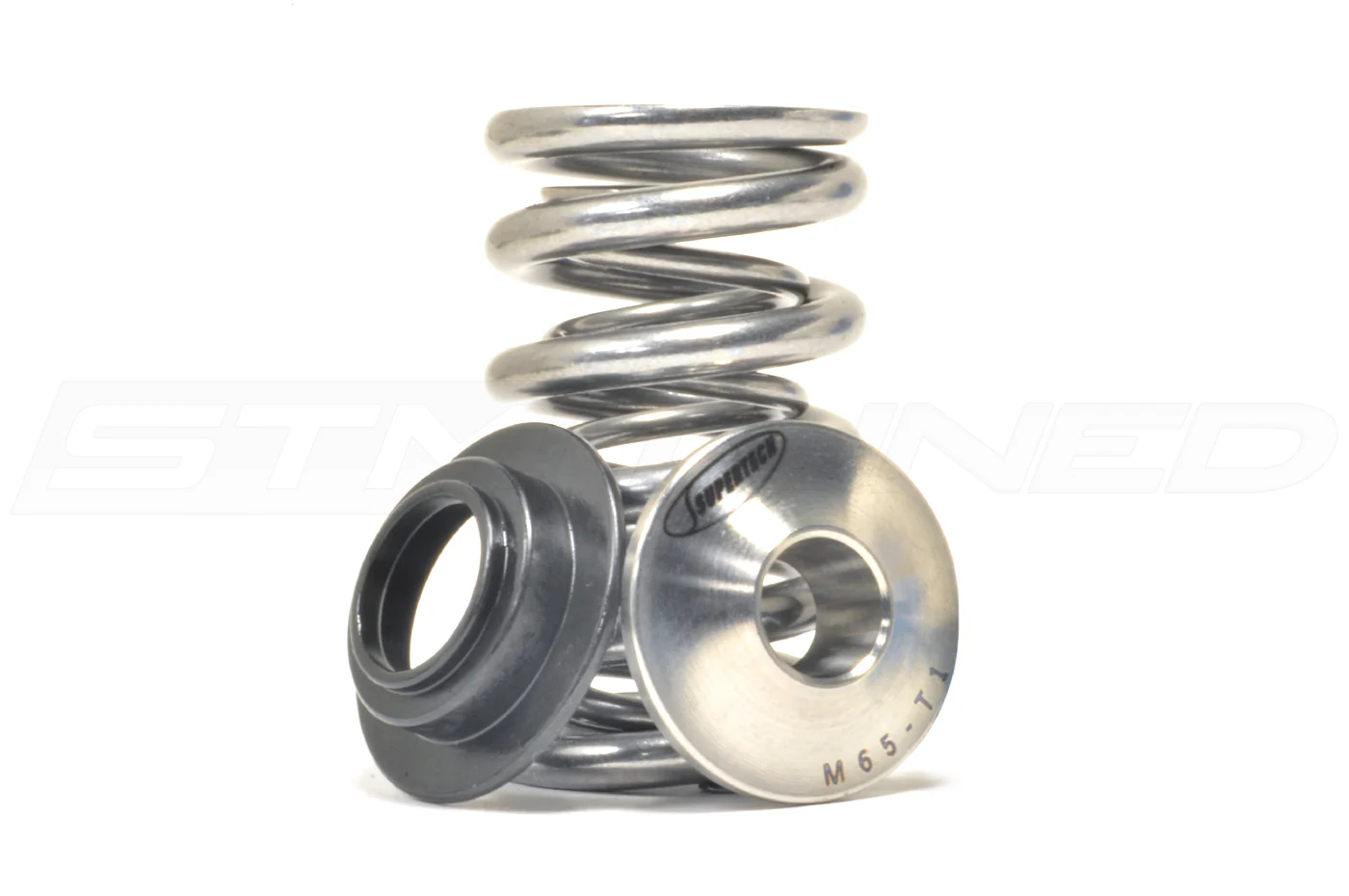

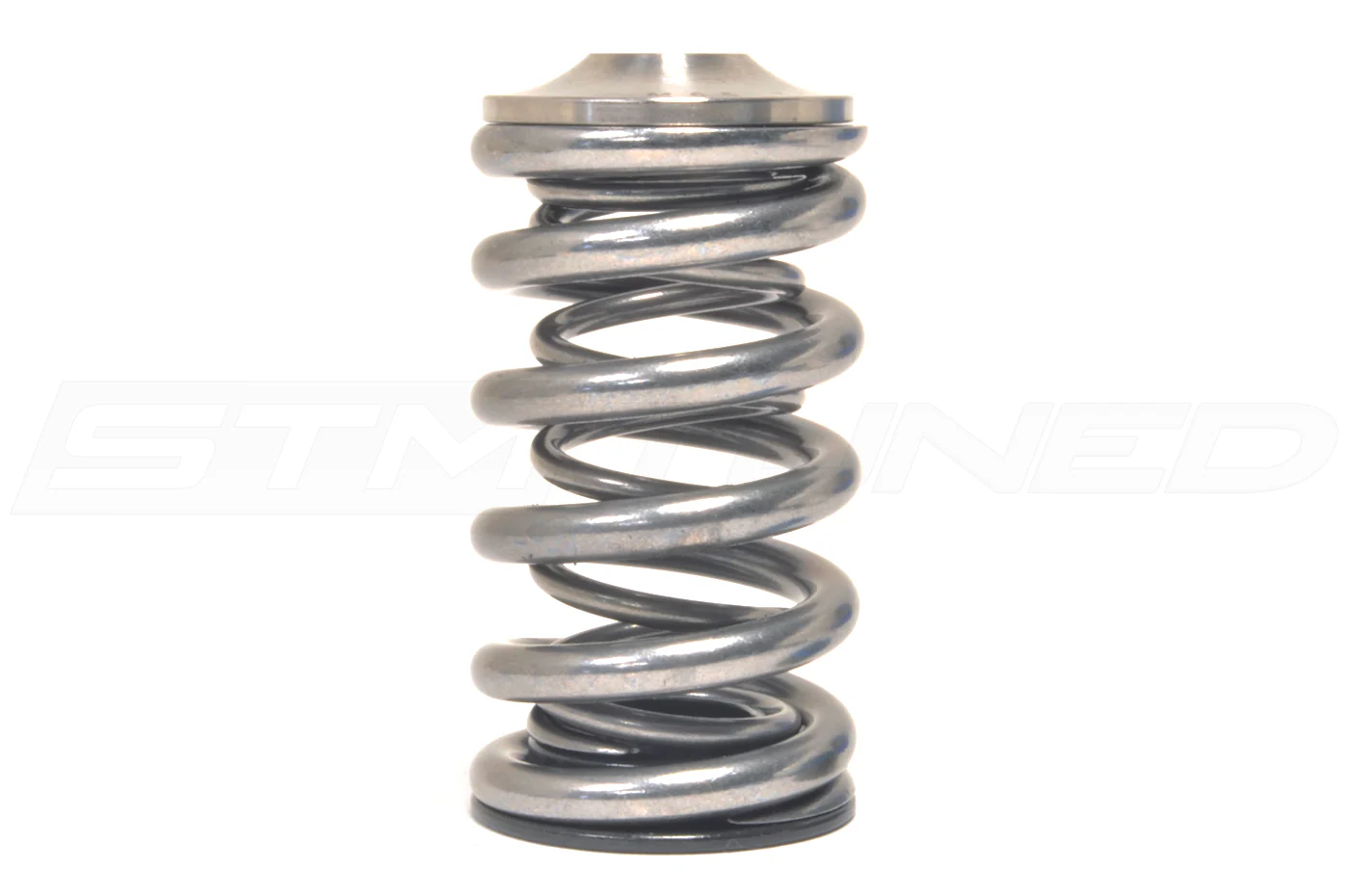

Supertech dual valve spring kits for 2JZ Toyota Supra. Includes 24 dual springs, 24 titanium retainers and seat locators. There are 3 options for the pressure seat, please do all your research and consult your engine builder if necessary!
Vehicle Fitment:
1993-1998 Toyota Supra Twin Turbo
• 2JZGTE MK4 MKIV
Purchase Includes:
(24) Valve Springs
(24) Titanium Retainers
(24) Seat Locators*
* The drag race version does not come with seats, you'll reuse the OEM locators.
All Supertech valve springs are made with premium Superclean Chrome Silicon Vanadium Steel alloy for higher performance and durability at high RPM. Using high quality steel alloy also provides the added benefit of better structural memory.
Supertech retainers are manufactured with high quality military certified Titanium alloy, and are CNC machined for a tight fit.
Images are for reference.
Vehicle Fitment:
1993-1998 Toyota Supra Twin Turbo
• 2JZGTE MK4 MKIV
Purchase Includes:
(24) Valve Springs
(24) Titanium Retainers
(24) Seat Locators*
* The drag race version does not come with seats, you'll reuse the OEM locators.
| Part Numbers: | Pressure Seat: | Details: |
| SPRK-TS1012 | lbs @ mm | Max Lift: 13.60mm Coil Bind: 20.00mm Rate: 9.60 lbs/mm Retainer: RET-TS60/T1B Seat Locator: SEAT-TS1015/2 + OEM seat locator Spring: SPR-TS012 |
| SPRK-TS1015 | 91lbs @ 33.60mm | Max Lift: 12.90mm Coil Bind: 20.70mm Rate: 12.10 lbs/mm Retainer: RET-TS60/T1B Seat Locator: SEAT-TS1015/2 + OEM seat locator Spring: SPR-TS1015 |
| SPRK-TS1009 *Drag Race ONLY* |
118lbs @ 33.60mm | Max Lift: 12.10mm Coil Bind: 20.7mm Rate: 14.50 lbs/mm Retainer: RET-TS60/T1-2 Seat Locator: USE OEM SEAT Spring: SPR-TS1009 |
Supertech retainers are manufactured with high quality military certified Titanium alloy, and are CNC machined for a tight fit.
Images are for reference.
