STM Billet Evo X Rear Diff Bracket for Evo 8 Diff Swap

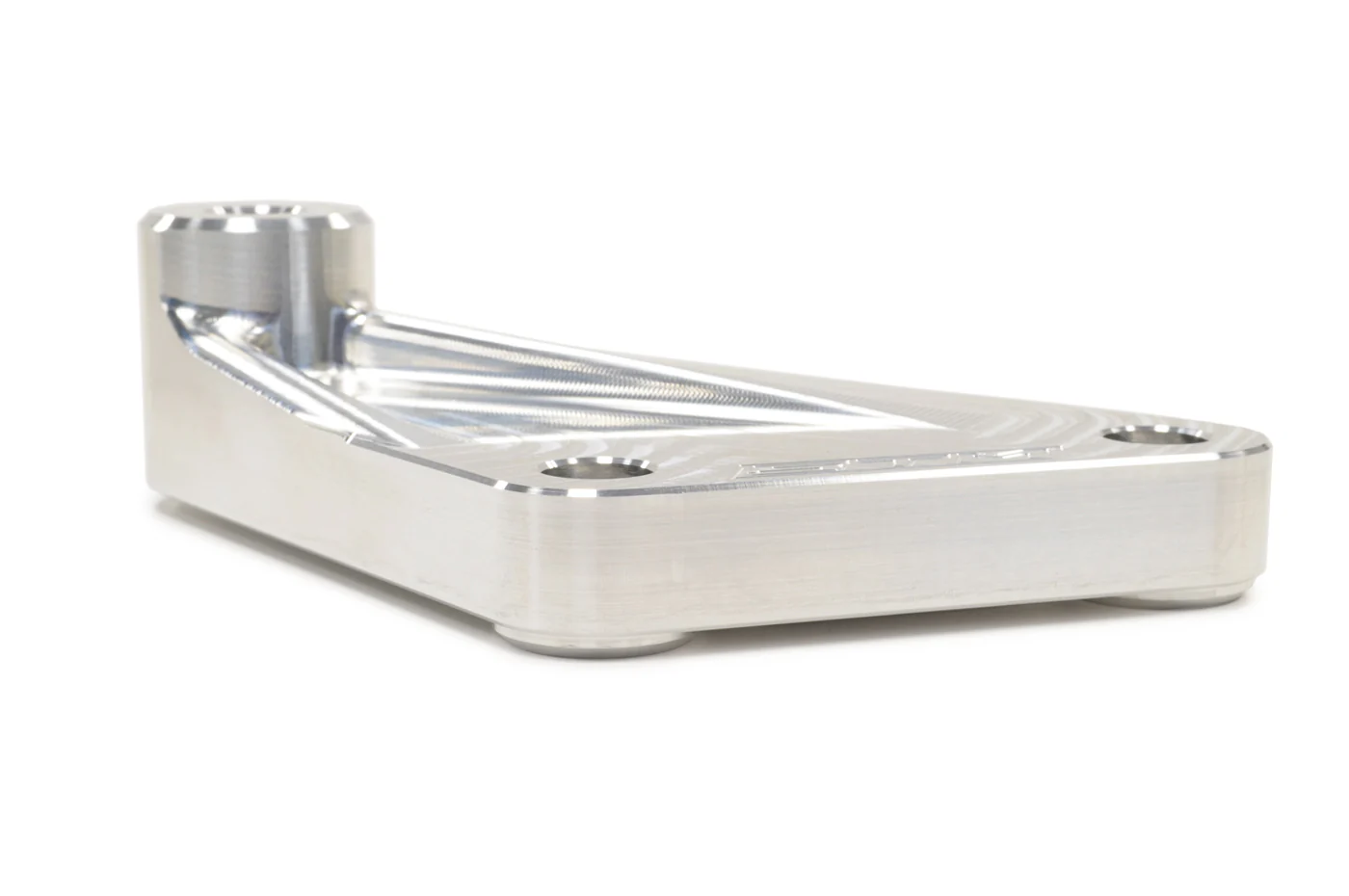

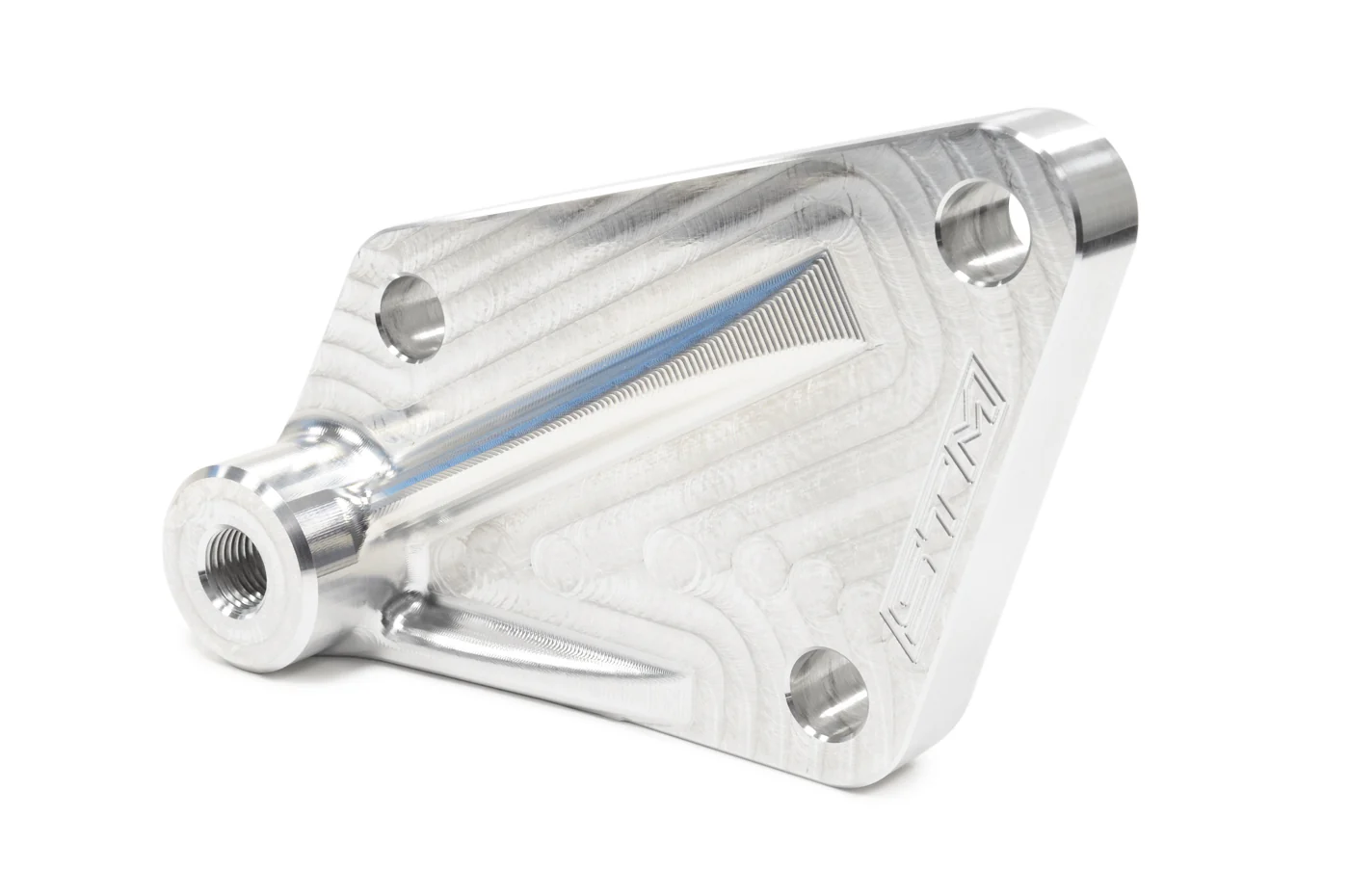

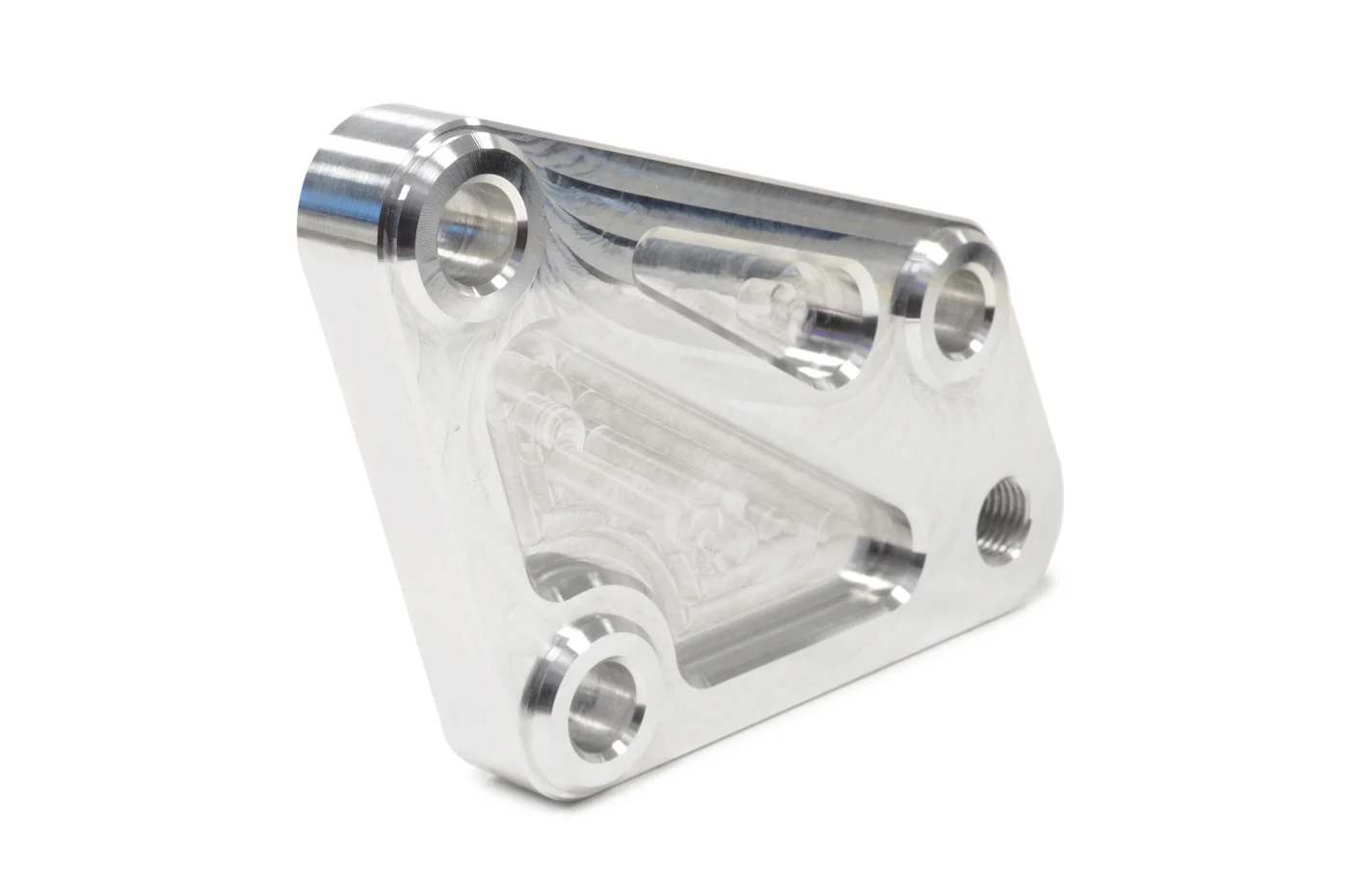

The STM Evo X rear diff bracket is used for swapping an Evo 8 rear differential into an Evo X. CNC machined in house at STM from billet aluminum. Lightweight replacement upgrade for the discontinued OEM 3517A020 bracket.

Vehicle Fitment:
2008-2015 Evolution X with Evo 8 rear diff swap

Purchase Includes:
(1) Billet STM Bracket

Features:
• Billet aluminum
• 4.6 ounces lighter than stock
• STM Products are made in the USA!
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects

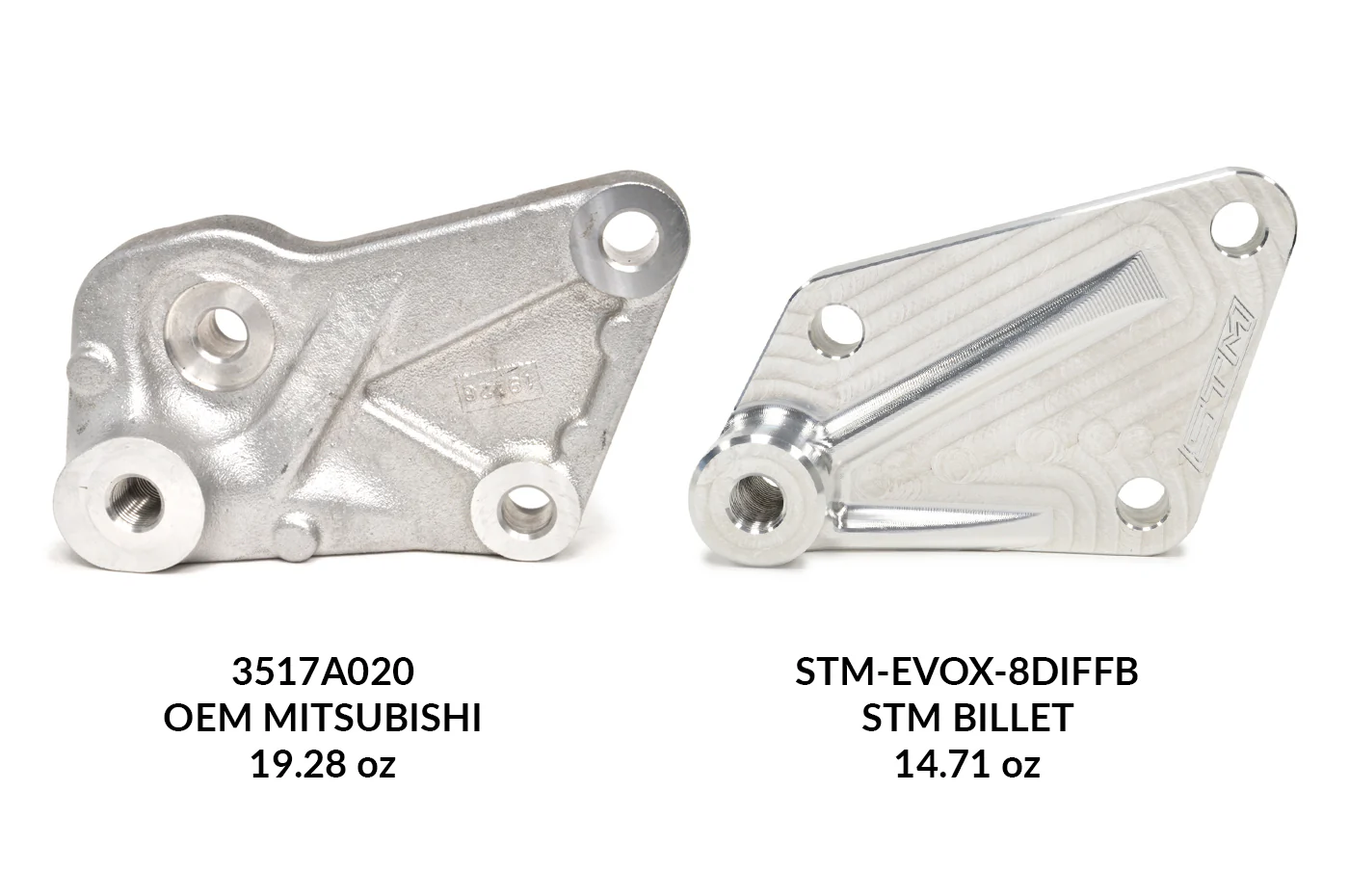

Weights:
• STM Bracket is 14.71 ounces
• OEM bracket is 19.28 ounces

Install Bolts:
You'll need 3 of the small OEM Evo 8 bolts for install. You'll reuse the large factory Evo X bolt, but if your bolt is looking rough, we offer those new as well:
• Small Evo 8 Bolts (MF140287)
• Large Evo X Bolt (MU000546)

Evo X Axles for Evo 8 Rear Diff Swap:
You'll also need special axles for the rear diff swap.
• DSS 900HP Rear Axles for Evo X with Evo 8/9 Diff
