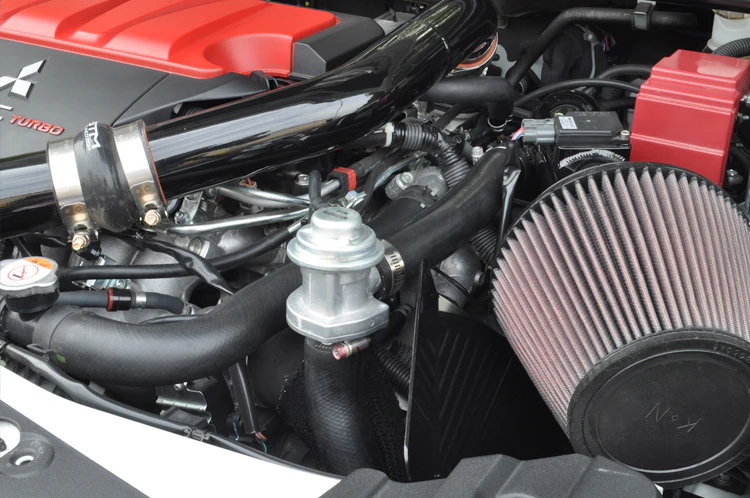

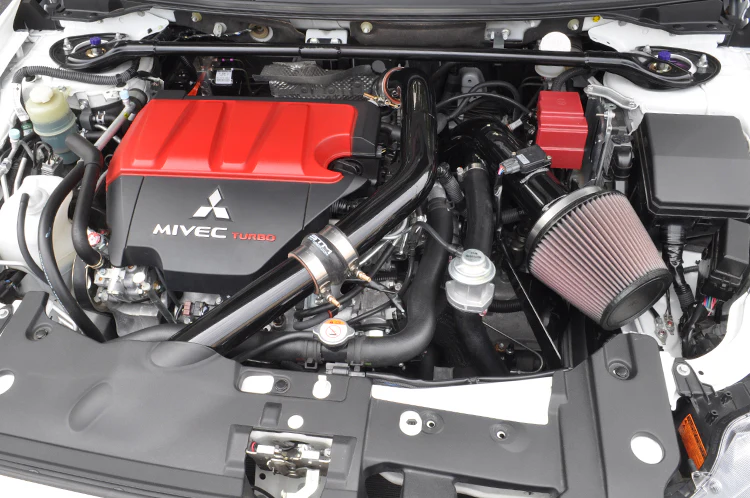

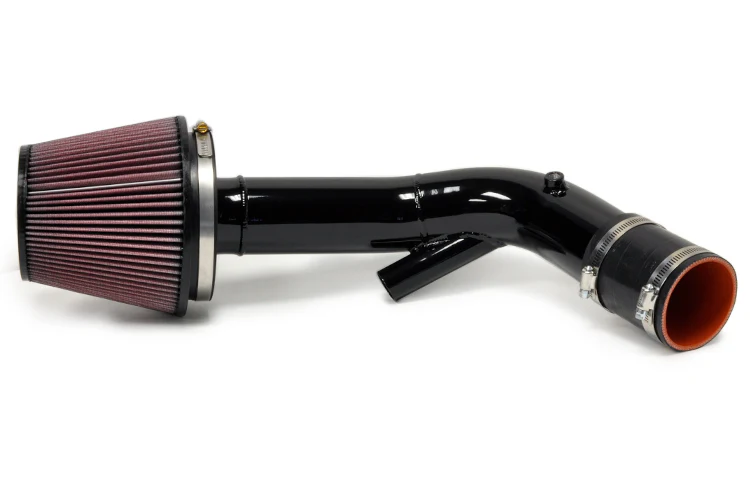

STM Evo X Bellmouth Intake

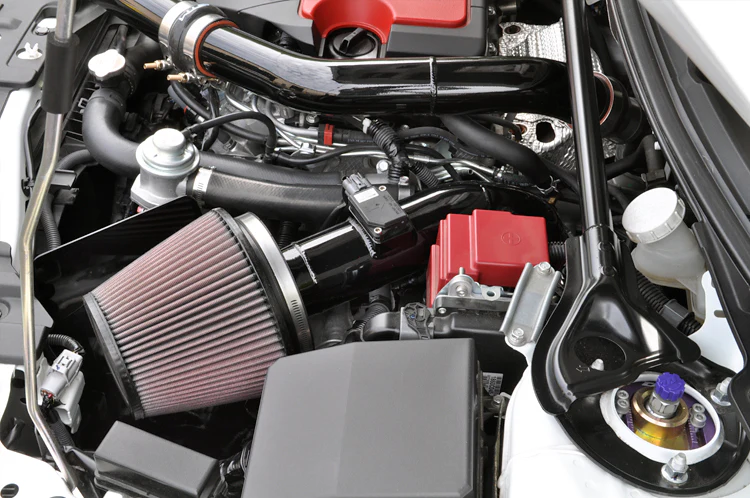

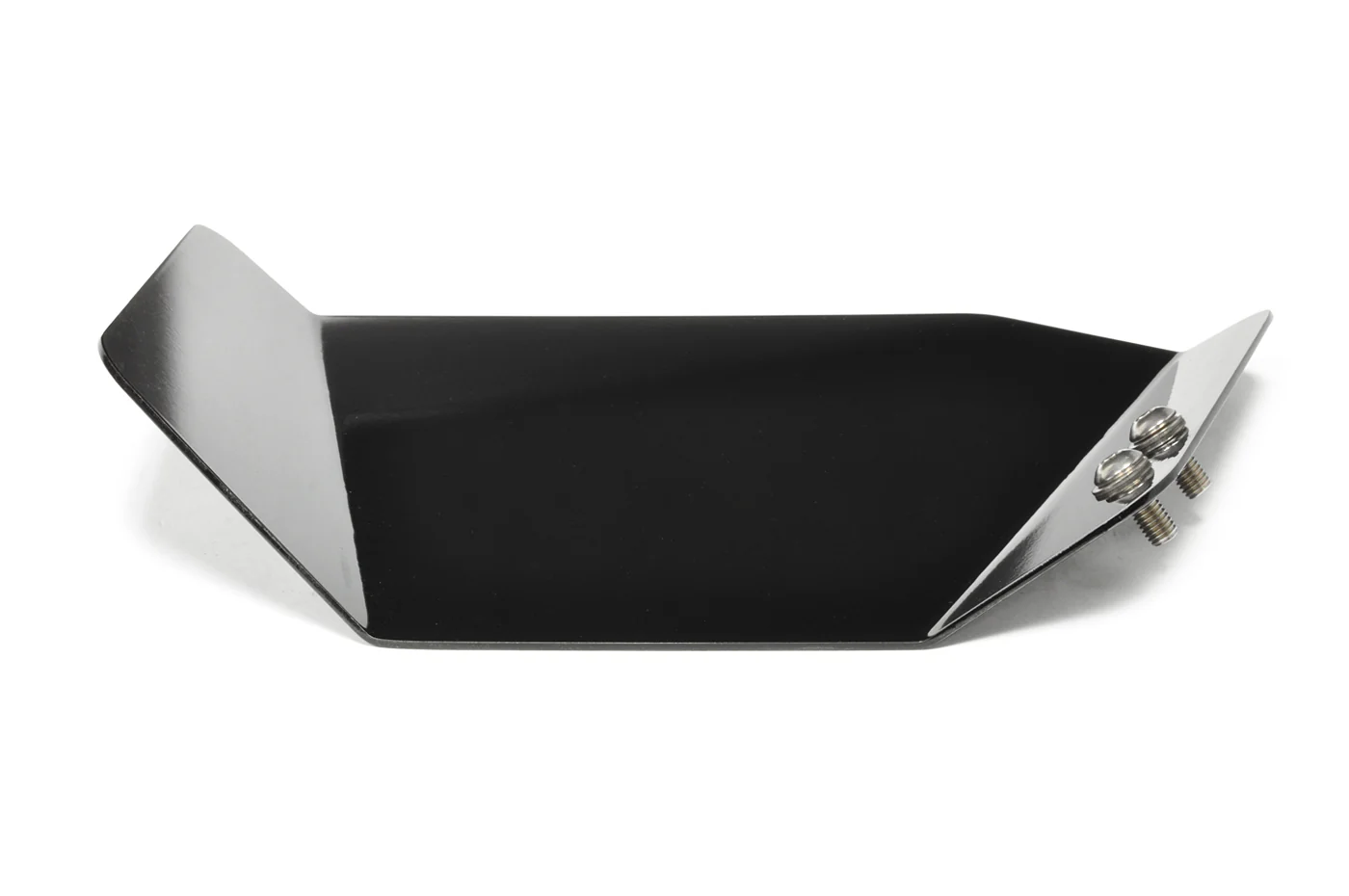

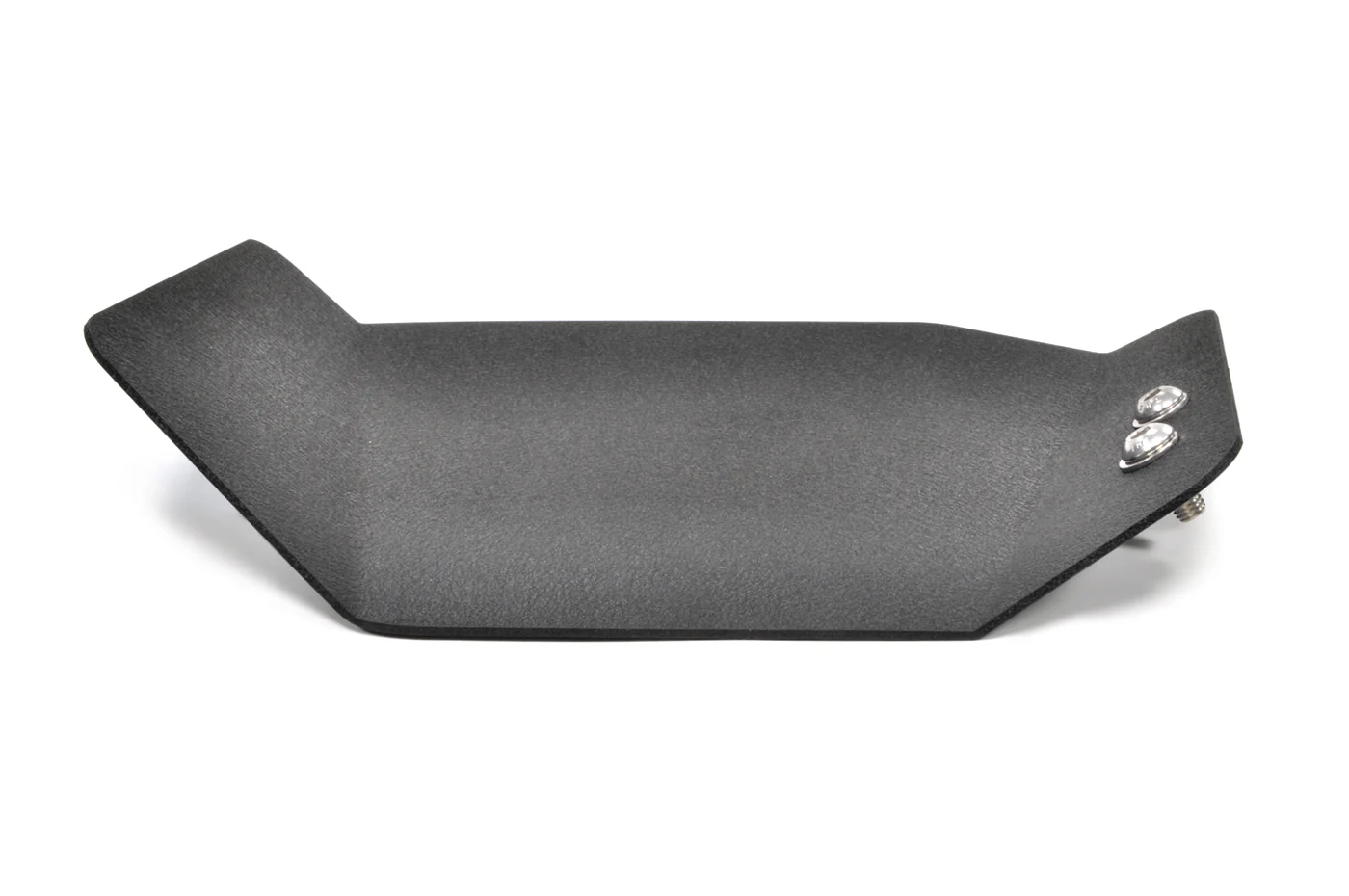

The STM Evo X bellmouth intake kit incorporates a huge 6" velocity stack to utilize the air space of the giant K&N filter to keep air flowing smoothly into your turbo. Matching aluminum intake heat shield is included as well as a STM silicone coupler to match your 2.75" or 3" turbo inlet, clamps, brass fittings, block off's and vacuum hose for a clean install.

Vehicle Fitment:

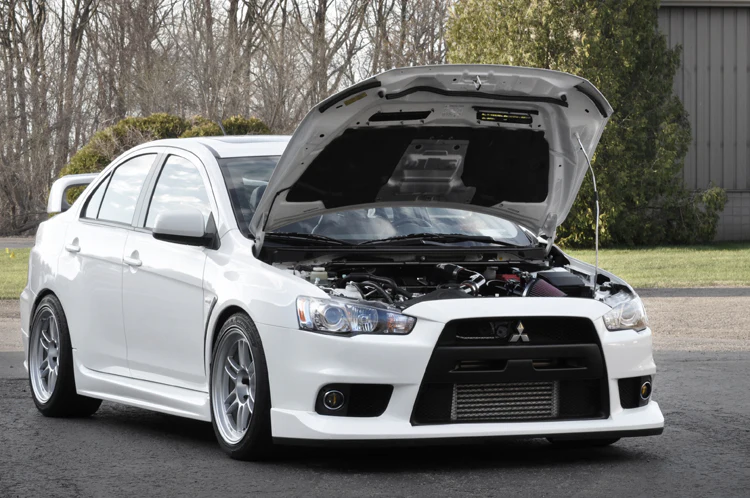

2008-2015 Mitsubishi Evolution X
• Fits stock turbo (2.75" inlet) or stock-replacement turbo (3" inlet)

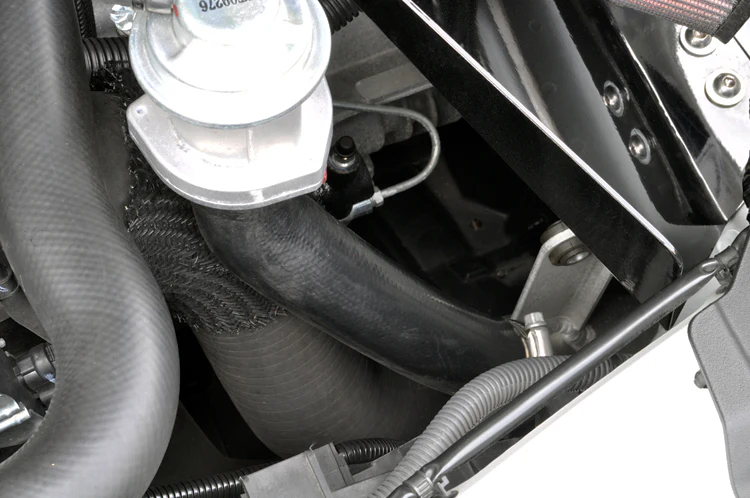

• You will need to cut and re-route your blow off valve recirculation hose.

Features:
• For Stock Turbo (2.75" Inlet) or Upgraded (3" Inlet)
• Barb Fittings with Optional Block Off's for Vacuum Lines
• Stainless & Brass Hardware

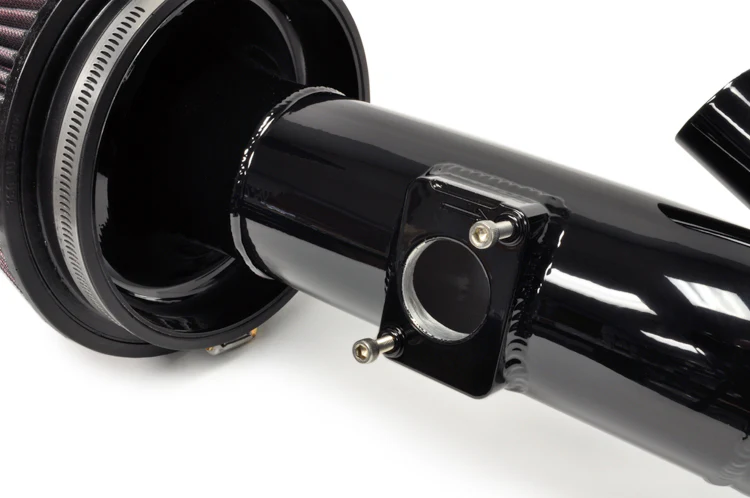

• CNC MAF Flange
• Heatshield Included
• Lightweight Aluminum Piping
• Hand Fabricated
• Choice of Finish
• High-Quality Couplers
• Stainless Clamps
• STM Products are made in the USA!
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.

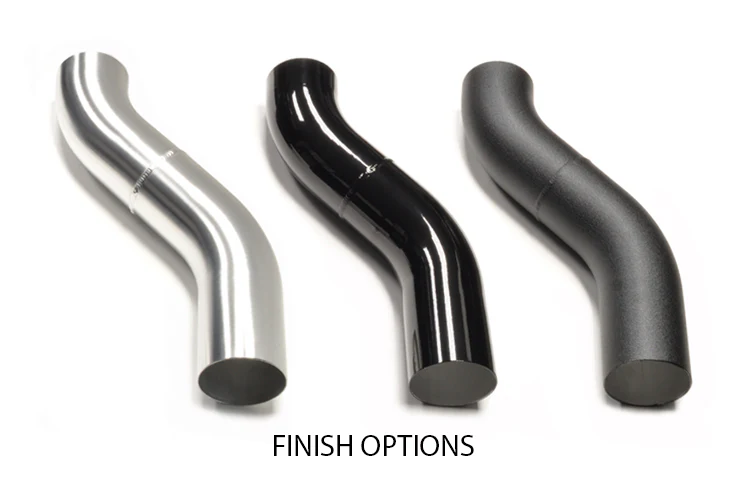

Finish Options:
• Gloss Black Powdercoat
• Wrinkle Black Powdercoat

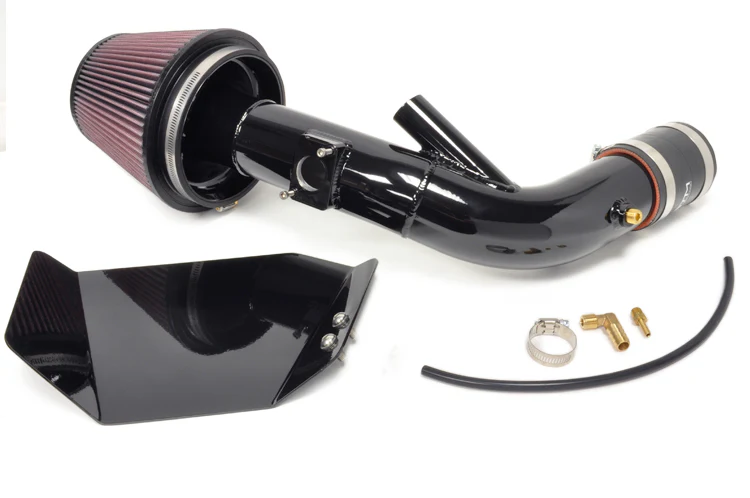

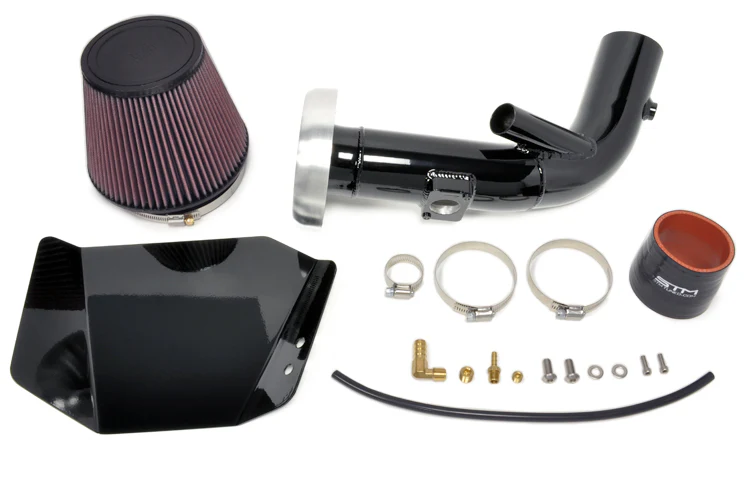

Kit Includes:	Install Notes:
(1) 6" K&N Filter (RU-1036)

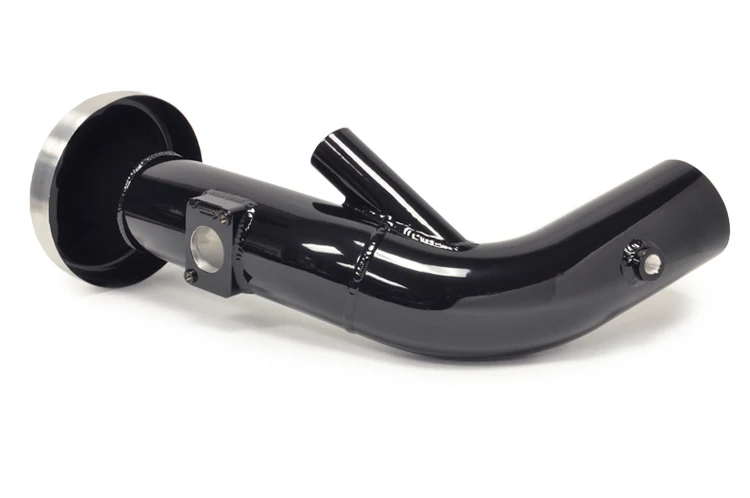

(1) STM Aluminum Pipe
(1) STM Aluminum Heatshield
(1) 1.75" Worm Clamp for BOV
(2) Worm Clamps for Coupler	(2.75" & 3" for Stock Turbo or Two 3" for Upgraded)
(1) STM Silicone Coupler	(2.75" to 3" Reducing for Stock Turbo or 3" for Upgraded)
(1) 1/4" NPT to 1/2" Barb 90° Brass Fitting	(Used for valve cover vent tube)
(1) 1/4" NPT Block-Off Brass Fitting	(Optional. Used when not venting valve cover)
(1) 1/8" NPT Barb Brass Fitting	(Used for boost control return line)
(1) 1/8" NPT Block-Off Brass Fitting	(Optional. Used when not returning boost control line)
(2) M8 1.25x20 Button-Head Stainless Allen Bolts	(For mounting Heat Shield to frame-rail)
(2) M8 Stainless Flat Washers	(For Heat Shield bolts)
(2) 10-32 x 5/8 Stainless Allen Bolts	(For MAF Flange)
(1) One Foot 6mm Silicone Vacuum Hose	(For relocating BOV)
