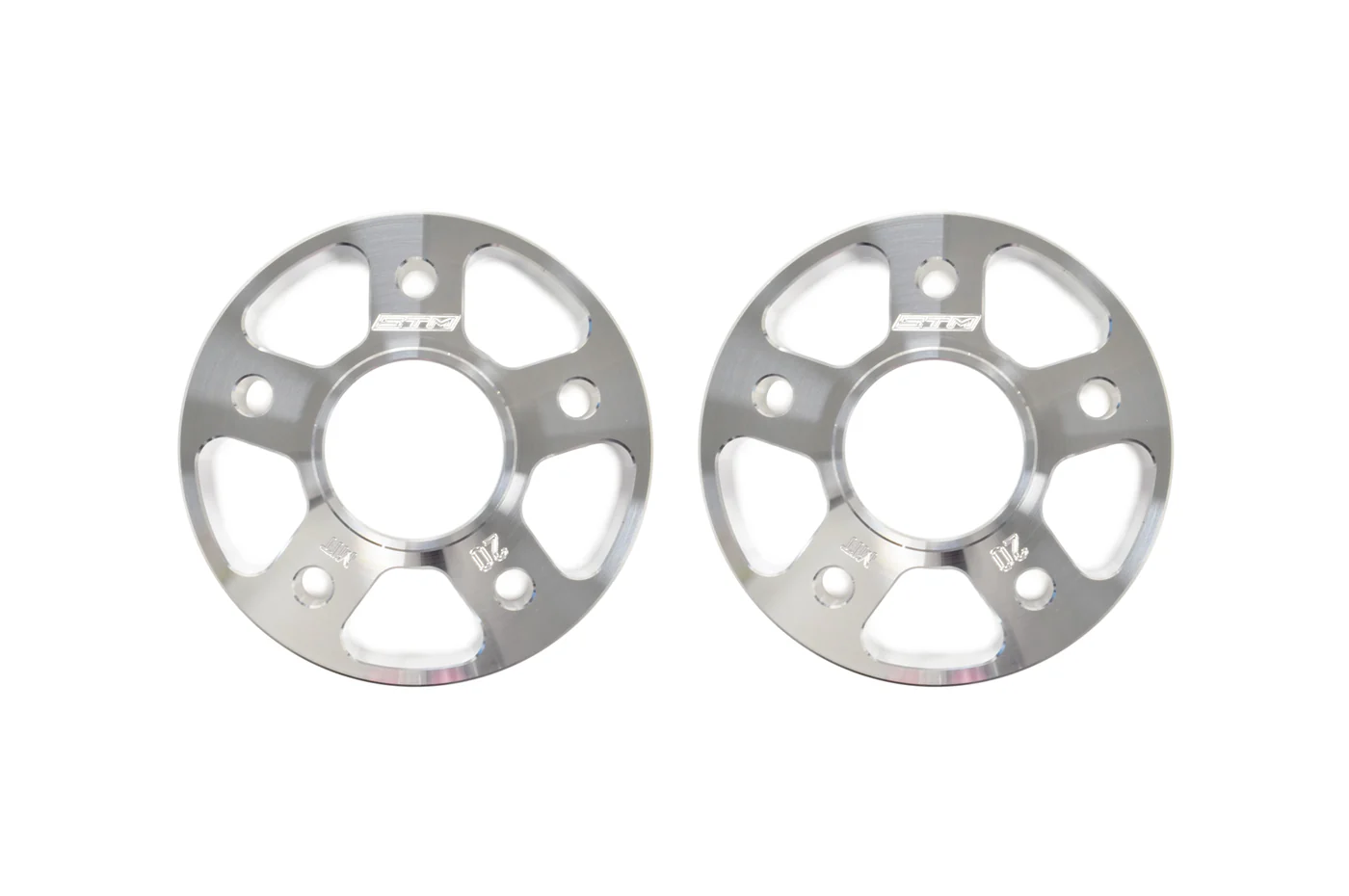

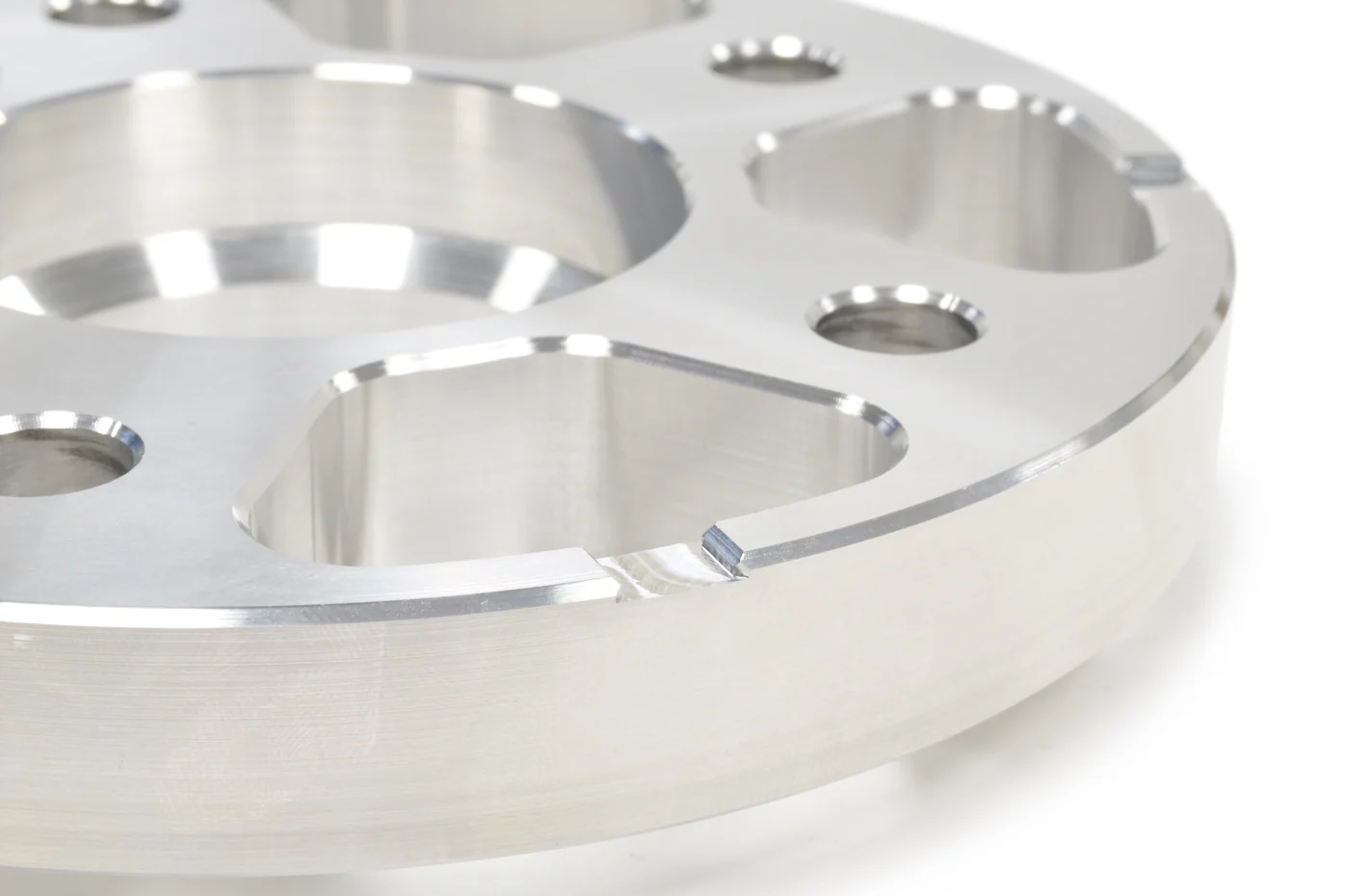

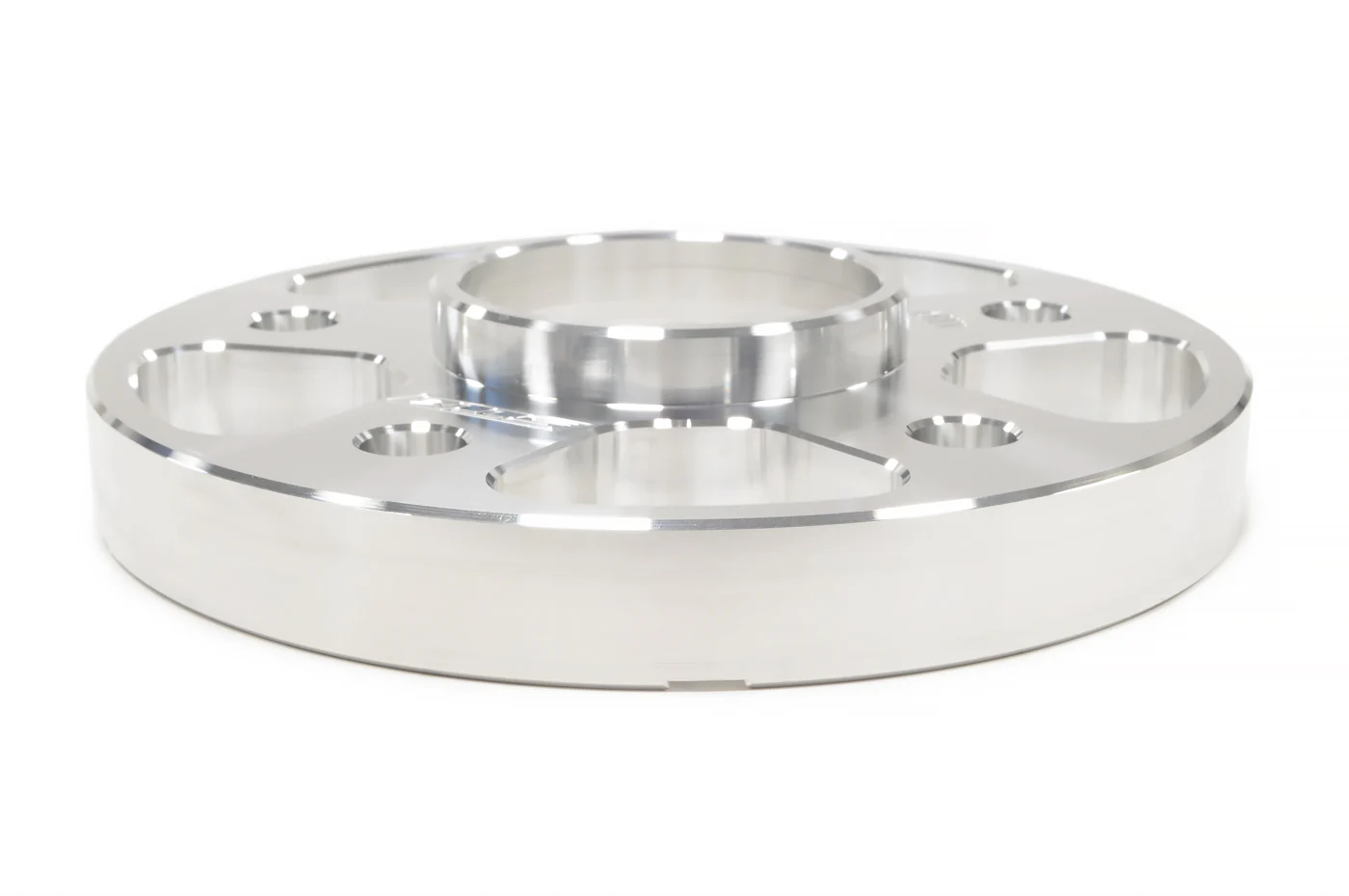

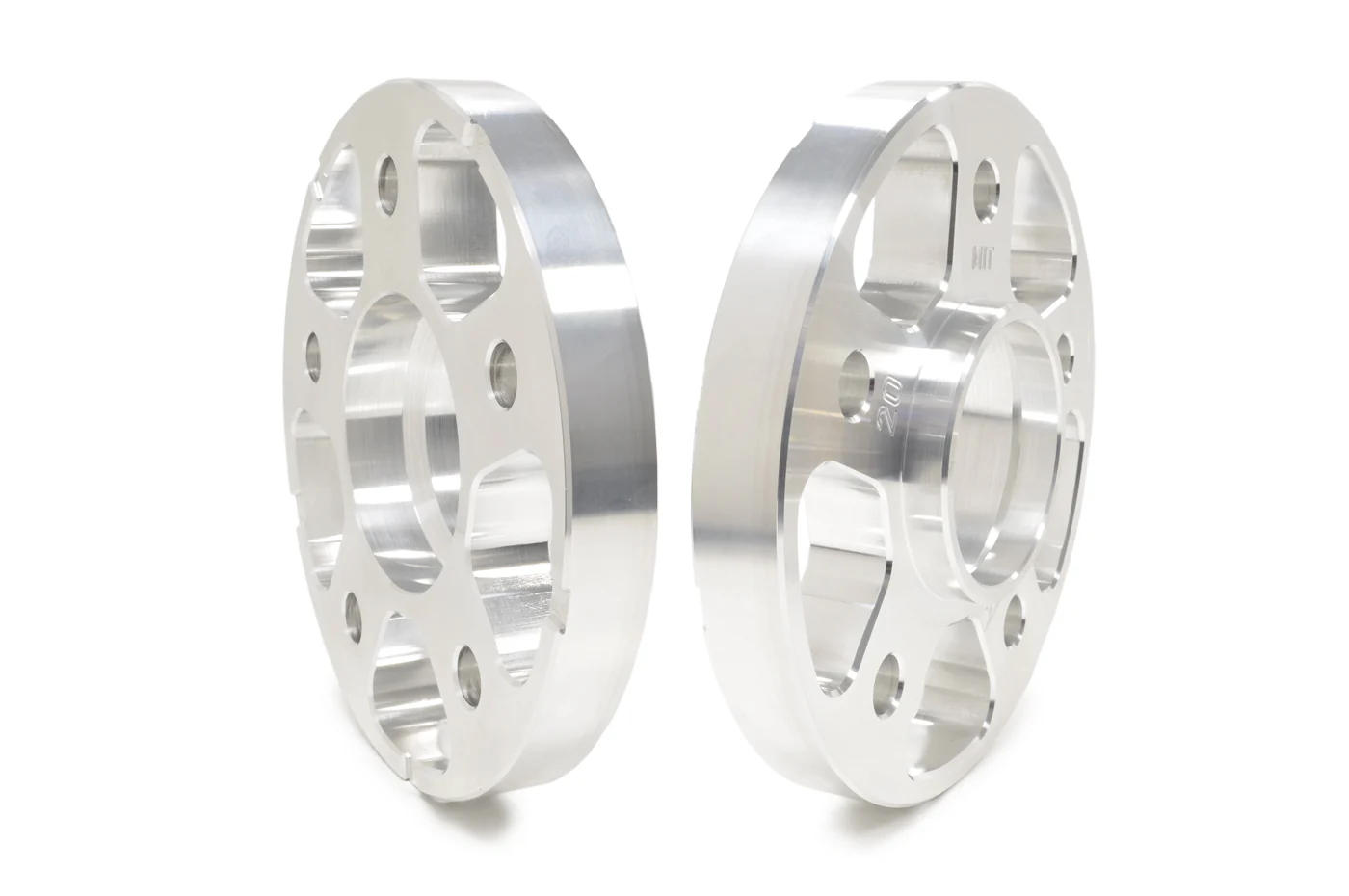

STM 20mm Wheel Spacers for Mitsubishi Evo DSM 3S

STM 20mm wheel spacer kit for DSM, Evo, GVR4 and 3000GT/Stealth can be used on the front or rear. The spacers have a 5x114.3 bolt-pattern with a 67.1mm hub. Elongated wheel studs are required when running these spacers so we offer the ARP 100-7717 M12x1.5 studs to match if you don't already have them.

Wheel Fitment:
• Elongated wheel studs ARE required when running these spacers!
• Available with or without ARP studs.
• For stock wheels, these Open-Ended Lug Nuts are recommended.

Vehicle Fitment:
• Mitsubishi Evolution I-X
• 1990-1999 Eclipse GST/GSX
• 1990-1998 Talon TSi
• 1990-1994 Laser RS
• 1991-1992 Galant VR4
• 1991-1999 3000GT
• 1991-1996 Stealth

Wheel Spacer Specs:
• 20mm Spacer
• 5x114.3 bolt pattern
• 67.1mm hub side

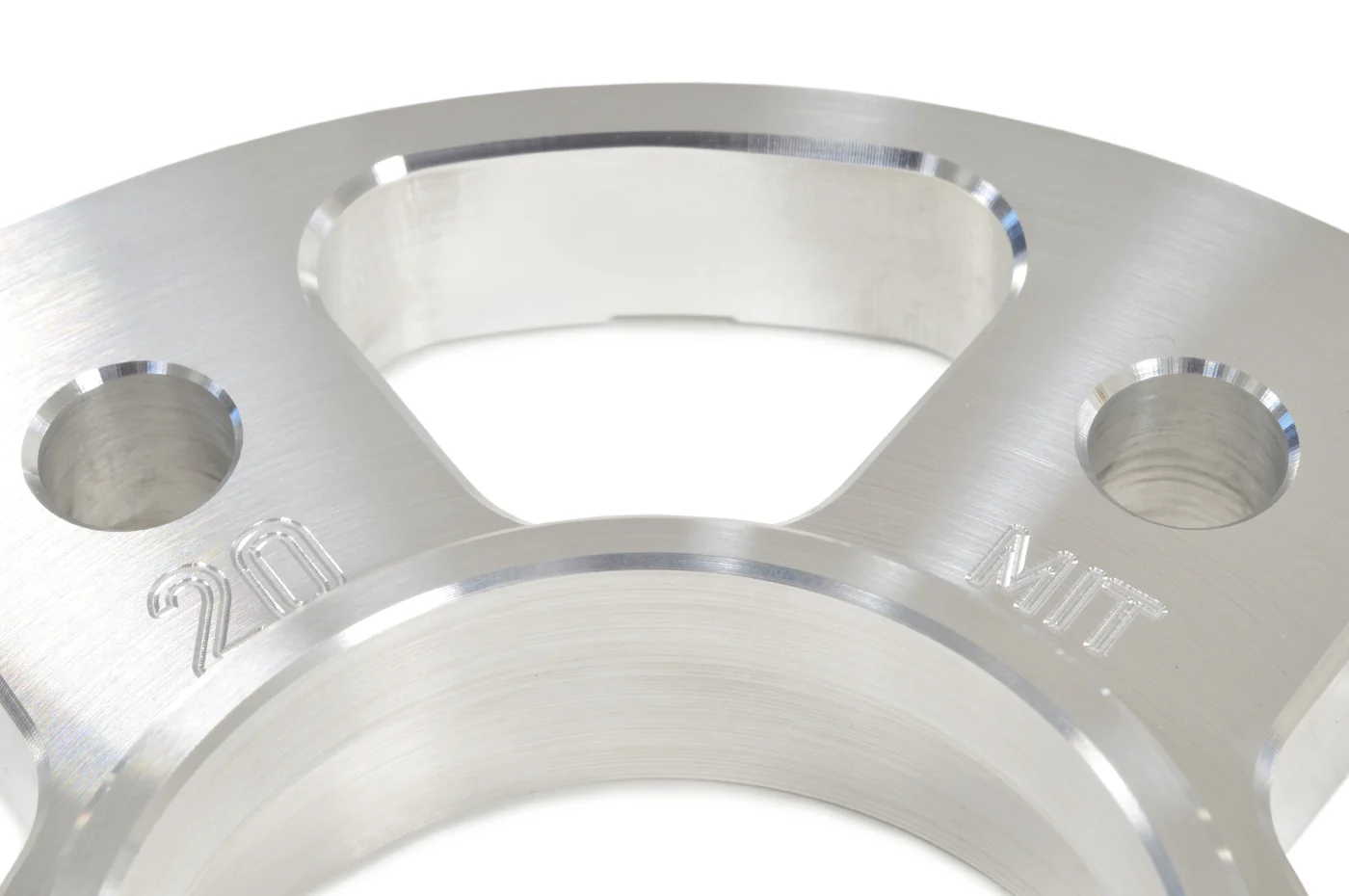

• 20mm size clearly marked
• Lightweight (19.6 oz each)
• Recessed for easy removal
• Billet T6 6061 aluminum

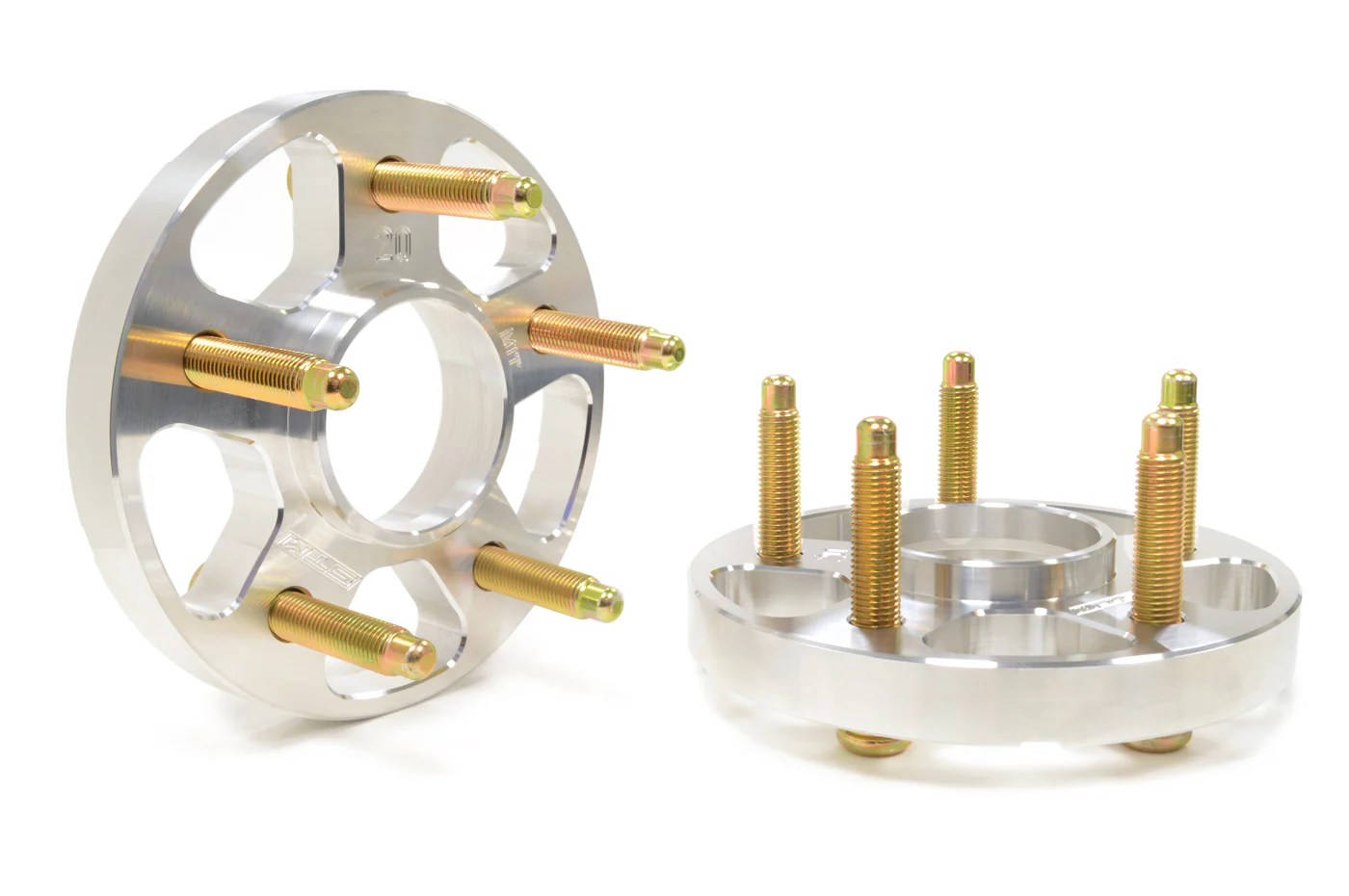

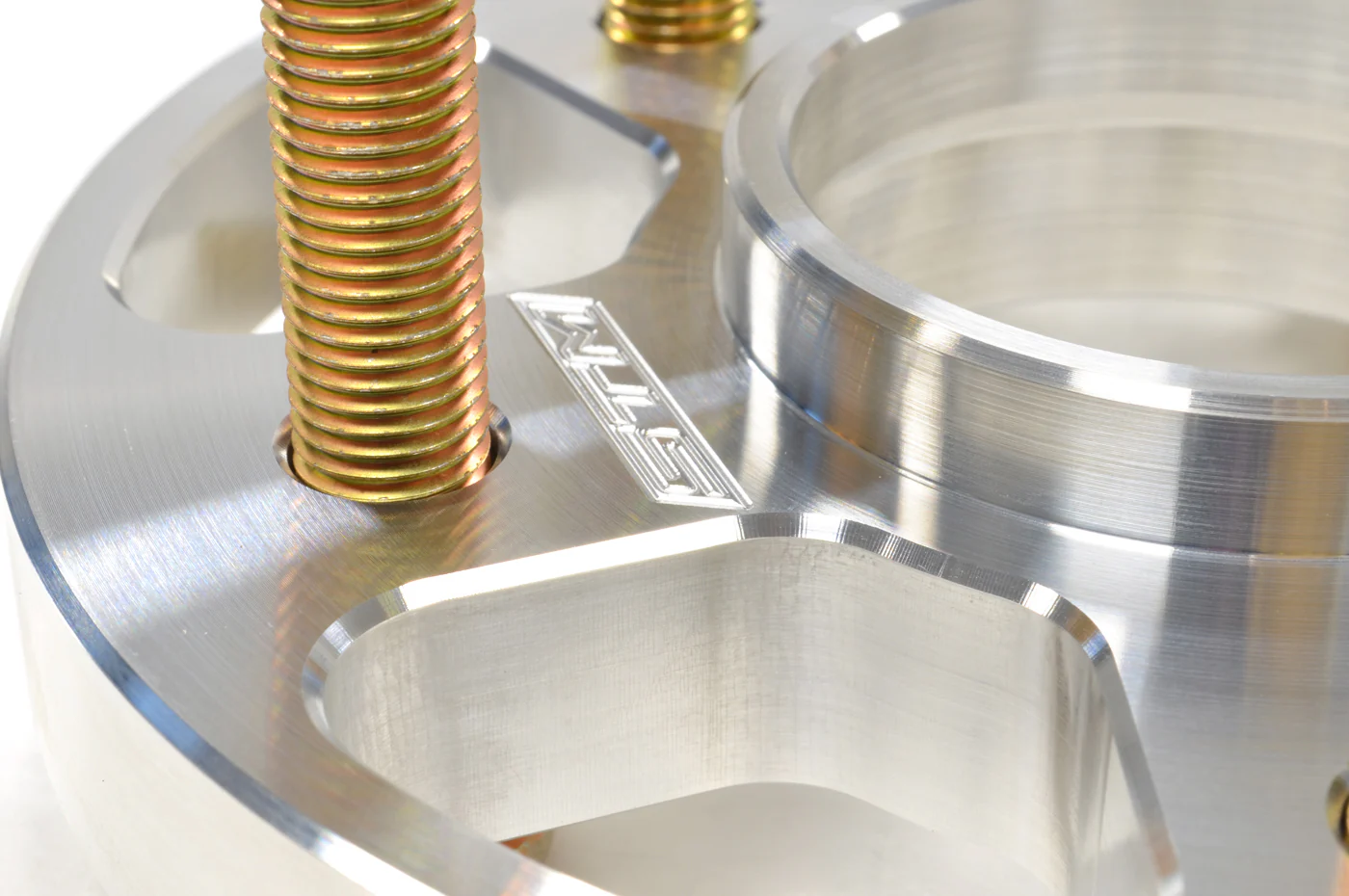

ARP (100-7717) Wheel Stud Specs:
• M12 x 1.5 Thread
• 0.565" Knurl Diameter
• 3.00" UHL
• 0.27" Knurl Length
• 0.35" Nose Length

Additional Fitments:
The wheel spacers (without studs) will also fit the vehicles below, but you will need to research and source your own elongated wheel studs. Elongated wheel studs ARE required when running these spacers!
• 2005-2016 Mitsubishi Lancer
• 2000-2012 Mitsubishi Eclipse
• 1994-1995 Mazda RX7
• 2004-2011 Mazda RX8
• 1995-2003 Mazda Protege
• 2004-2016 Mazda Mazda 3
• 2007-2010 Mazda Mazda 5
• 2007-2016 Mazda Mazda 6
• 2008-2016 Mazda MX5 Miata
• 2010-2016 Hyundai Genesis
