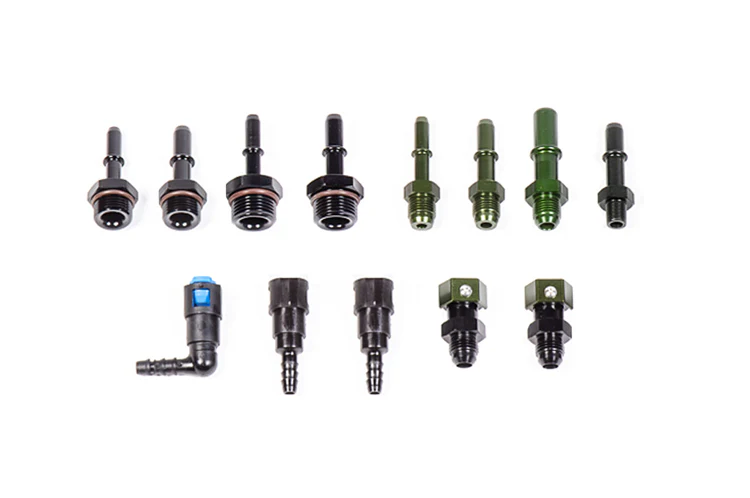

Radium SAE Quick Connect Adapter Fittings
Radium SAE adapter fittings are available in 5/16", 3/8", and 1/2" sizes. They push-on and secure to most modern USA, European and Japanese fuel injection systems and are used to convert an OEM SAE Quick Connect connection.
Vehicle Fitment:
Universal Application
Includes:
(1) Adapter Fitting
Full Description:
These adapter fittings are available in 5/16", 3/8", and 1/2" sizes. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connection.

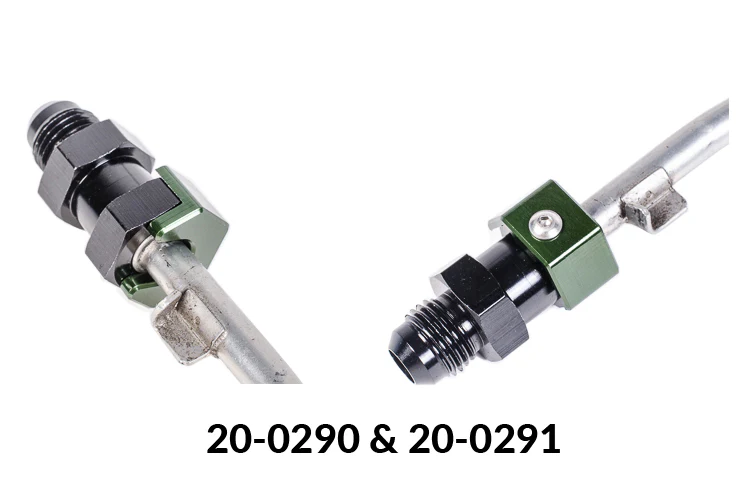

The unique Radium Engineering adapter (20-0290 and 20-0291) interfaces with a SAE Quick Connect male fitting in an ultra-low profile manner. The design uses a dual viton O-ring seal for a leak free connection. The retaining clip is held on with a stainless steel screw and is easily and quickly serviced.

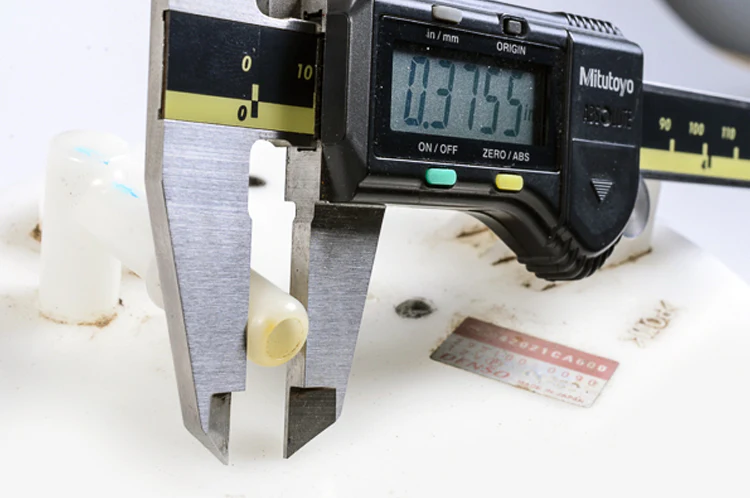

To determine the required SAE size, simply measure the outside diameter of the male fitting as shown in the photos.
• 0.3125 = 5/16"
• 0.375 = 3/8"
• 0.50 = 1/2"
Important Install Notes:
Always lubricate the mating O-rings with a light amount of oil prior to installing.
| Image | Part Number | SAE Size | to |
 |
14-0367 | 5/16" SAE Male | 8AN ORB |
 |
14-0368 | 3/8" SAE Male | 8AN ORB |
 |
14-0337 | 5/16" SAE Male | 10AN ORB |
 |
14-0338 | 3/8" SAE Male | 10AN ORB |
 |
14-0146 | 5/16" SAE Male | 6AN Male |
 |
14-0147 | 3/8" SAE Male | 6AN Male |
 |
14-0231 | 1/2" SAE Male | 6AN Male |
 |
14-0358 | 3/8" SAE Male | 1/8 NPT Male |
 |
14-0227 | 3/8" SAE Female | 90° 5/16" Barb |
 |
14-0253 | 3/8" SAE Female | 5/16" Barb |
 |
14-0453 | 5/16" SAE Female | 3/8" Barb |
 |
20-0290 | 5/16" SAE Female | 6AN Male (Low Profile) |
 |
20-0291 | 3/8" SAE Female | 6AN Male (Low Profile) |
