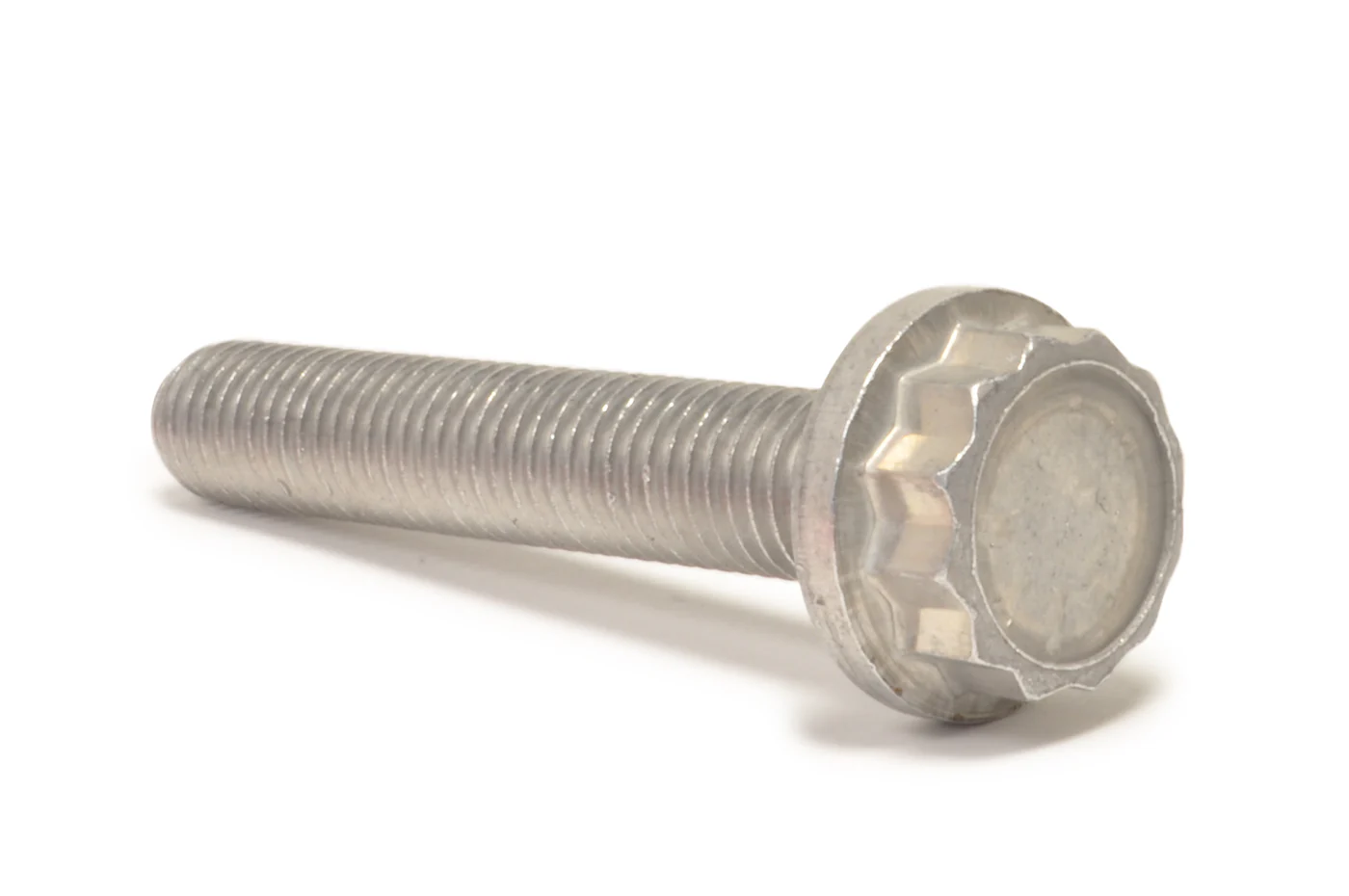

OEM Audi Aluminum Transmission Mounting Bolts for 17+R8 / Huracan

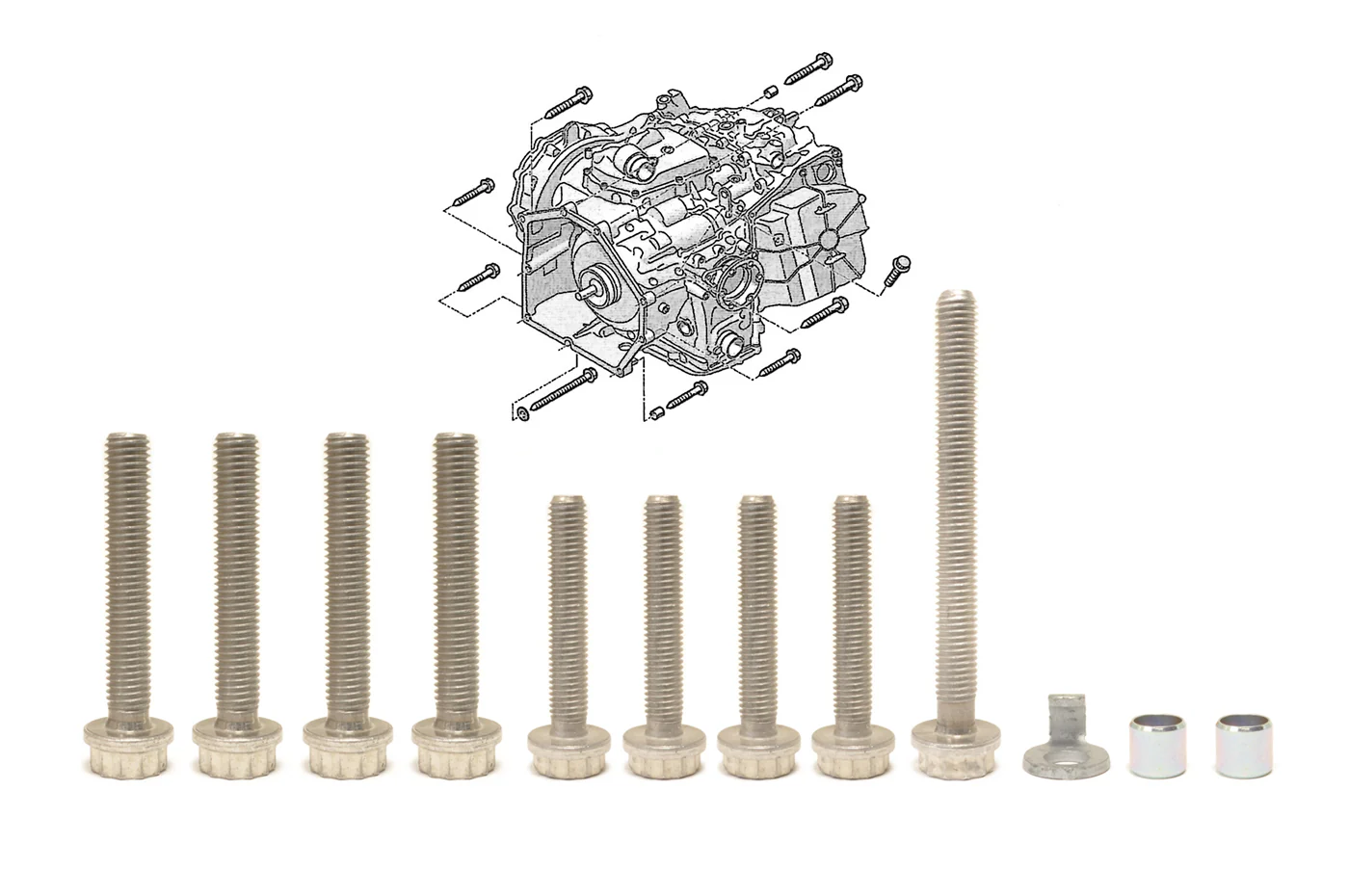

Genuine OEM Audi/Lamborghini transmission to engine mounting bolts and hardware. These bolts are made from aluminum and are NOT to be reused. Luckily they are inexpensive and we offer them as a full kit or individually as needed.
Vehicle Fitment:
Lamborghini Huracan
2017-2023 Audi R8
Part Number Variations:
N-911-295-01, N91129501
N-911-507-01, N91150701
N-911-293-01, N91129301
0B5-301-433, 0B5301433
086-301-153-A, 086301153A
Vehicle Fitment:
Lamborghini Huracan
2017-2023 Audi R8
Part Number Variations:
N-911-295-01, N91129501
N-911-507-01, N91150701
N-911-293-01, N91129301
0B5-301-433, 0B5301433
086-301-153-A, 086301153A

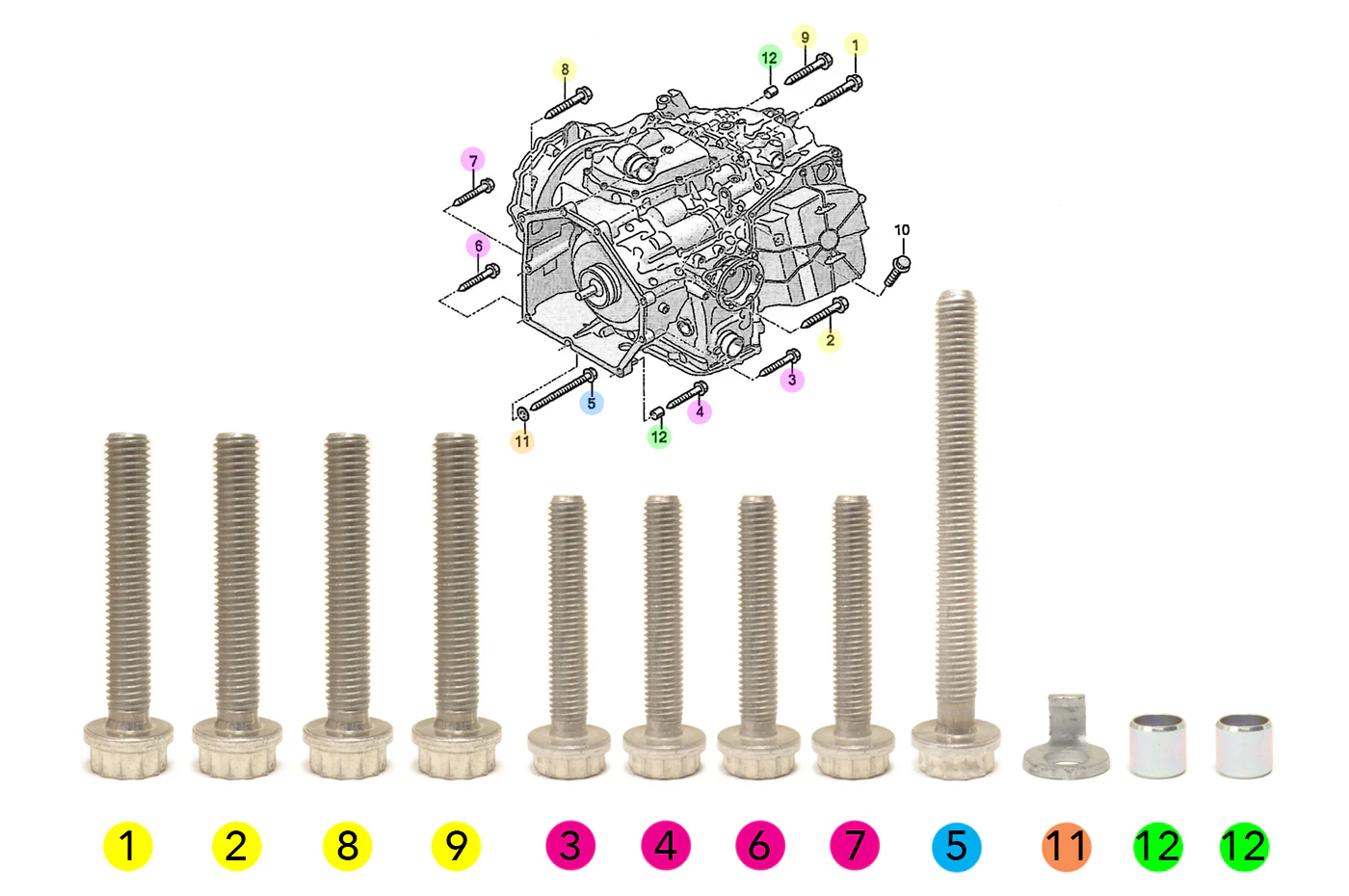

| Mounting Transmission to Engine: | ||
| Diagram & Part Number: | Specs: | Nm: |
|
1/2/8/9 (Yellow) N91129501 |

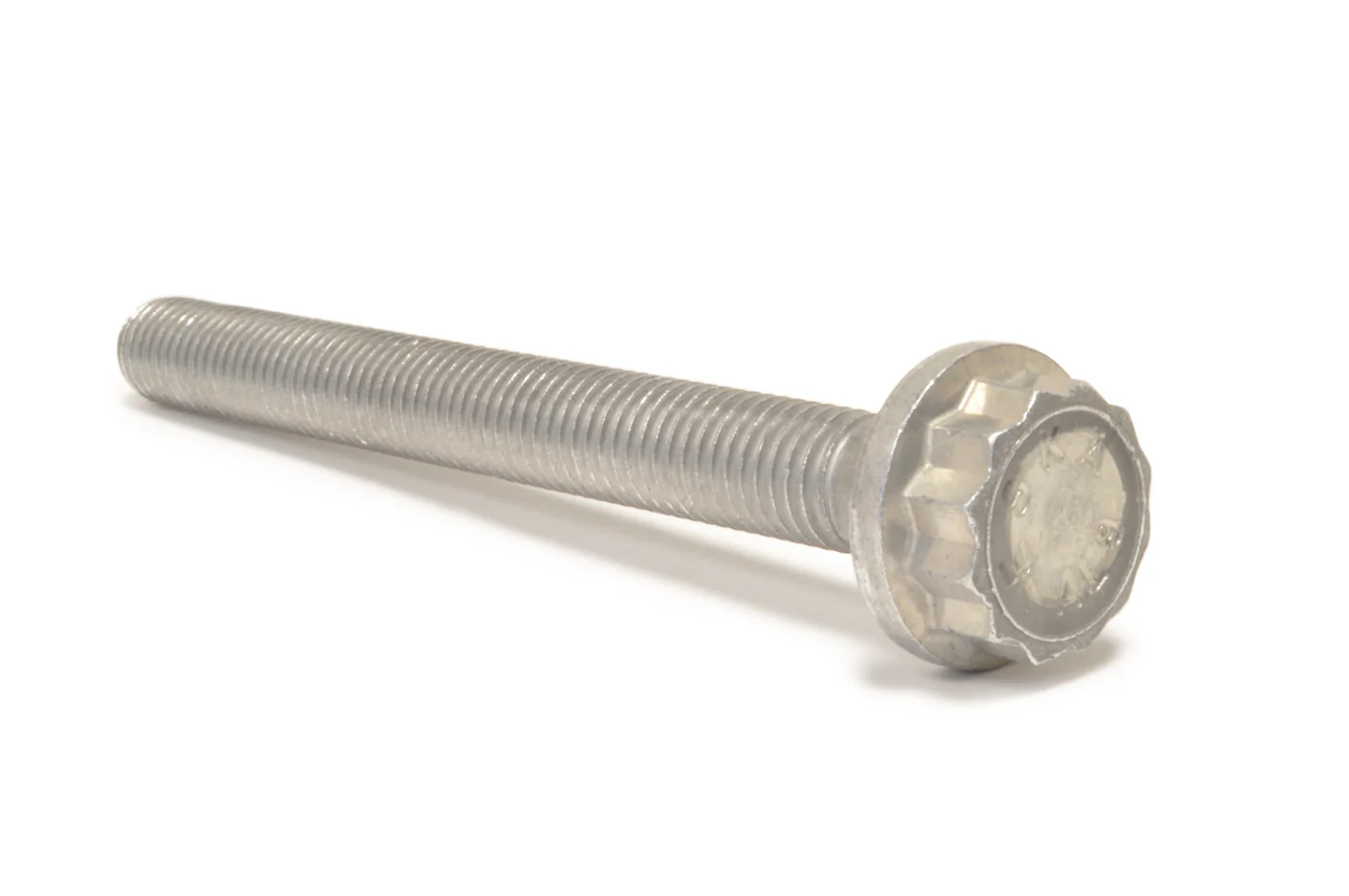

M12x75 Bolt* | 30+90° |
|
3/4/6/7 (Pink) N91150701 |

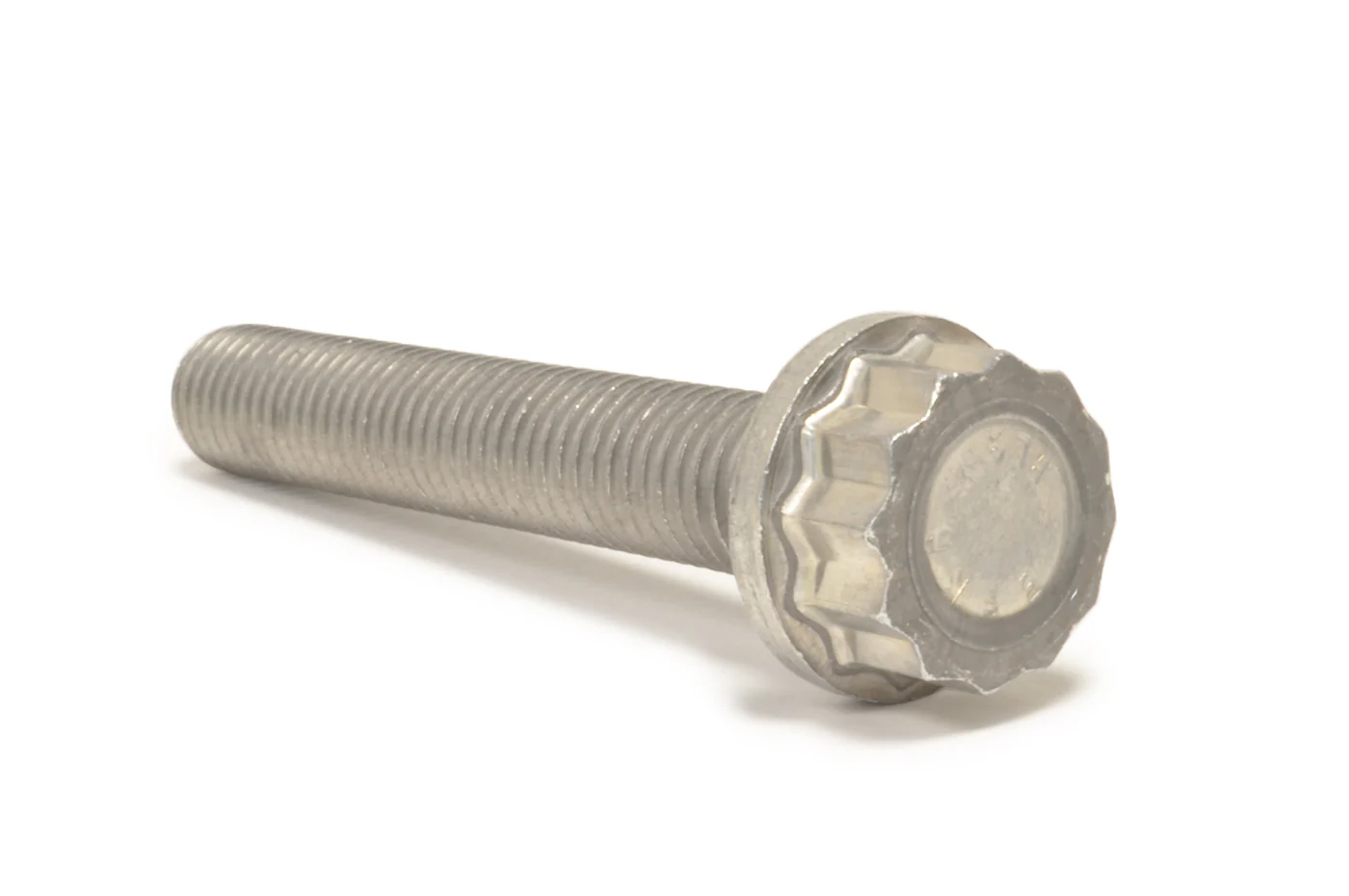

M10x60 Bolt* | 15+90° |
|
5 (Blue) N91129301 |
M10x100 Bolt* | 15+90° |
|

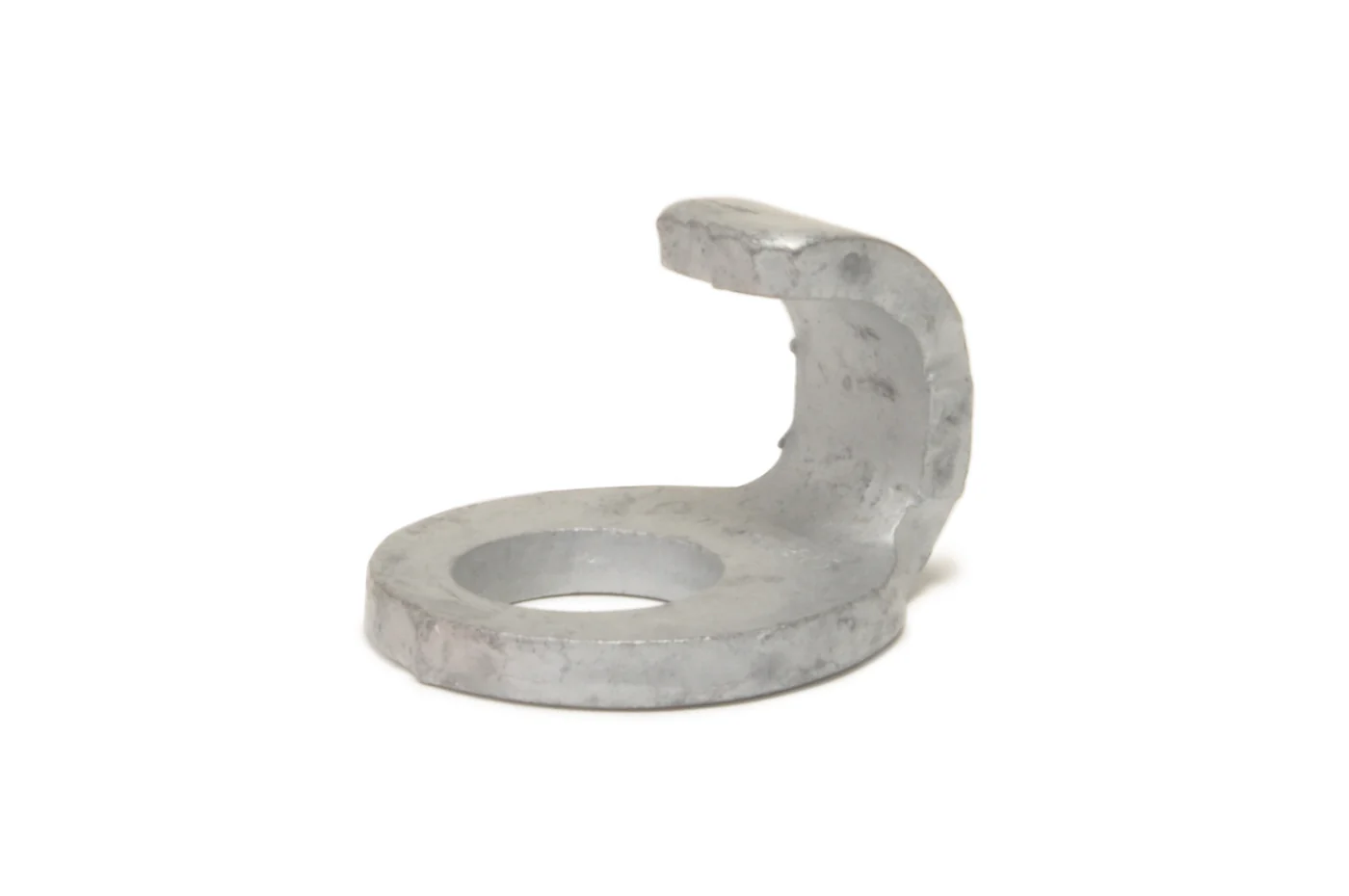

11 (Orange) 0B5301433 |
Ring (Anti-twist mechanism) | |
|

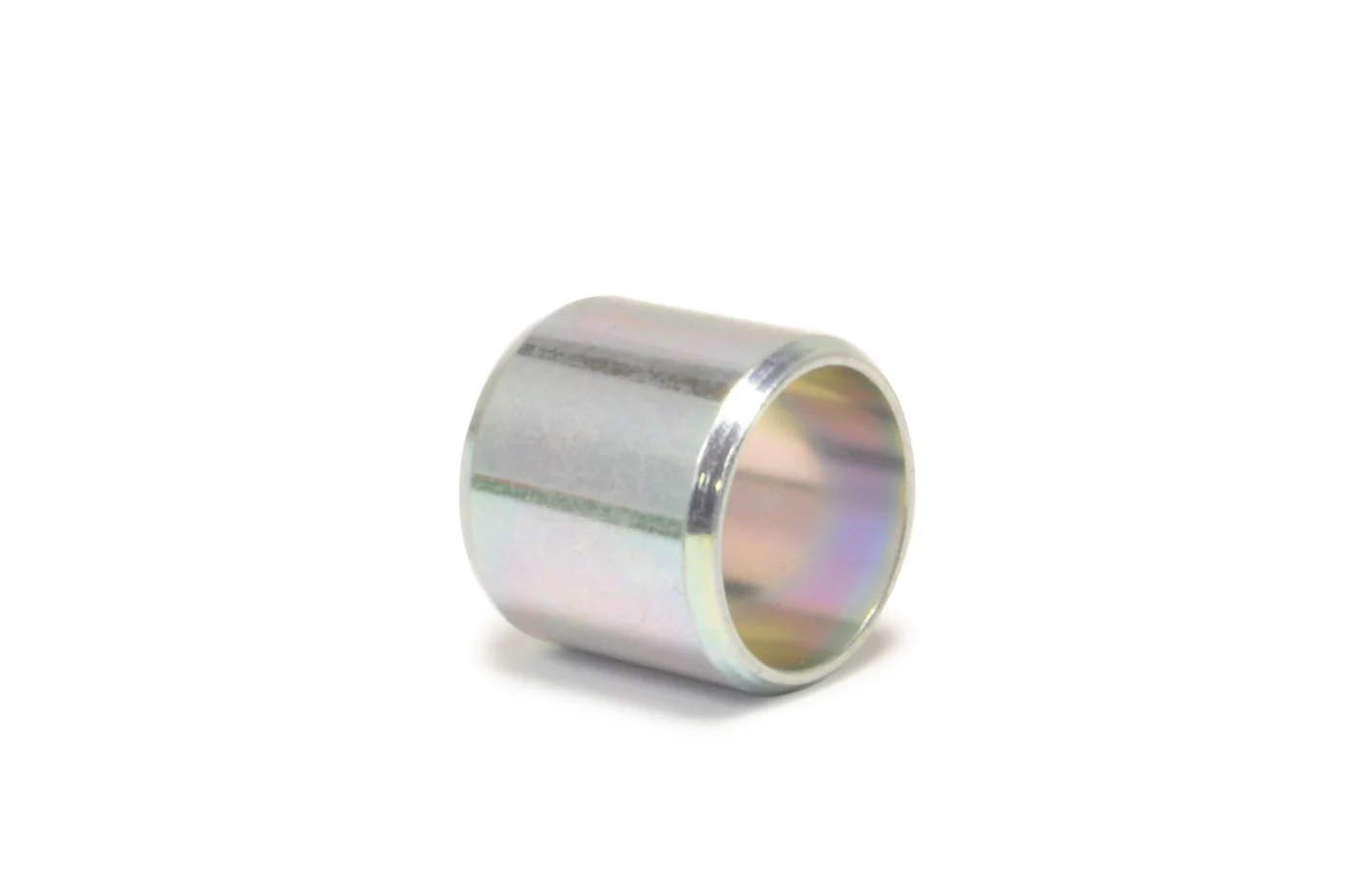

12 (Green) 086301153A |
Alignment Sleeves for centering | |
| * Aluminum bolts may only be used once. |
||
