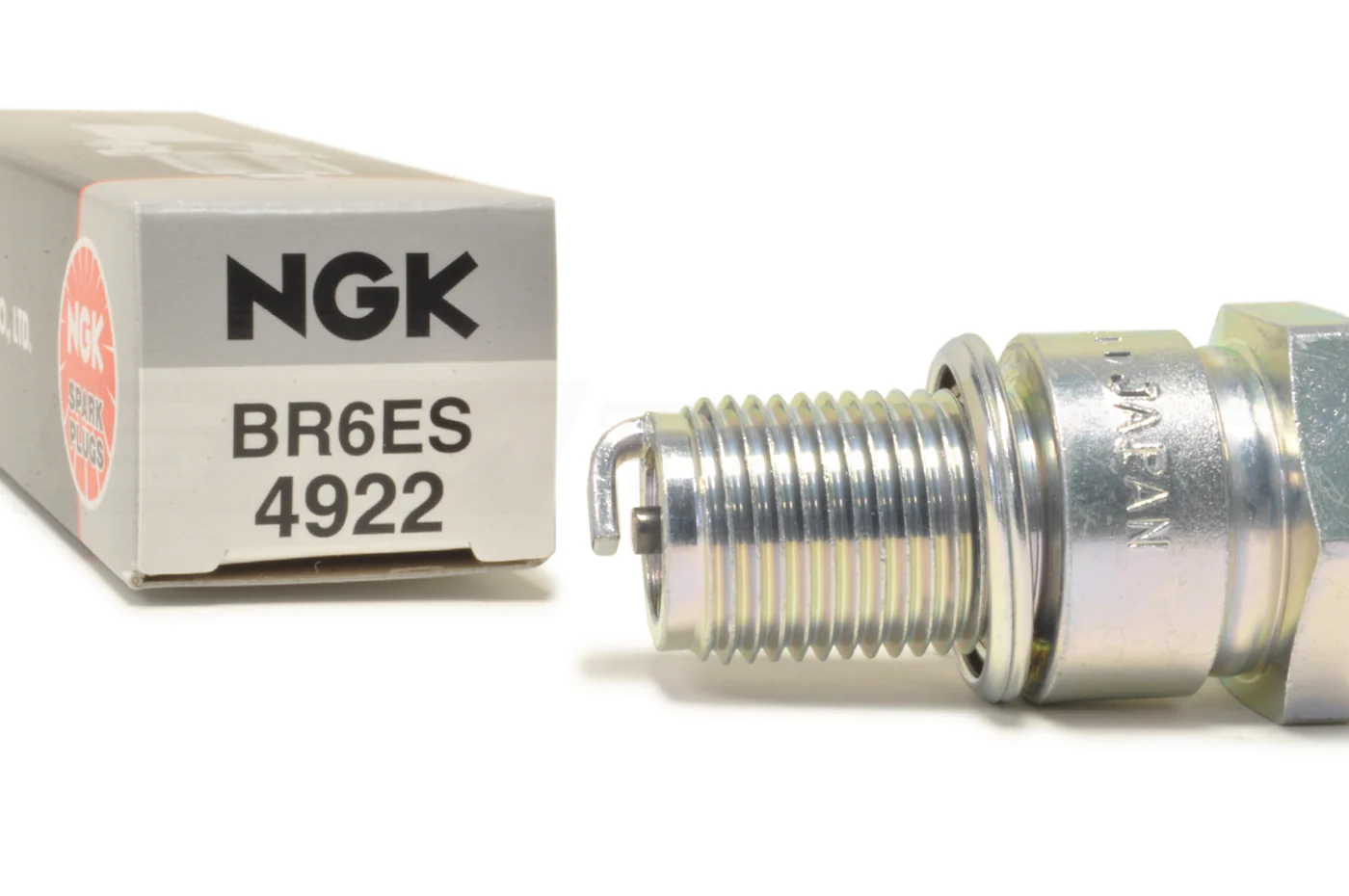

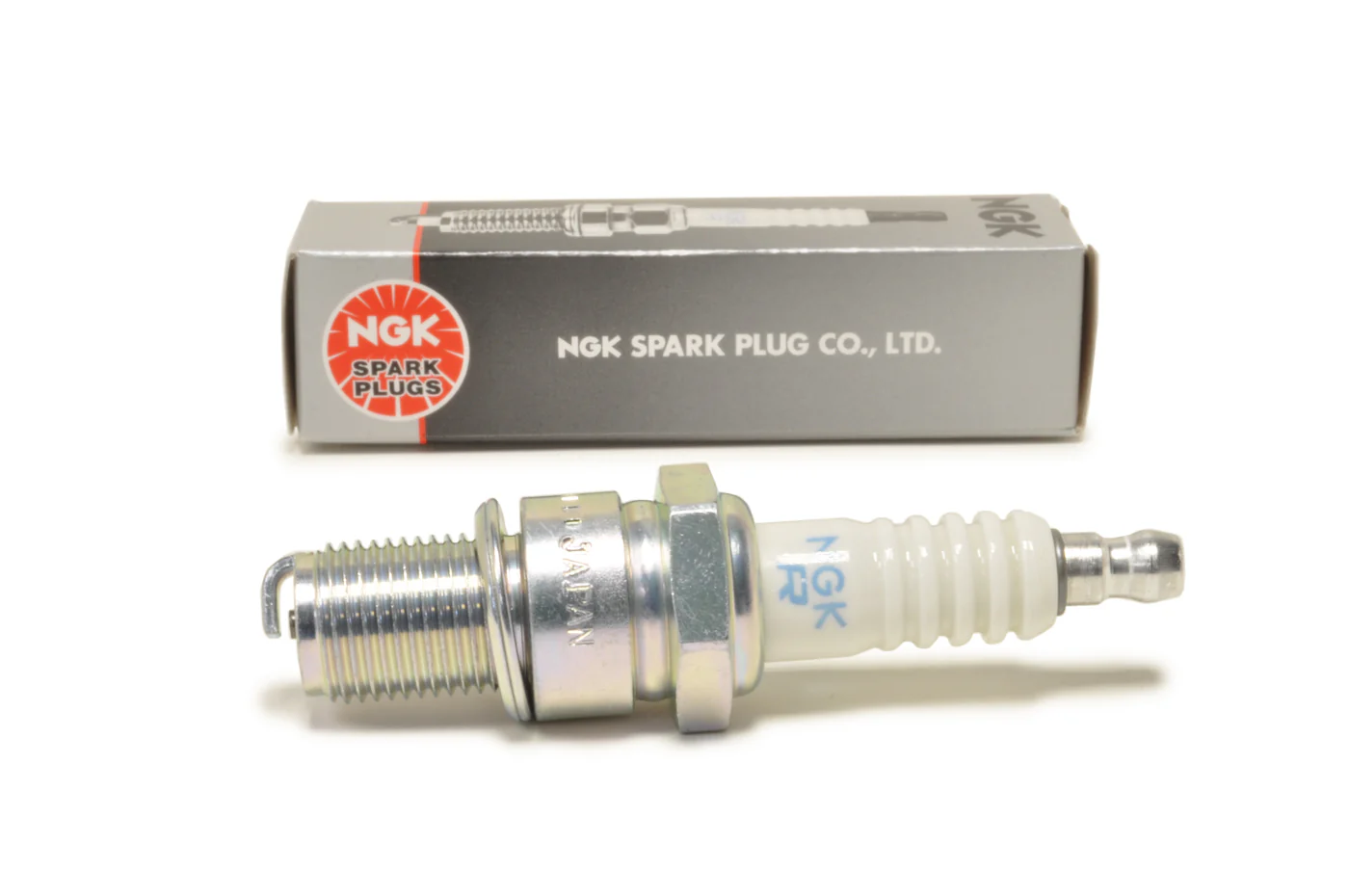

NGK BR6ES 4922 Standard Spark Plug Spark Plug for DSM

NGK BR6ES plugs are the factory replacement DSM plugs. These have a heat range of 6 and typically used for low boost, stock builds. Sold individually. Price is for one plug, please adjust quantity as needed.

Vehicle Fitment:
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR4

Part Number: BR6ES
Stock Number: 4922
Heat Range: 6
Thread Size: 14mm

Features:
• NGK standard plugs are constructed for longer life and optimum performance
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

Shell:
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 13/16" (21mm)
Terminal Type: Removable Nut
Overall Height: ISO
Gap: .035" (0.9mm

Center Electrode:
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Non-Projected

Ground Electrode:
Material: Nickel
Type: Standard
Quantity: 1

Specifications:
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 6
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
