Mitsubishi Turbo Hardware - Evo 4-9

Genuine OEM Mitsubishi factory replacement turbo hardware. We have chased these down for the last time! Now it's all here, nice and neat. Yes, those prices are correct and not a misprint.

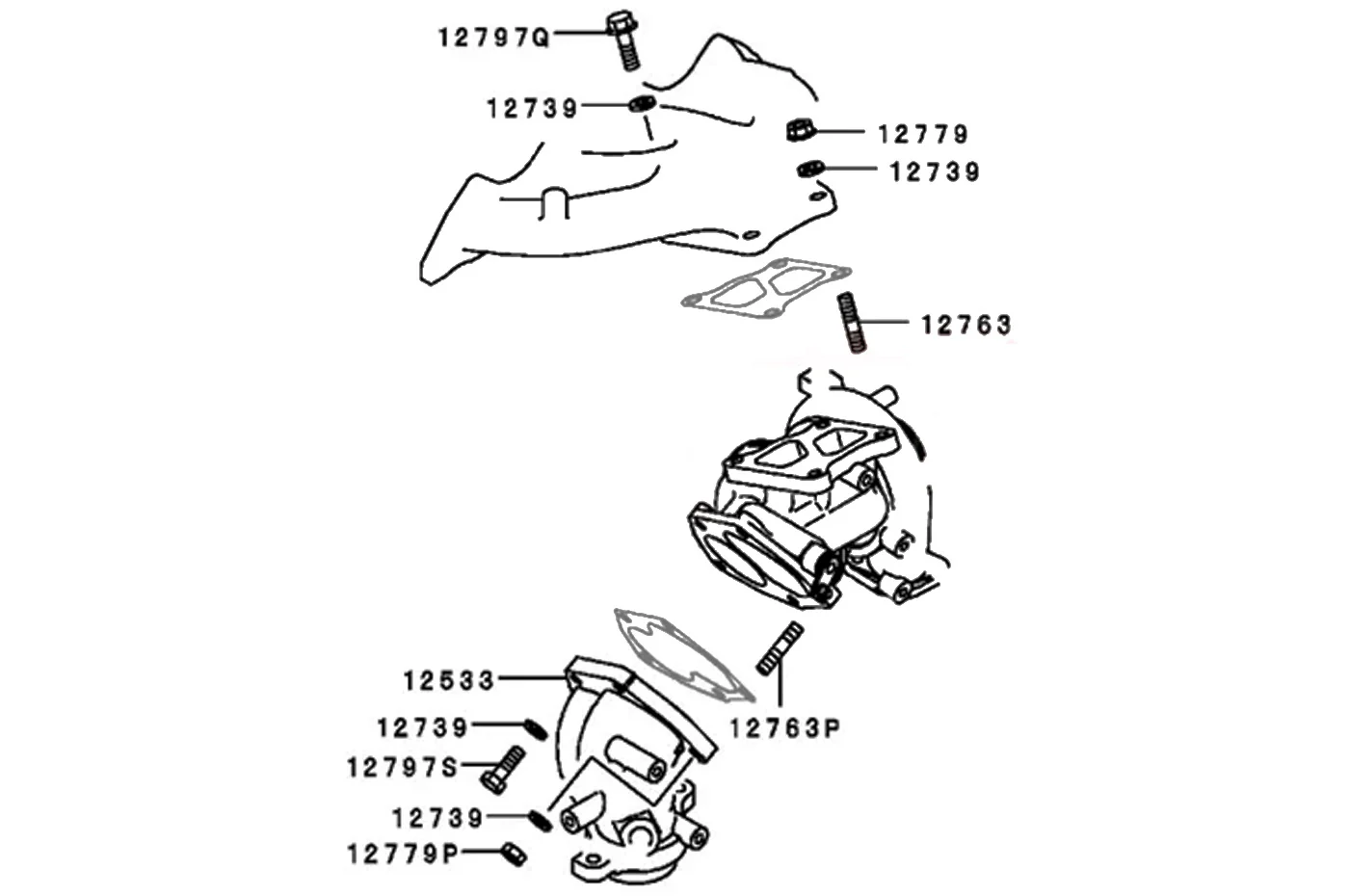

The OEM manifolds differ between the Evo 4/5/6/7 and Evo 8/9. Below, the Manifold studs and bolts are all available, just be sure you select which ones you need, noted below with *. Diagram pictured is for a 2005 Evo 8, but all years are very similar for reference.


For these Applications:
1996-2006 Mitsubishi Evolution IV V VI VII VIII IX



OEM Mitsubishi Evo 4/5/6/7/8/9 Turbo Hardware
Diagram PNC	Mitsubishi Part Number	Part	Quantity Used

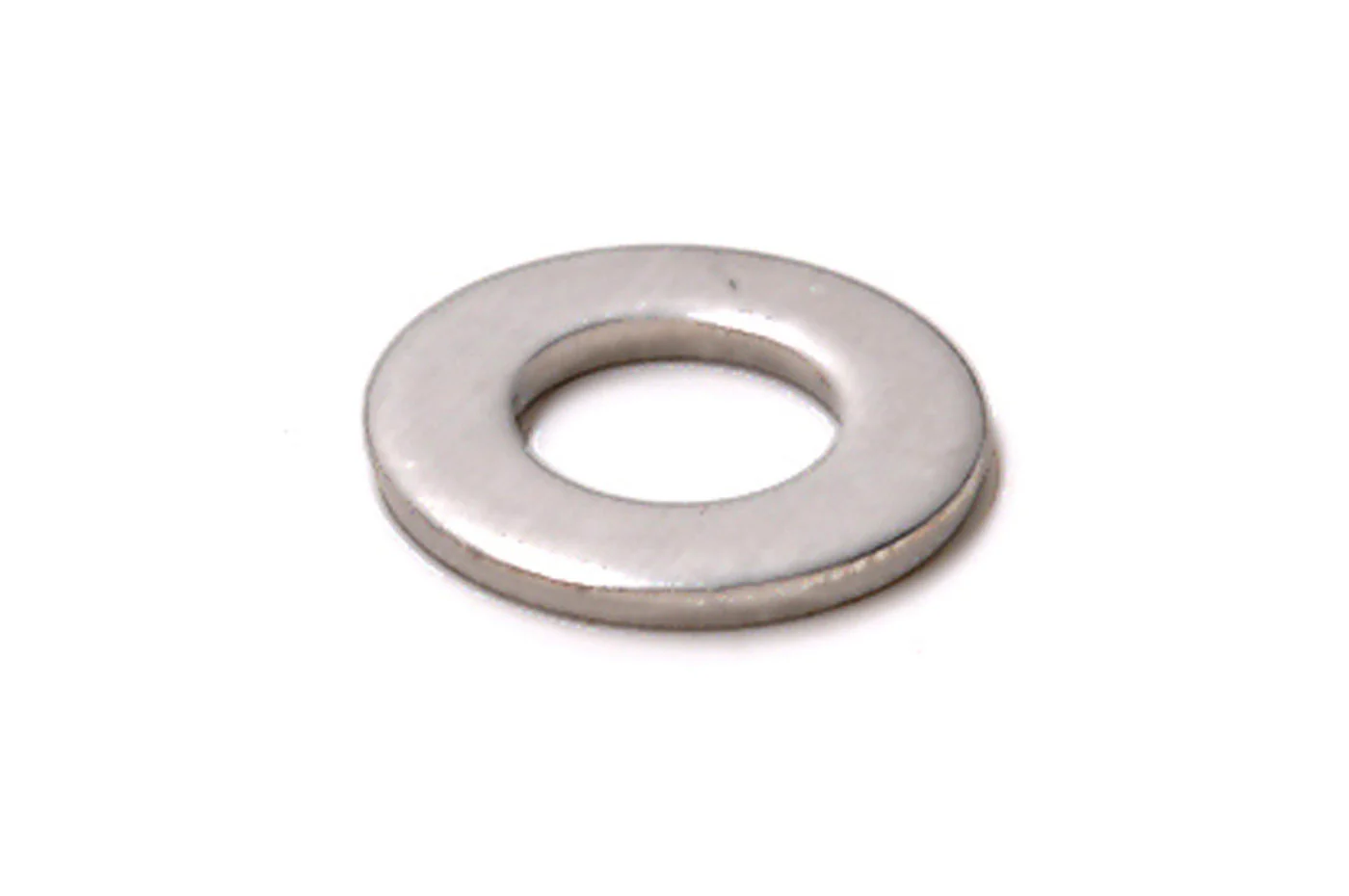

12739	MD132933	M10 Flat Washer	9

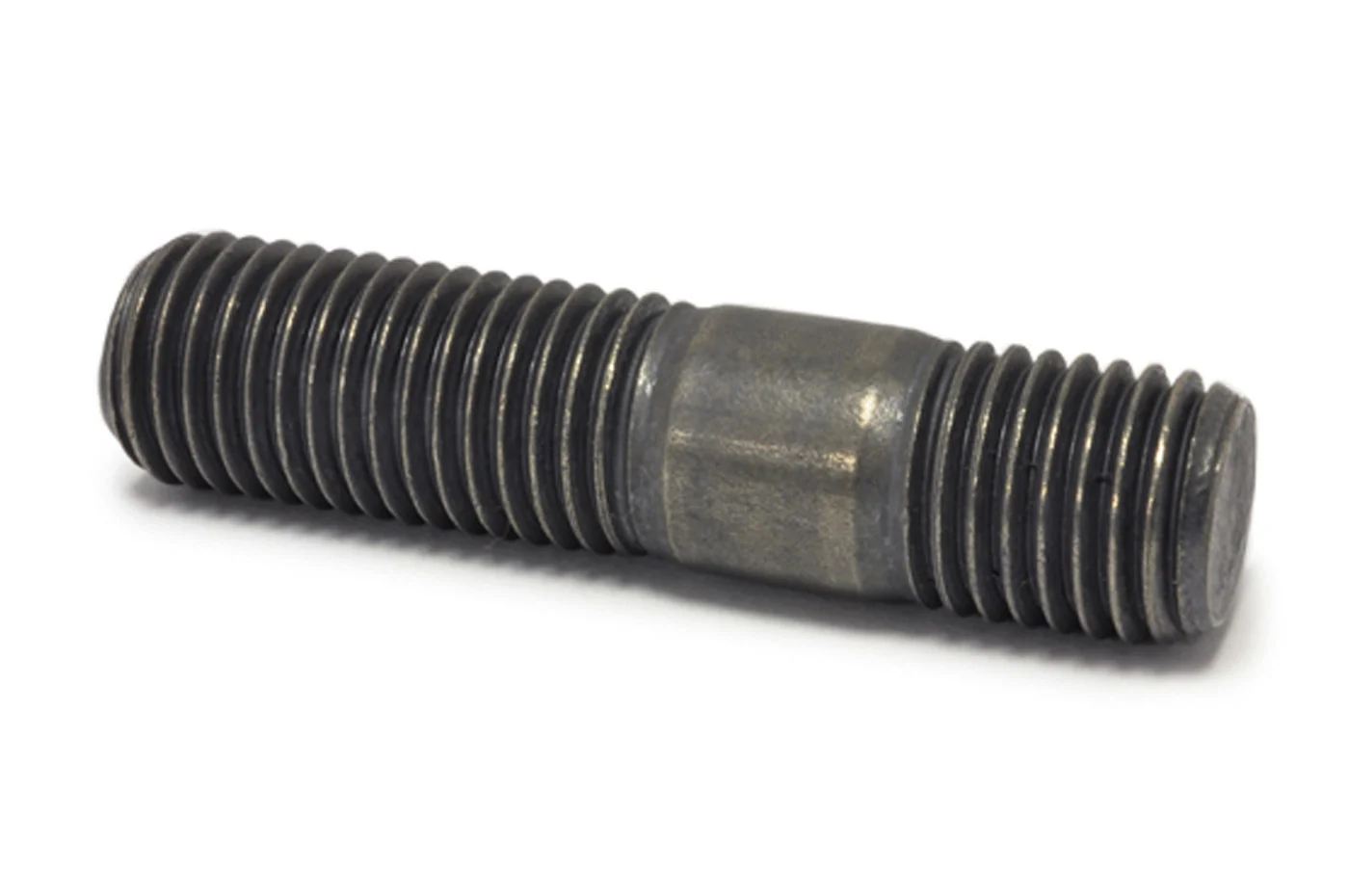

*12763	MN119784 MD165887 (old pn)	M10x32 Manifold to Turbo Stud (Evo 4-9)	2

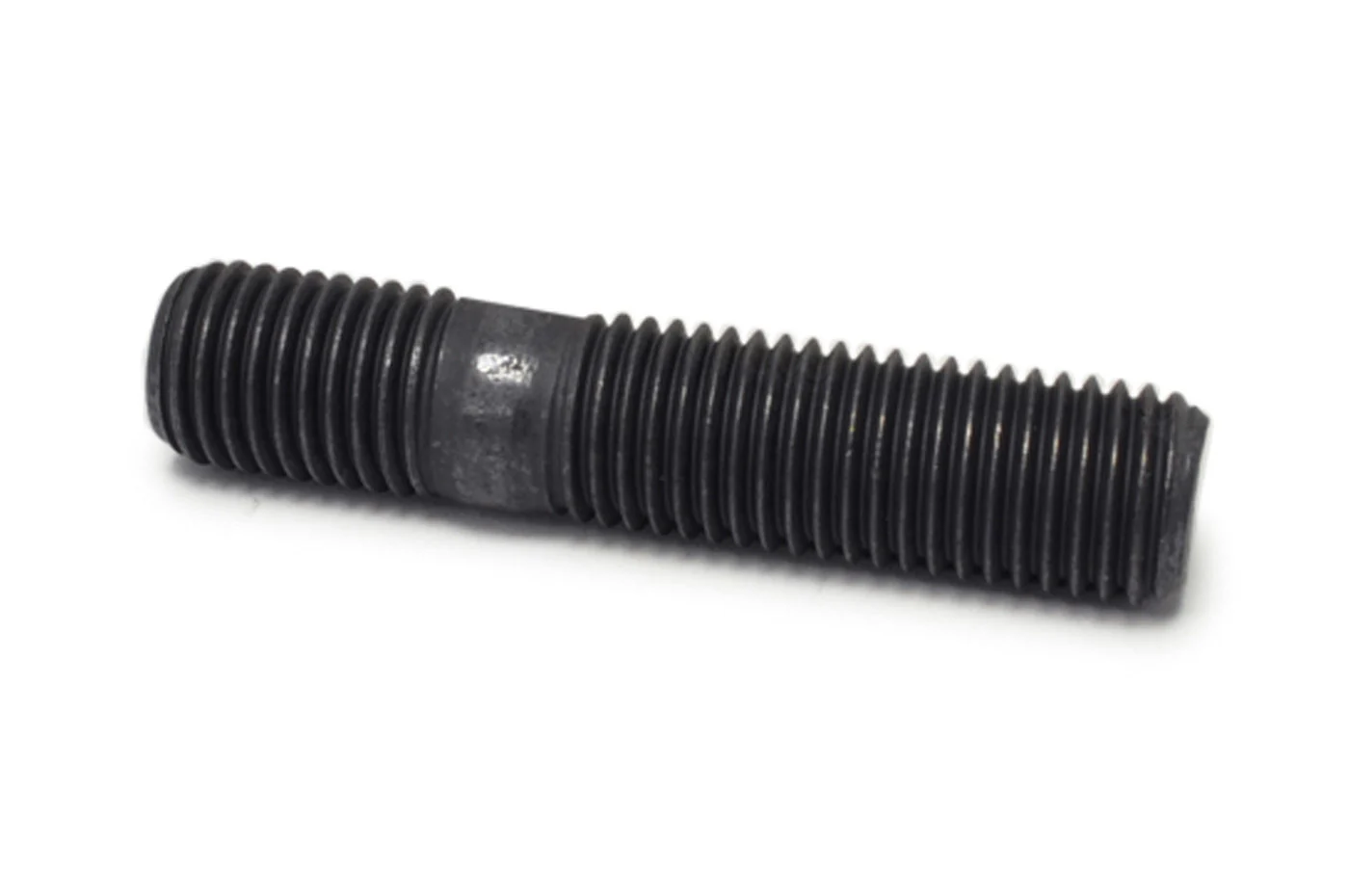

12763P	MR224441	M10x30 Turbo to O2 Housing Stud	2

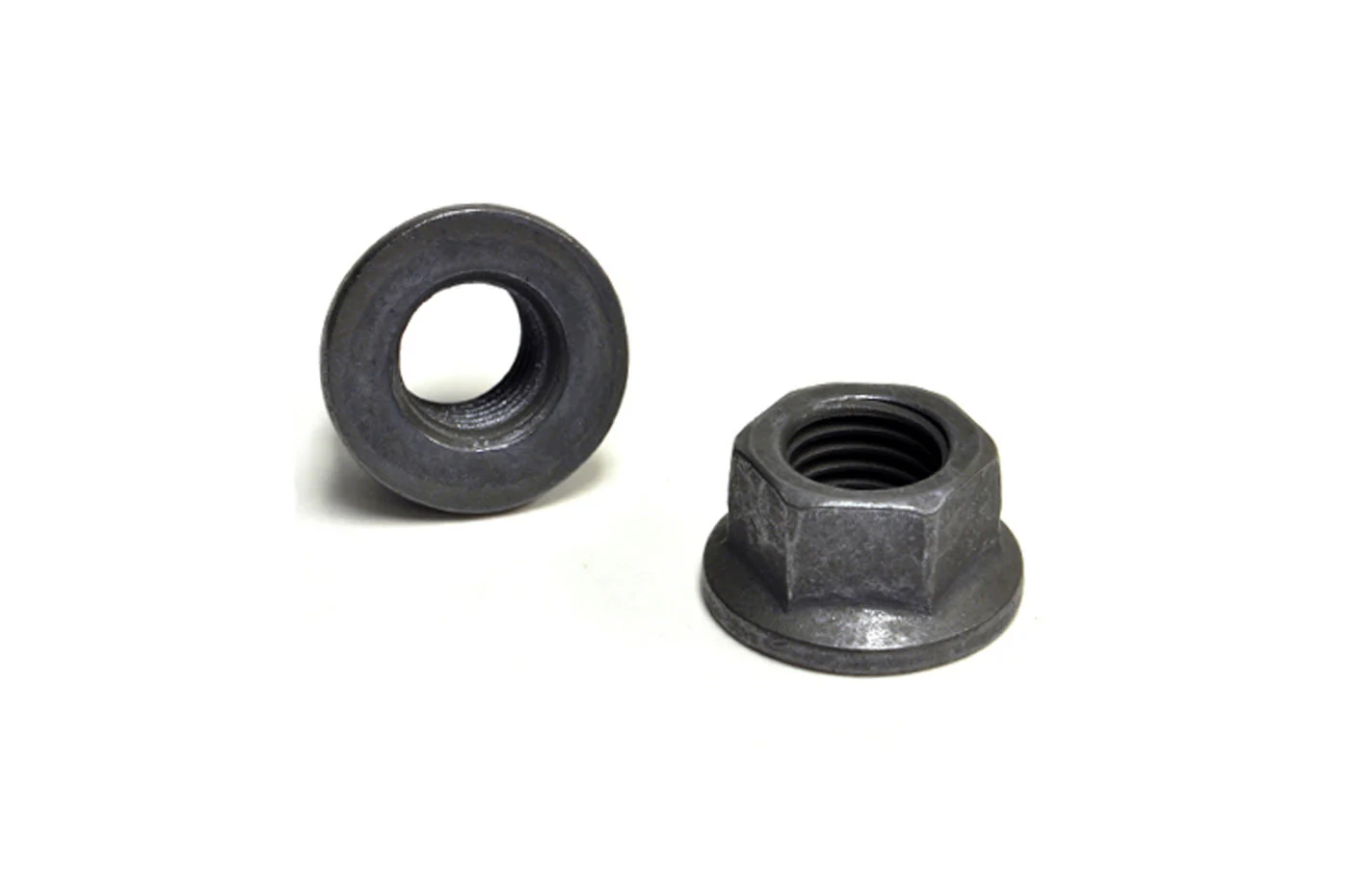

12779	MD132930	M10 Turbo Nut (Flange Style)	2

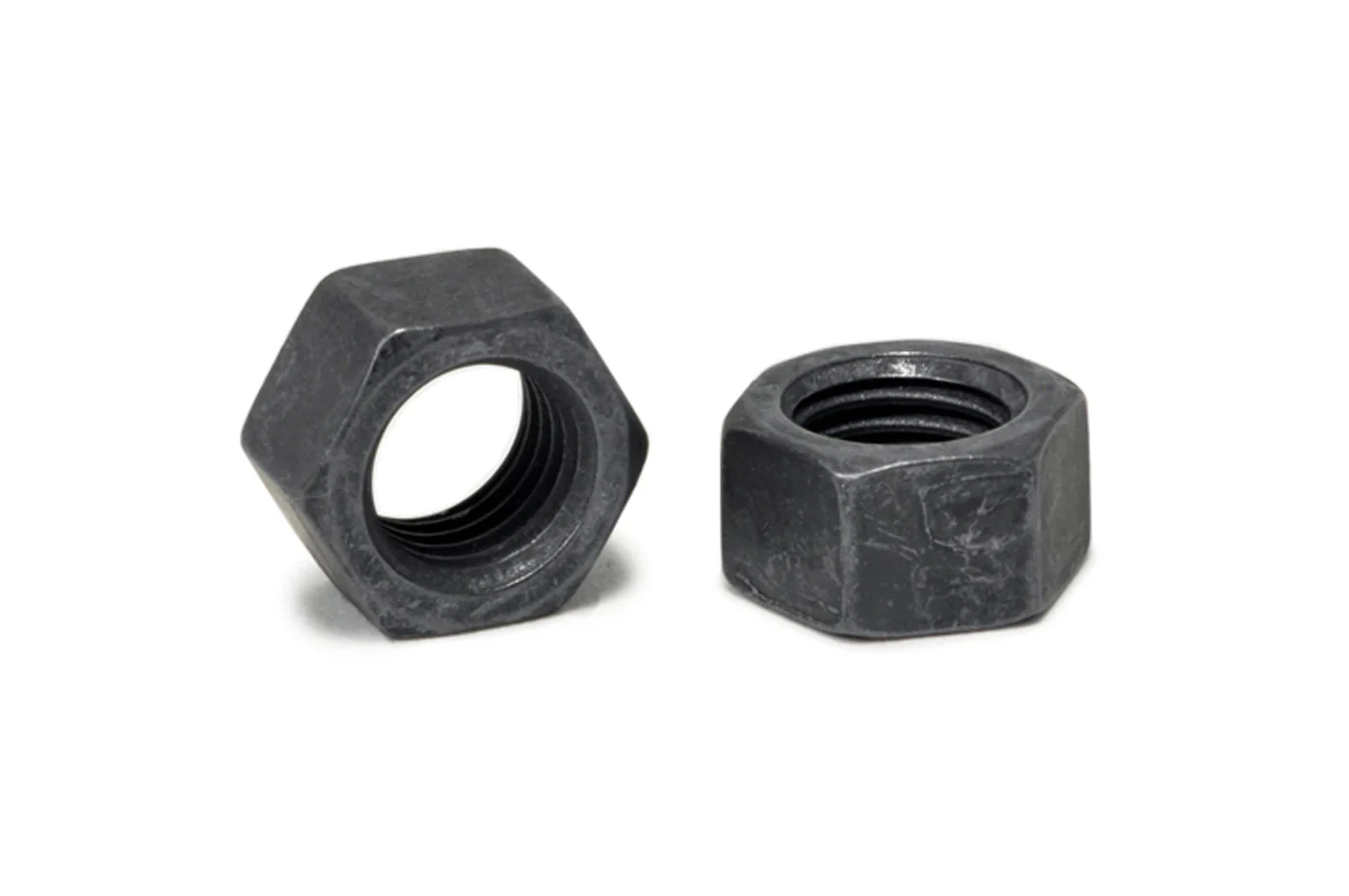

12779P	MD050073	M10 Turbo Nut (Jam Style)	2

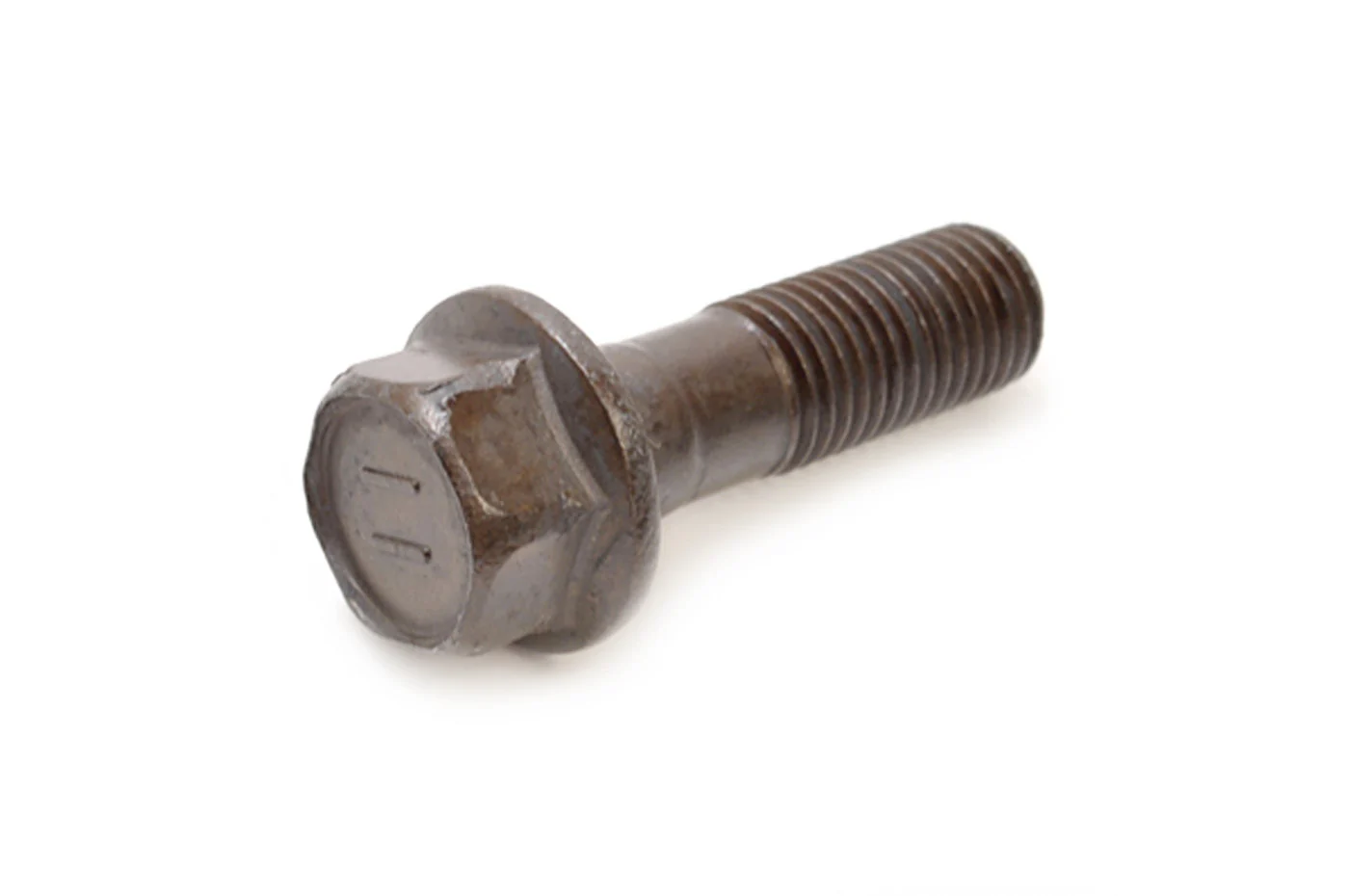

*12797Q	MD168601	M10x35 Manifold to Turbo Bolt (Evo 4/5/6/7)	2

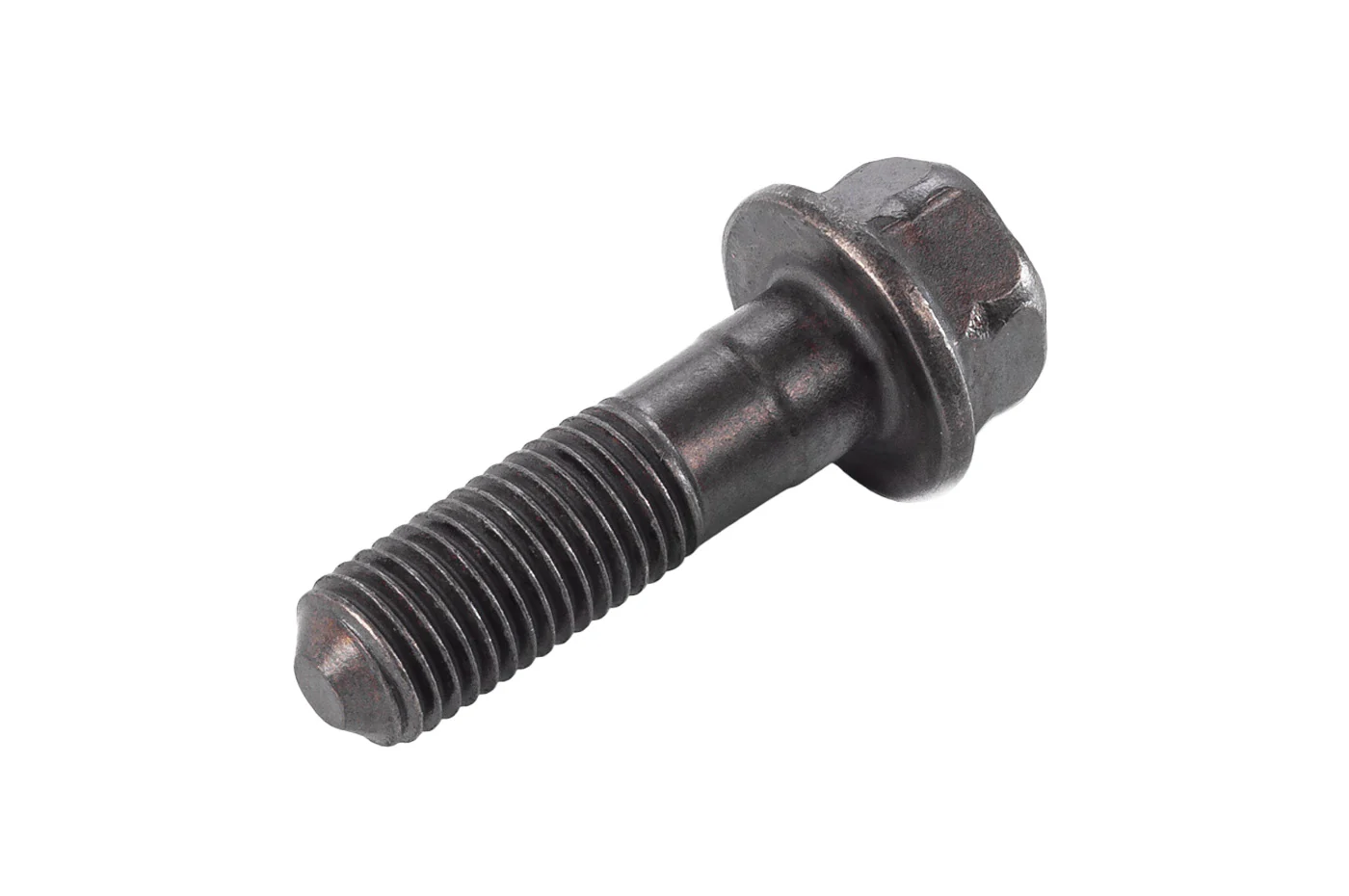

*12797Q	MN119783	M10x35 Manifold to Turbo Bolt (Evo 8/9)	2

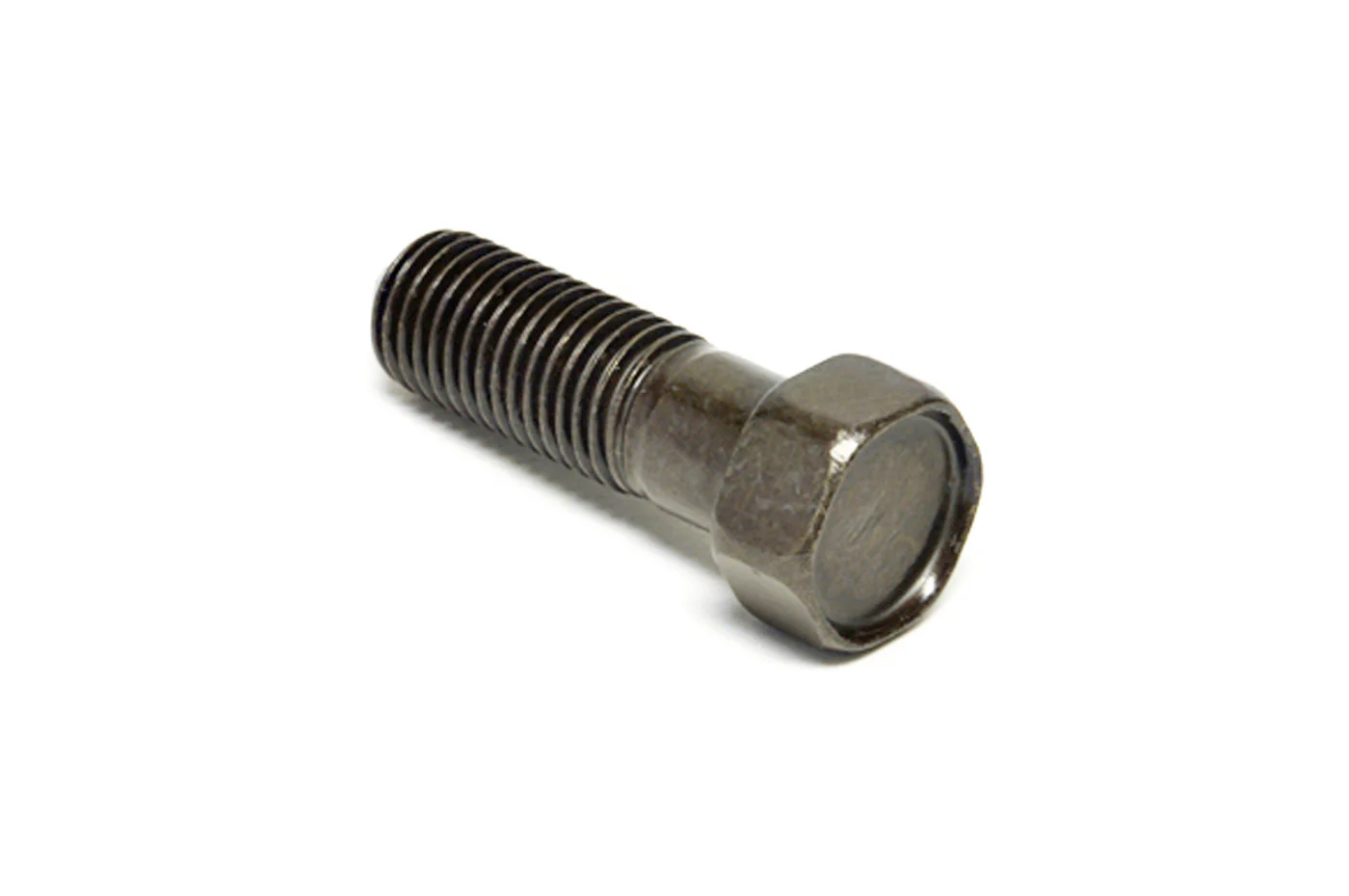

12797S	MD062961	M10x31 O2 Housing to Turbo Bolt	3
