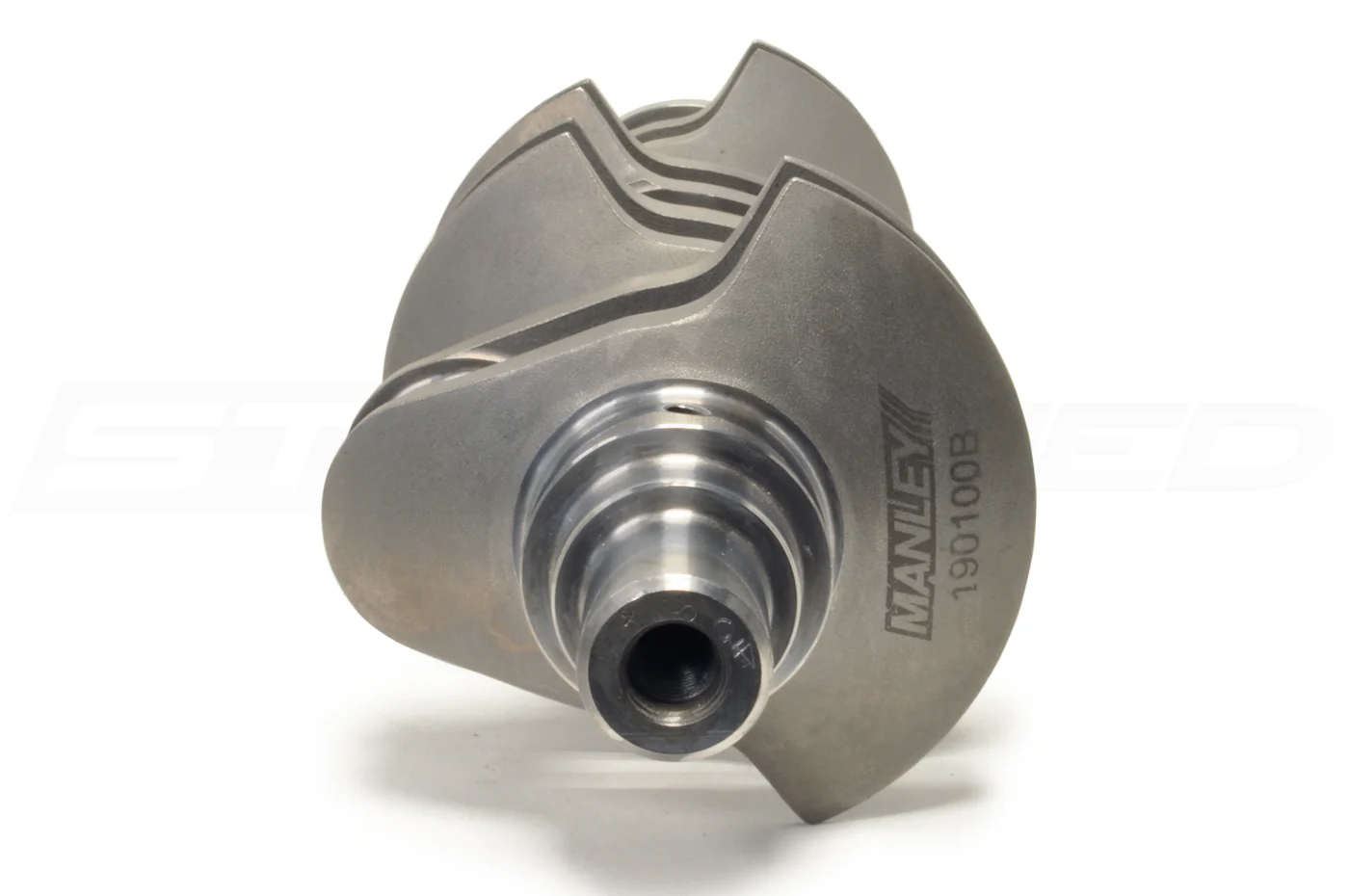

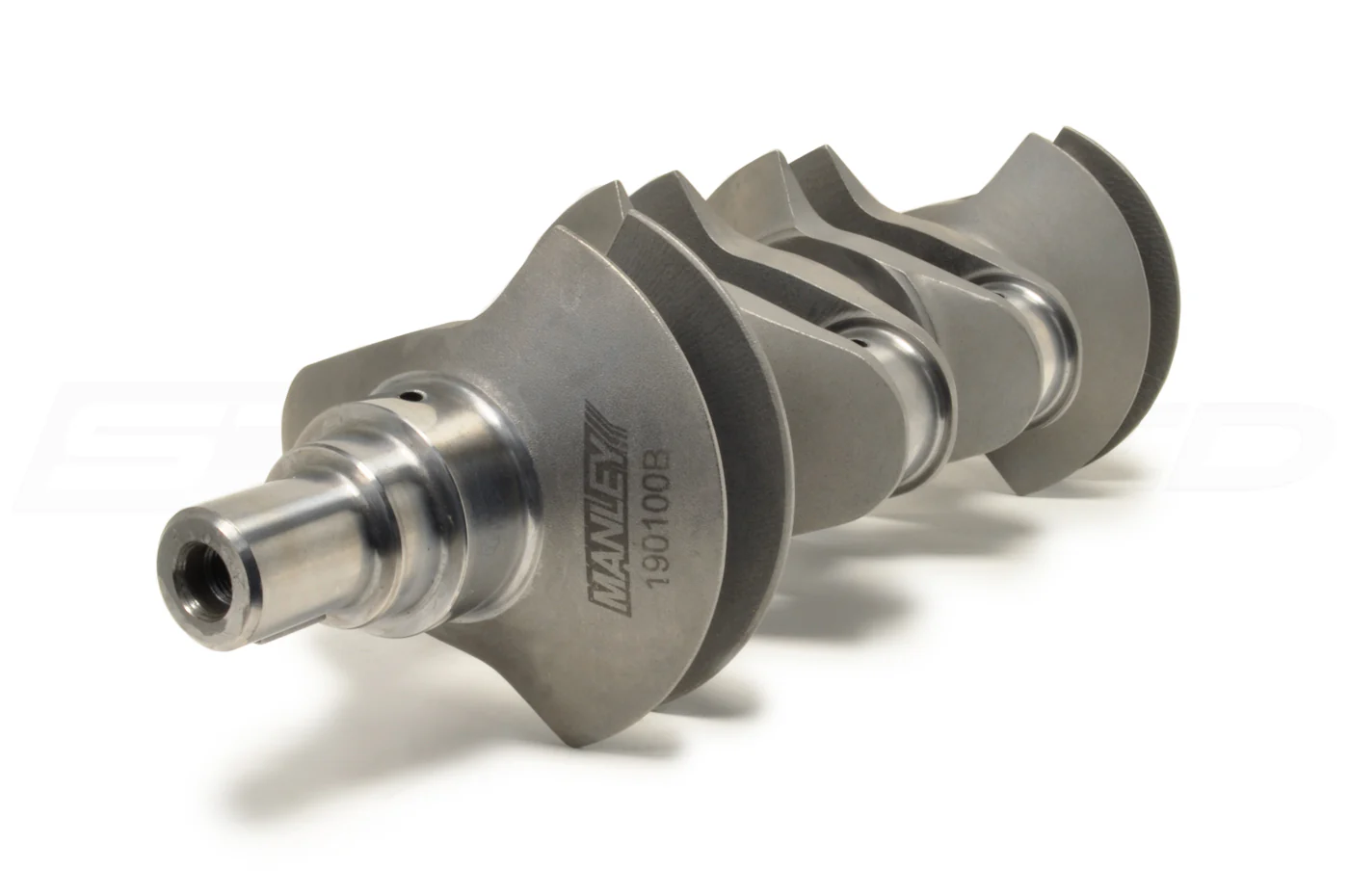

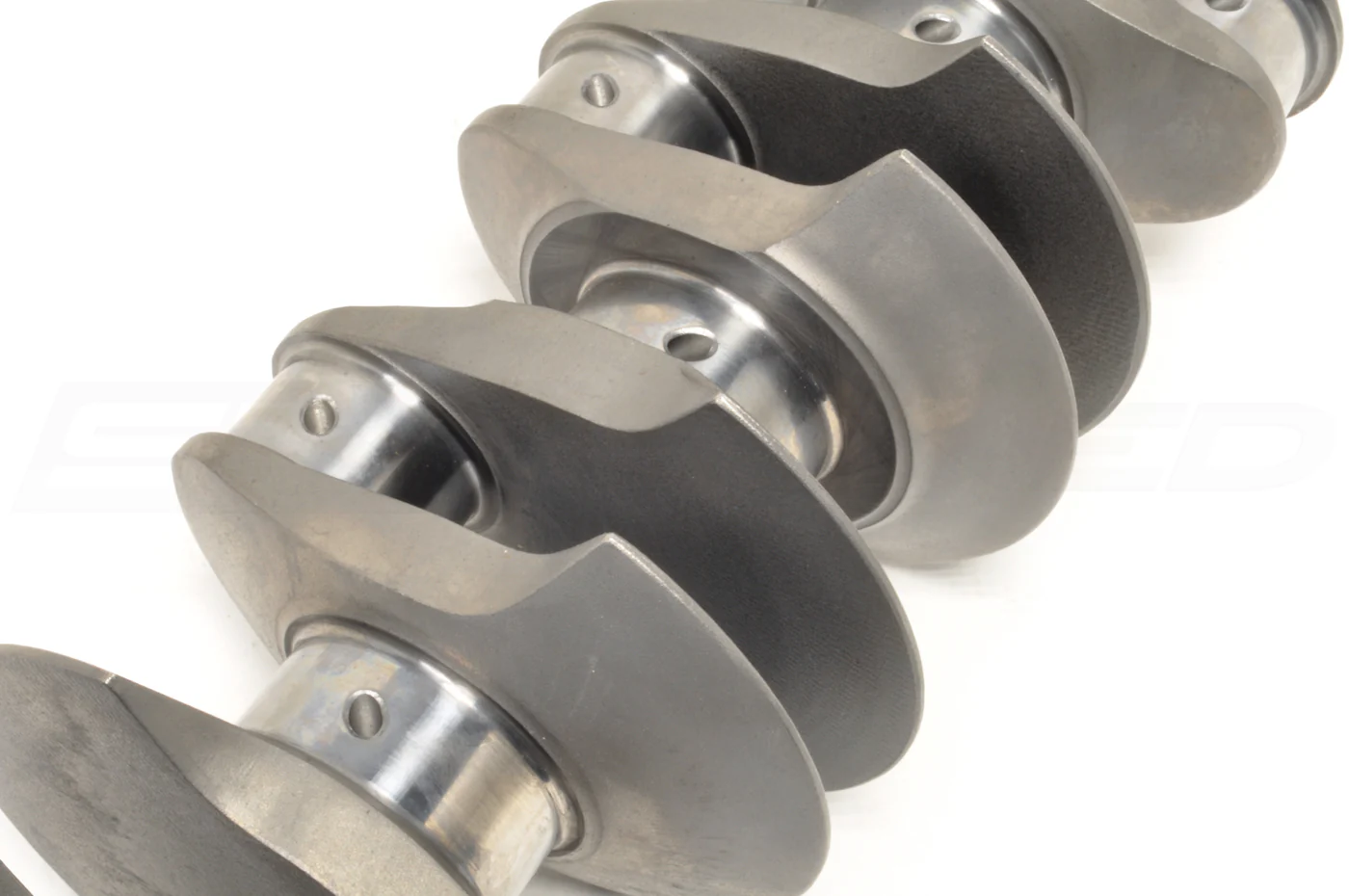

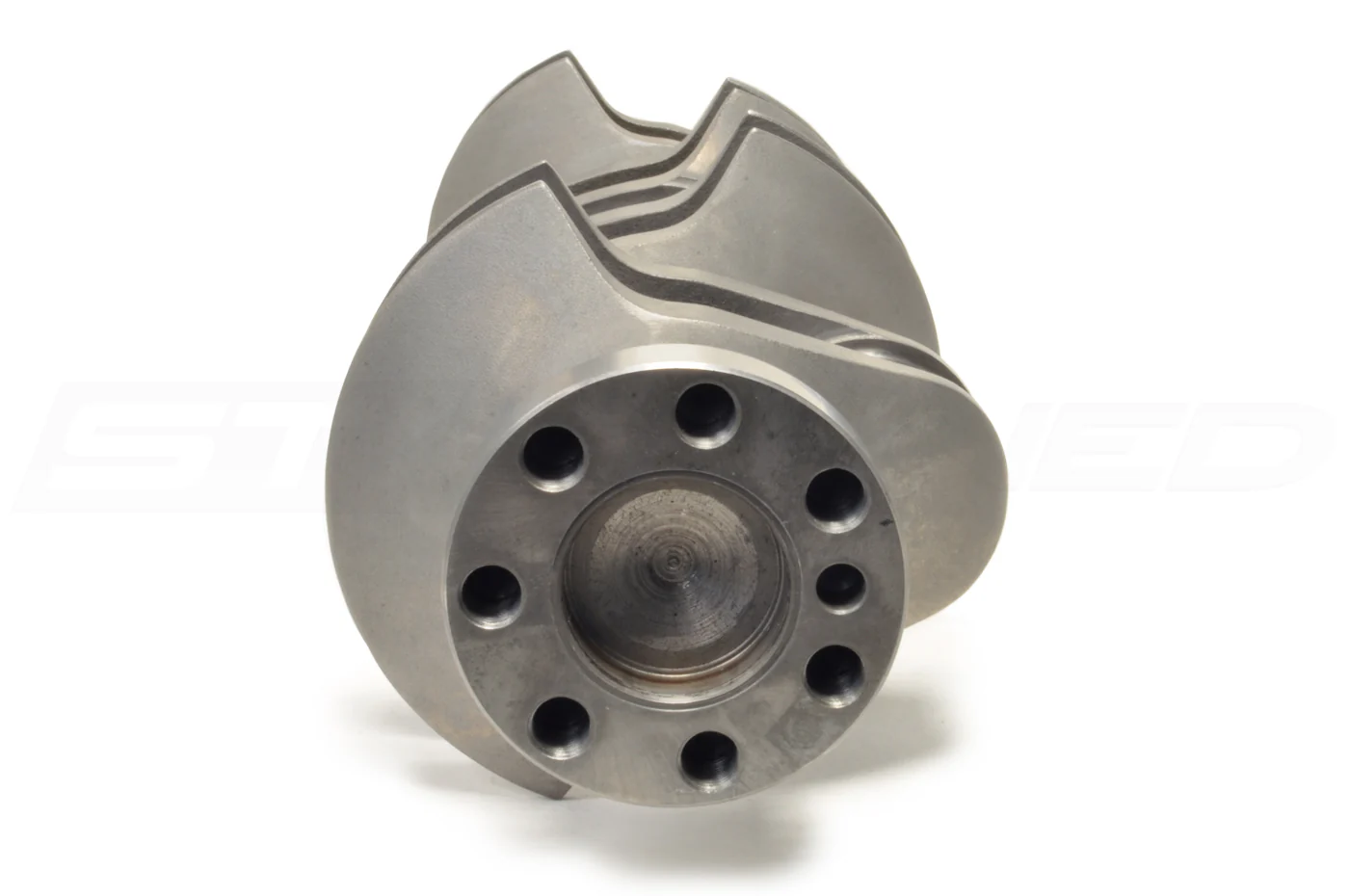

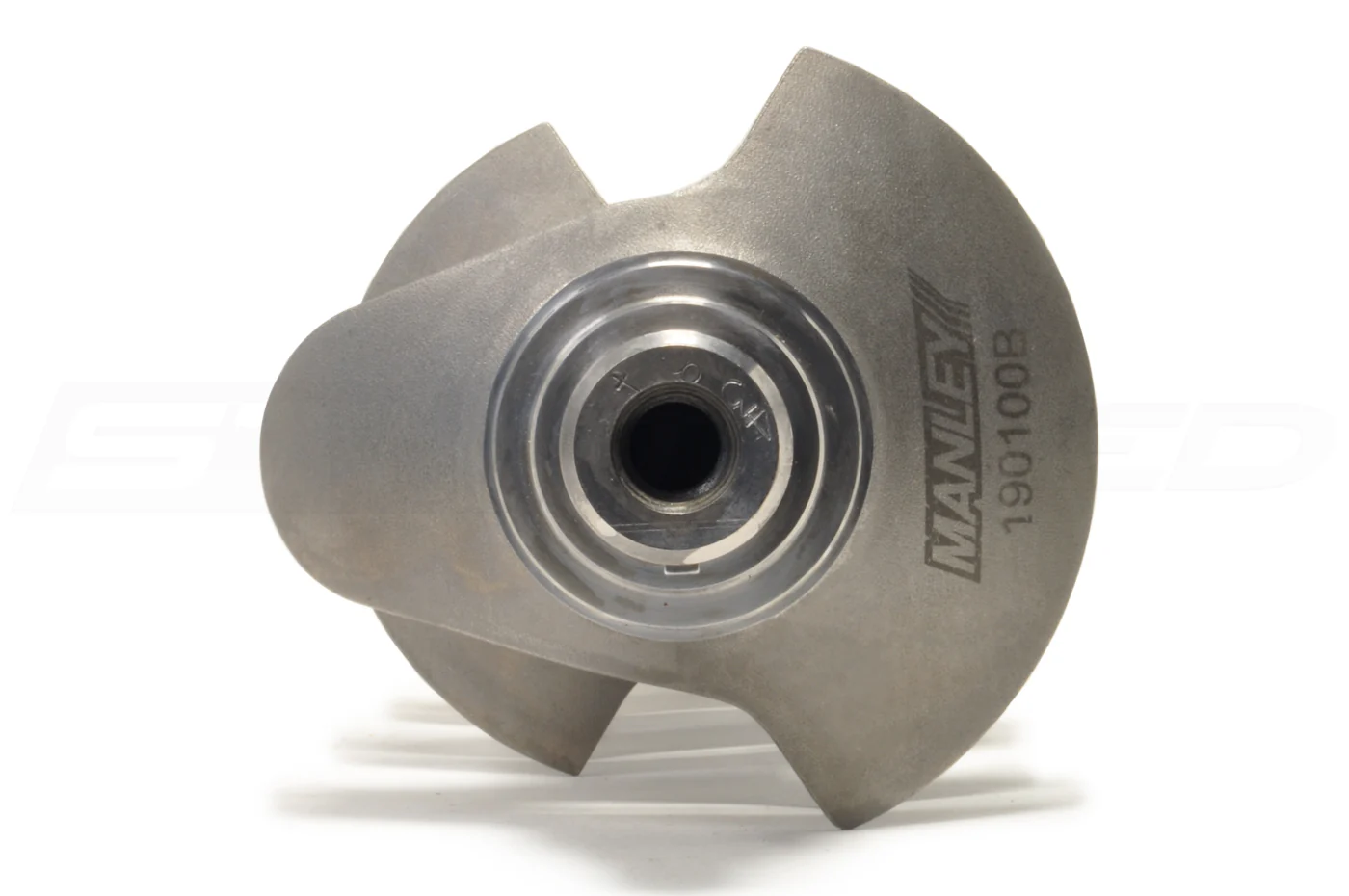

Manley Crankshaft Billet Turbo Tuff for Evo 4-9 & 7-Bolt DSM
Manley Turbo Tuff series billet crankshafts for 7-bolt 4G63 Evo 4-9 and DSM are for high horsepower and high boost applications. Features uniquely designed, ultra-lightweight, fully contoured counterweights resulting in reduced windage and maximum performance. The Billet Super Light Weight crank weighs only 29.5 pounds vs the standard 100mm crank at 33.5 and is great for higher revving builds.
Vehicle Fitment:
7-Bolt 4G63/4G64
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1993 Galant VR4
Features:
• 4340 Billet
• Multi-step heat treatment process
• Stress Relieved and Shot Peened
• Nitrided
• 100% Magnafluxed
• Special teardrop diagonal oiling
• Knife-edged counterweights
Vehicle Fitment:
7-Bolt 4G63/4G64
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1993 Galant VR4
Features:
• 4340 Billet
• Multi-step heat treatment process
• Stress Relieved and Shot Peened
• Nitrided
• 100% Magnafluxed
• Special teardrop diagonal oiling
• Knife-edged counterweights
| Part Number: | Application: | Stroke: | Weight (Pounds): |
| 190100B | 4G63/4G64 7-Bolt | 88mm | 32 |
| 190110B | 4G63/4G64 7-Bolt | 94mm | 32.5 |
| 190120B | 4G63/4G64 7-Bolt | 100mm | 33.5 |
| 190120BSLW | 4G63/4G64 7-Bolt (Super Light Weight) | 100mm | 29.5 |
