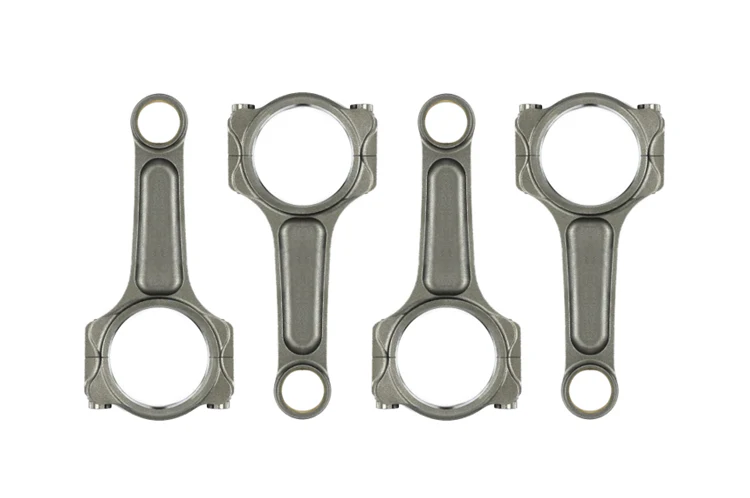

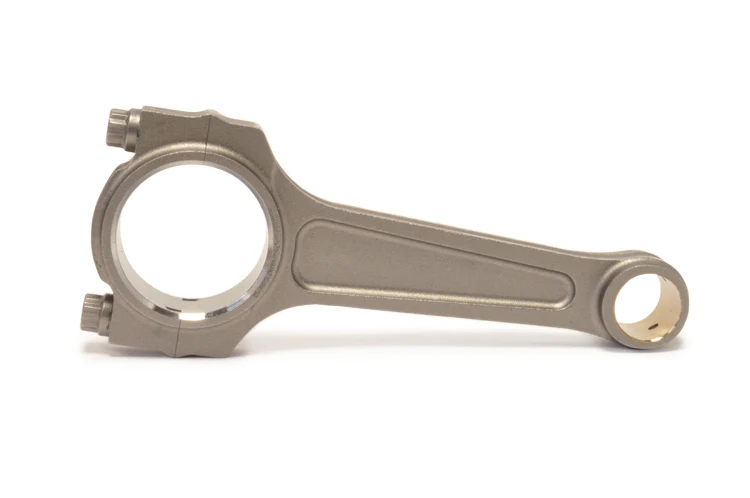

Manley I-Beam Turbo Tuff Rods for 4B11 Evo X
Manley Performance Pro Series I-Beam Turbo Tuff rods for 4B11 Evo X are available with 3/8" ARP 2000 rod bolts or upgrade to the ARP 625+ bolts. Includes a full set of 4 rods with Manley assembly lube.
Vehicle Fitment:
2008-2015 Evolution X 4B11
Standard I-Beam Turbo Tuff Features:
• Forged from 4340 aircraft quality vacuum degassed material
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1000
Includes:
Set of 4 Rods
Manley Lube
| Manley I-Beam Turbo Tuff Rods for 4B11 Evo X: | |||||||
| Part Number | Application | Center to Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Grams |
|
14409‑4 14409R6‑4 |
4B11 | 5.656" | 2.165" | .860" | .9055" (23mm) | .9063" | 645 |
Original: $1,028.90
-65%$1,028.90
$360.12
Description
Manley Performance Pro Series I-Beam Turbo Tuff rods for 4B11 Evo X are available with 3/8" ARP 2000 rod bolts or upgrade to the ARP 625+ bolts. Includes a full set of 4 rods with Manley assembly lube.
Vehicle Fitment:
2008-2015 Evolution X 4B11
Standard I-Beam Turbo Tuff Features:
• Forged from 4340 aircraft quality vacuum degassed material
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1000
Includes:
Set of 4 Rods
Manley Lube
| Manley I-Beam Turbo Tuff Rods for 4B11 Evo X: | |||||||
| Part Number | Application | Center to Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Grams |
|
14409‑4 14409R6‑4 |
4B11 | 5.656" | 2.165" | .860" | .9055" (23mm) | .9063" | 645 |
