HPT F2 6262 Turbo (800 HP)
The HPT F2 6262 turbocharger is equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag. Capable of supporting up to 800 horsepower.
Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.
Vehicle Fitment:
Universal Application
Features:
• F2 Compressor Cover w/ Ported Shroud
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Iron Bearing Housing with Integrated Back Plate
• Ceramic Dual Ball Bearing System
• 310 Investment Cast Stainless Steel Turbine Housing
| Part Numberxxxxxxxx | MAX HP |
CW Inducer (mm) |
CW Exducer (mm) |
CC Inlet |
CC Outlet/ Discharge |
TW Inducer (mm) |
TW Exducer (mm) |
TH Inlet |
TH Outlet/ Discharge |
TH A/R |
| F2-6262-63T3S | 800 | 62.80 | 82.0 | 4" | 2.5" | 74.17 | 62.5 | T3 | VB 3.00" | 0.63 |
| F2-6262-82T3S | 800 | 62.80 | 82.0 | 4" | 2.5" | 74.17 | 62.5 | T3 | VB 3.00" | 0.82 |
| F2-6262-82T4S | 800 | 62.80 | 82.0 | 4" | 2.5" | 74.17 | 62.5 | T4 | VB 3.00" | 0.82 |
| F2-6262-82VS F2-6262-82VS-RR |
800 | 62.80 | 82.0 | 4" | 2.5" | 74.17 | 62.5 | VB 2.25" | VB 3.00" | 0.82 |
CW = Compressor Wheel
CC = Compressor Cover
TW = Turbine Wheel
TH = Turbine Housing
VB = V-Band
-RR = Matching Reverse Rotation version
F2 Oil Drain Fittings (8ORB):
F2 housings are tapped for 8 ORB.
The HPT F2 Series turbos could use the STM -10AN Turbo Oil Drain Fitting GT-Series (ODF-GT) with these M8x1.25 Bolts or if you don't wish to use a traditional flange, gasket and bolts, HPT also offers these special 8 ORB Inverted Oil Drain Fittings that thread right into the bearing housing.
F2 Oil Feed Line Fitting (-4AN):
All F2 turbos are internally restricted with a built in -4AN male oil inlet feed fitting that should not be removed.
Turbine Housing V-Band Flanges:
•
V-Band Outlet/Discharge Flanges
•
V-Band Inlet Flanges
Turbine Housing Clamps:
• HPT Turbine Housing V-Band Inlet and Discharge Clamps

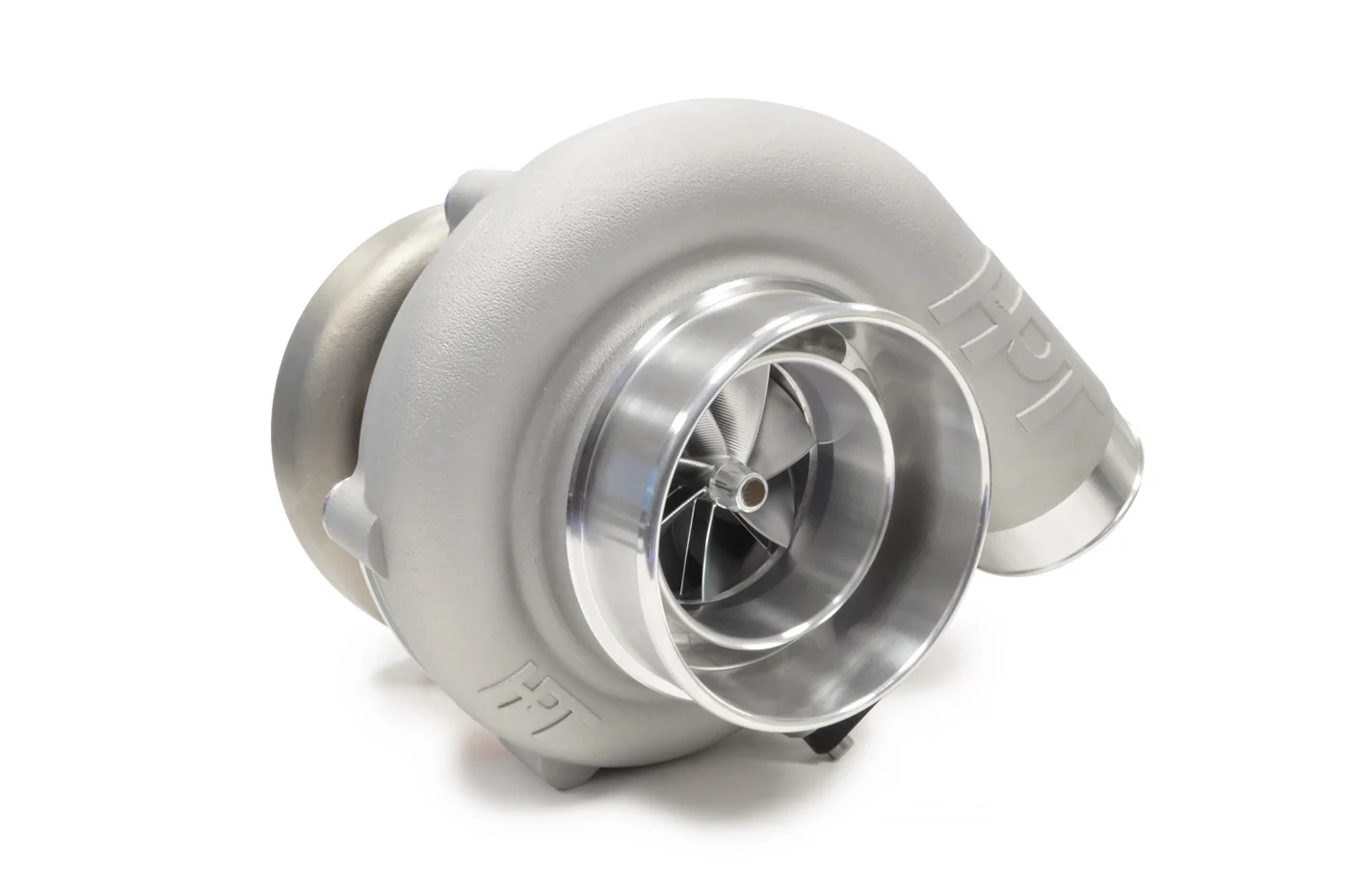

Images:
Photos are for representation only. Each turbo will vary based on specs and housing options.
