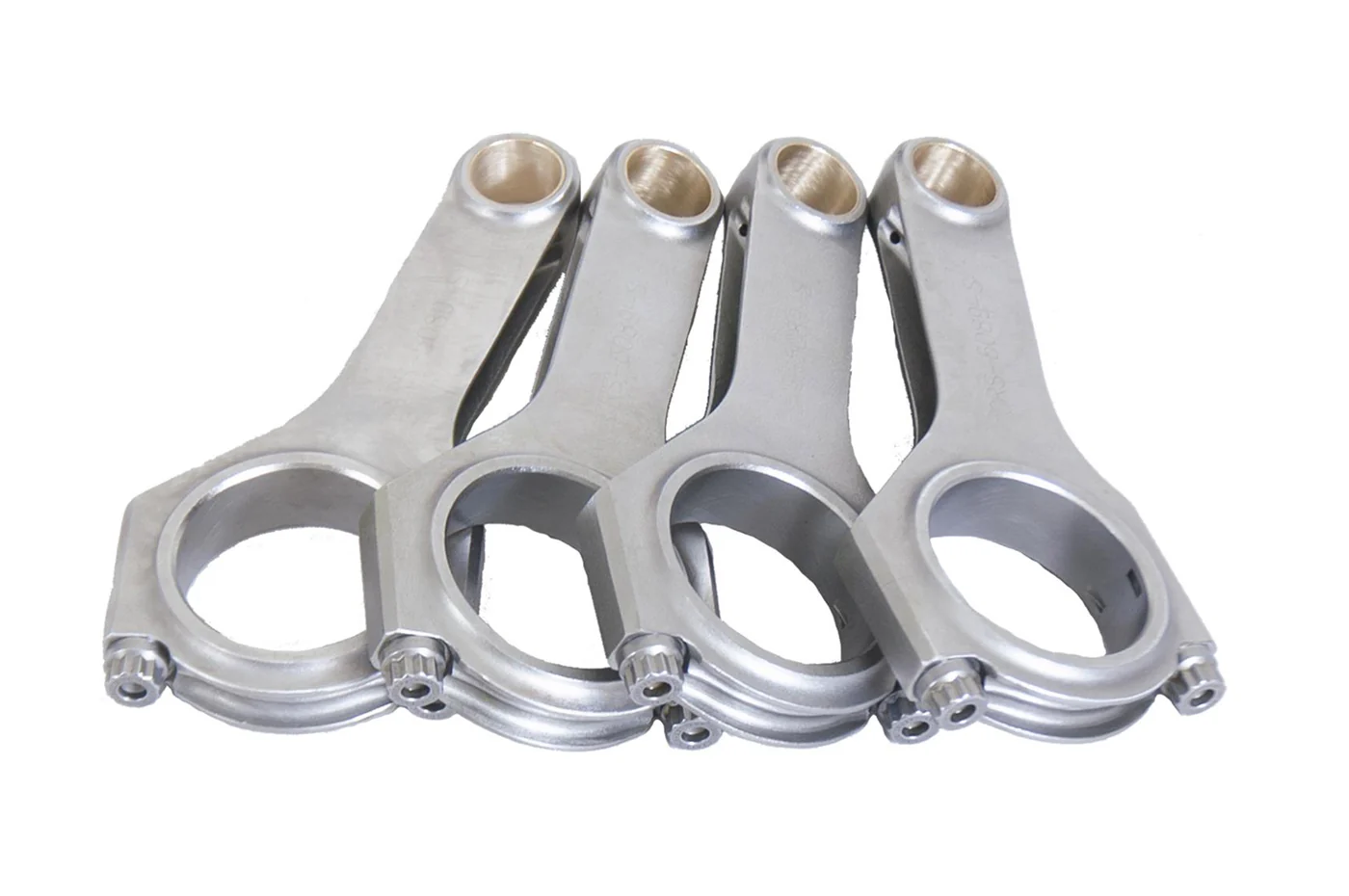

Eagle H-Beam Rods for FA20 BRZ FRS 86 (CRS5089S3D)
Eagle forged 4340 steel H-Beam rods for FA20 BRZ, FRS and 86 models. Includes ARP 2000 rod bolts rated for 900HP. Includes the full set of 4 rods with rod bolts. Please do all your research and consult your engine builder if necessary before purchase. If you need help, just give us a call!
Vehicle Fitment:
2013-2021 Subaru BRZ
2013-2016 Scion FRS
2017-2021 Toyota 86
Subaru FA20 / Toyota 4UGSE
Important Notes:
Torque to 43 ft-lbs, use ARP moly lube ONLY!
Rod Specs:
ā¢ Bolts: 3/8" ARP 2000
ā¢ Material: Forged 4340 Steel
ā¢ Center To Center Length: 5.089"
ā¢ Pin Size: 0.906"
ā¢ Pin End Width: 0.842"
ā¢ Rod Journal: 2.047"
ā¢ Housing Bore: 2.165"
ā¢ Big End Width: 0.842"
ā¢ Typical Weight: 530G
ā¢ Bushed For Full-Floating Piston Pin
Purchase Includes:
(4) Rods with Bolts
More Info:
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
The H-Beam rods are rated for 900 HP, come with ARP 2000 rod bolts and the part numbers end with 3D.
Eagle H-Beam (3D) 3rd Gen Design rods utilize large-scale manufacturing to keep costs low, but only use ASME-certified 4340 steel, ARP bolts and silicon-bronze bushings. Eagle H-Beam rods are the preferred choice for high horsepower, high RPM competition engines utilizing nitrous, forced induction or exotic fuels. The 3D H-Beam rods come with 3/8" ARP 2000 bolts. These are recommended for use up to 900hp (4 cyl) and 1500hp (6 cyl) in turbocharged applications.
Eagle Part Number: CRS5089S3D
UPC: 793348022635
Vehicle Fitment:
2013-2021 Subaru BRZ
2013-2016 Scion FRS
2017-2021 Toyota 86
Subaru FA20 / Toyota 4UGSE
Important Notes:
Torque to 43 ft-lbs, use ARP moly lube ONLY!
Rod Specs:
ā¢ Bolts: 3/8" ARP 2000
ā¢ Material: Forged 4340 Steel
ā¢ Center To Center Length: 5.089"
ā¢ Pin Size: 0.906"
ā¢ Pin End Width: 0.842"
ā¢ Rod Journal: 2.047"
ā¢ Housing Bore: 2.165"
ā¢ Big End Width: 0.842"
ā¢ Typical Weight: 530G
ā¢ Bushed For Full-Floating Piston Pin
Purchase Includes:
(4) Rods with Bolts
More Info:
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
The H-Beam rods are rated for 900 HP, come with ARP 2000 rod bolts and the part numbers end with 3D.
Eagle H-Beam (3D) 3rd Gen Design rods utilize large-scale manufacturing to keep costs low, but only use ASME-certified 4340 steel, ARP bolts and silicon-bronze bushings. Eagle H-Beam rods are the preferred choice for high horsepower, high RPM competition engines utilizing nitrous, forced induction or exotic fuels. The 3D H-Beam rods come with 3/8" ARP 2000 bolts. These are recommended for use up to 900hp (4 cyl) and 1500hp (6 cyl) in turbocharged applications.
Eagle Part Number: CRS5089S3D
UPC: 793348022635
See more Eagle Products
$136.39
Original: $389.68
-65%Eagle H-Beam Rods for FA20 BRZ FRS 86 (CRS5089S3D)ā
