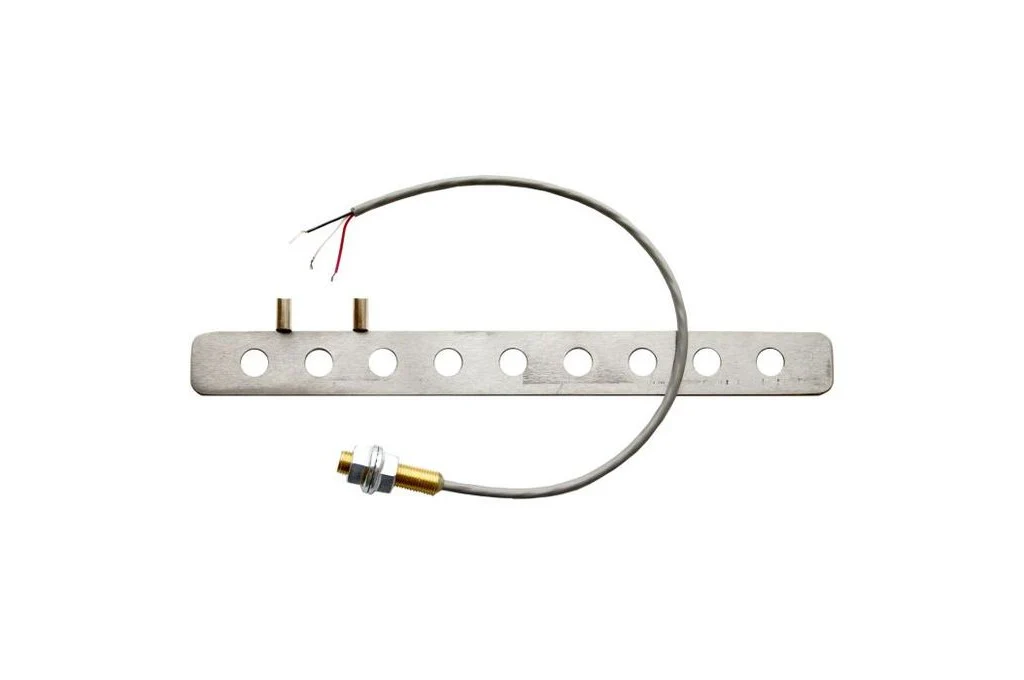

AutoMeter Universal Hall Effect Magnetic Speed Sensor, Incl. 4 Magnets & Bracket (5290)
AutoMeter universal magnetic hall effect speed sensor that generates a 4 pulse per revolution (PPR), 12v square wave signal for electric speedometer installation in custom applications.
Features:
ā¢ Includes 4 magnets, sensor pickup, and universal bracket
ā¢ Includes mounting hardware and installation instructions
ā¢ Outputs 4 pulse per revolution (PPR), 12v square wave signal
ā¢ Hall effect magnetic sensor design
ā¢ Universal fit for custom applications
ā¢ 3-wire sensor requiring 12 volt power source
ā¢ Compatible with AutoMeter electric speedometers and other compatible gauges
Specifications:
| Signal Output | 4 PPR (Pulse Per Revolution) |
| Signal Type | 12V Square Wave |
| Sensor Type | Hall Effect Magnetic |
| Wire Configuration | 3-wire (Black ground, Red 12V power, White signal) |
| Power Requirement | 12 Volt DC |
| Pickup Face Diameter | Approximately 3/8 inch |
| Pickup Length | Approximately 1-3/4 inch |
| Included Components | Sensor pickup, 4 magnets, universal bracket, mounting hardware |
Part Number: 5290
UPC: 046074052903
