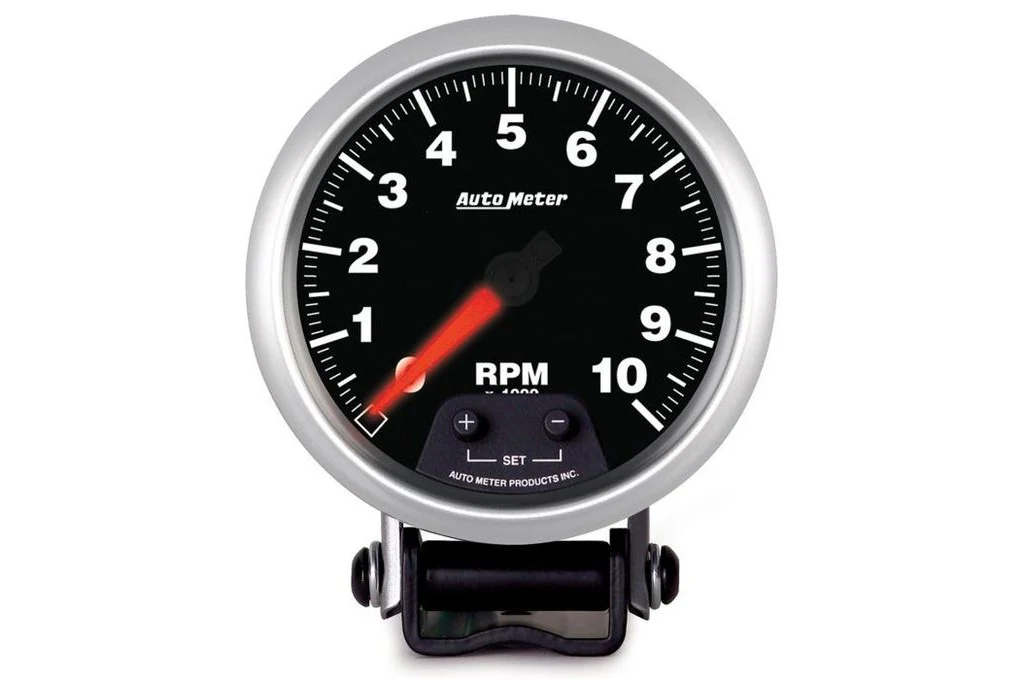

AutoMeter 3-3/4" Elite Pedestal Tachometer, 0-10,000 RPM (5690)
3-3/4" air-core pedestal tachometer with 0-10,000 RPM range, LED lighting, and precision stepper motor movement. Features 7 user-selectable LED colors and peak RPM memory for racing applications.
Features:
• 7 user selectable LED colors (blue, white, red, green, cyan, violet, and yellow)
• Peak RPM Memory recall with one-touch review
• Precision 280° brushless stepper motor movement
• 12 and 16 volt compatible
• Compatible with most 1-12 cylinder engines with 12v ignitions
• Ultra-bright LED shift light
• Patented air-core meter movement
• Self-calibration feature at startup
• Includes mounting hardware and detailed instructions
• Bracket included
Specifications:
| Size | 3-3/4" (95.3mm) |
| Type | Air-Core |
| Range | 0-10,000 RPM |
| Lighting | LED |
| Motor Movement | Precision 280° brushless stepper motor |
| Voltage Compatibility | 12 and 16 volt |
| Engine Compatibility | Most 1-12 cylinder engines with 12v ignitions |
| Needle Movement Speed | 0 – Maximum RPM in 333 milliseconds |
Part Number: 5690
UPC: 046074056901
