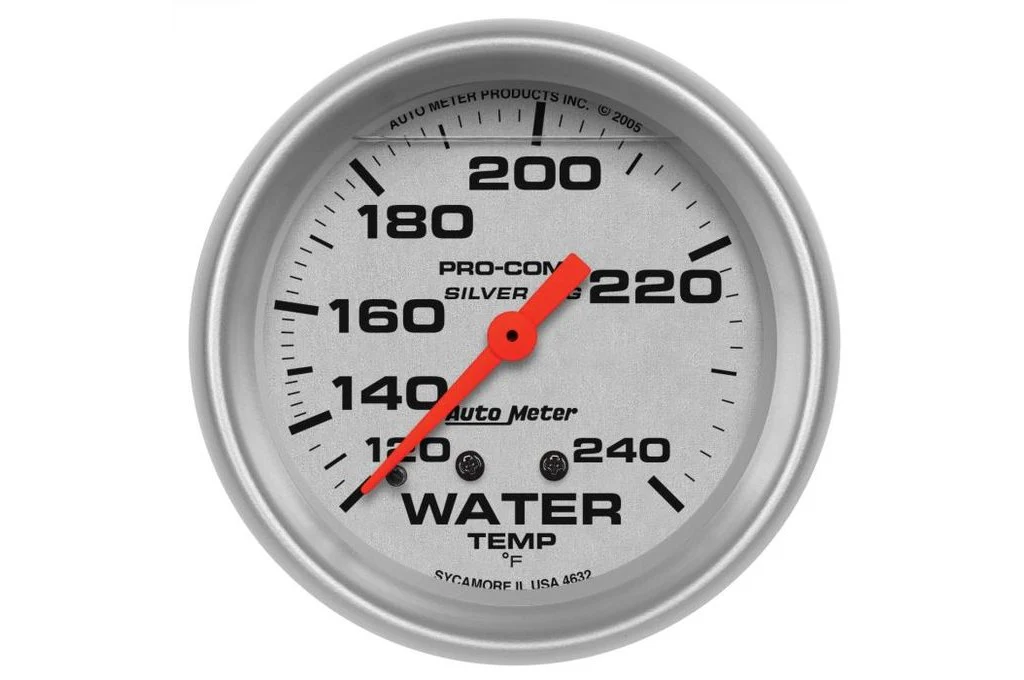

AutoMeter 2-5/8" Ultra-Lite Water Temperature Gauge, 120-240°F, 6 FT, Mechanical (4632)
A 2-5/8" mechanical water temperature gauge with 120-240 °F range, liquid filled design, 6 ft. capillary tube, and incandescent lighting. No electrical system required for operation.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications
• Liquid filled design for superior resistance to shock, vibration, and the elements
• Advanced bourdon tube meter movement provides unparalleled performance in demanding applications
• No electrical system required for gauge operation - compatible with every street or race vehicle
• 6 ft. capillary tube and 1/2" NPT mounting nut included
• Race proven mechanical instruments provide trusted accuracy while being simple to install
Specifications:
| Size | 2-5/8" (66.7mm) |
| Type | Mechanical |
| Range | 120-240 °F |
| Lighting | Incandescent |
| Capillary Tube Length | 6 ft. |
| Mounting | 1/2" NPT adapter/fitting |
Part Number: 4632
UPC: 046074046322
