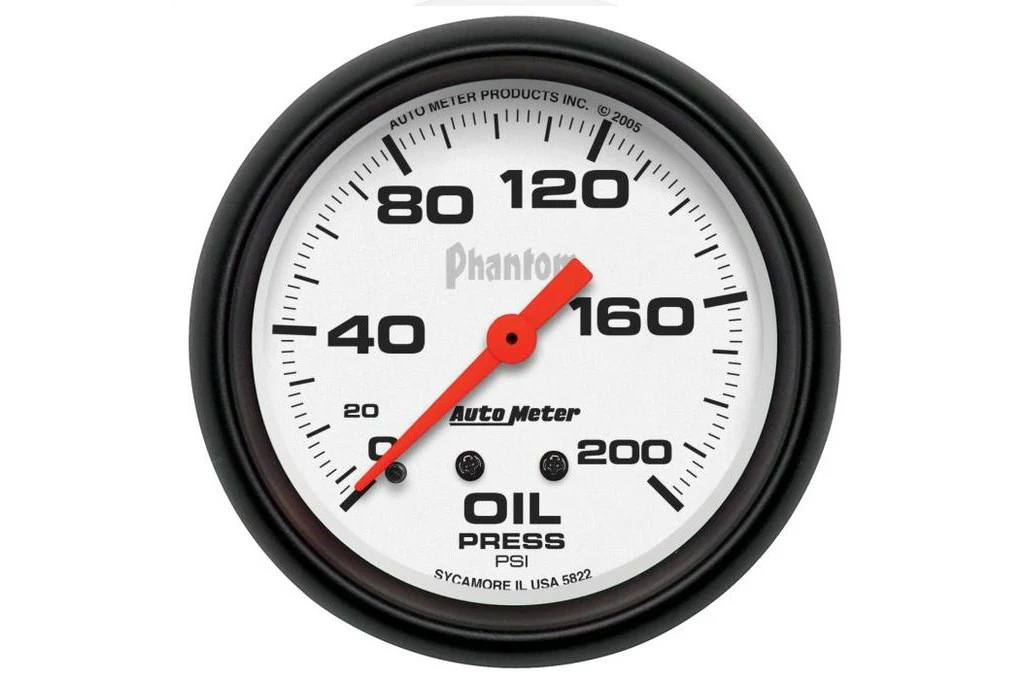

AutoMeter 2-5/8" Phantom Oil Pressure, 0-200 PSI, Mechanical (5822)
AutoMeter's Mechanical Oil Pressure Gauge with advanced bourdon tube meter movement, featuring incandescent lighting and no electrical system requirement. Simple 1/8" NPT connection with included fittings and nylon tube.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
• No electrical system required for gauge operation - compatible with every street or race vehicle
• Mechanical movements provide accuracy and durability even in the harshest environments
• Gauge kit includes 1/8" nylon line, 1/8" NPT compression fittings, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications:
| Size | 2-5/8" (66.7mm) |
| Type | Mechanical |
| Range | 0-200 PSI |
| Lighting | Incandescent |
| Connection | 1/8" NPT |
| Tubing Included | 10 ft. nylon tubing |
Part Number: 5822
UPC: 046074058226
Description
AutoMeter's Mechanical Oil Pressure Gauge with advanced bourdon tube meter movement, featuring incandescent lighting and no electrical system requirement. Simple 1/8" NPT connection with included fittings and nylon tube.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
• No electrical system required for gauge operation - compatible with every street or race vehicle
• Mechanical movements provide accuracy and durability even in the harshest environments
• Gauge kit includes 1/8" nylon line, 1/8" NPT compression fittings, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications:
| Size | 2-5/8" (66.7mm) |
| Type | Mechanical |
| Range | 0-200 PSI |
| Lighting | Incandescent |
| Connection | 1/8" NPT |
| Tubing Included | 10 ft. nylon tubing |
Part Number: 5822
UPC: 046074058226
