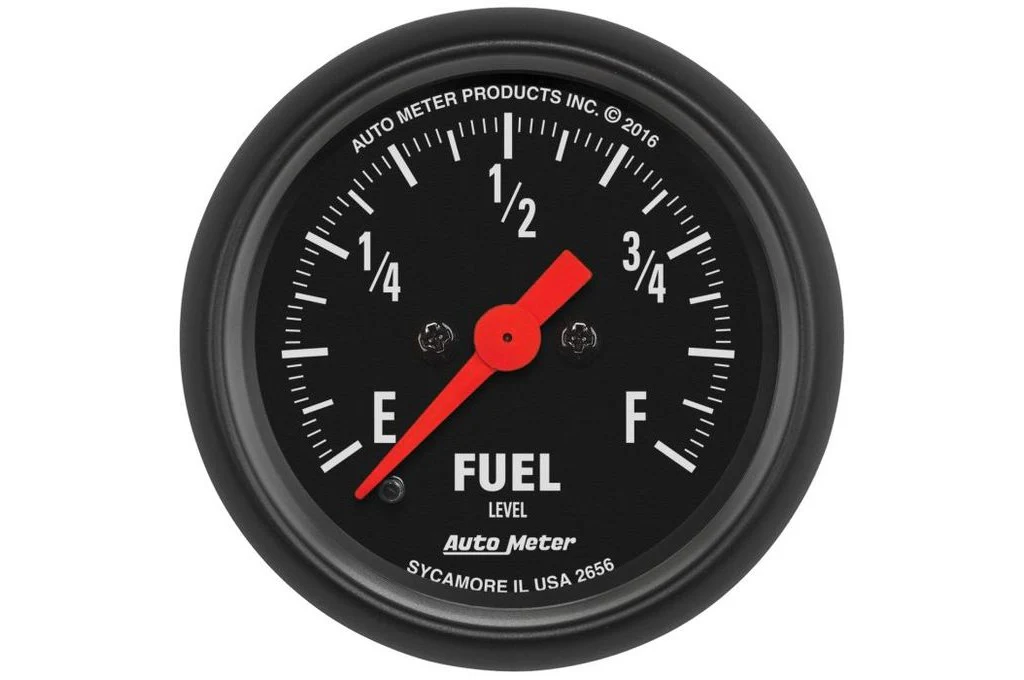

AutoMeter 52mm Z-Series Fuel Level Gauge, Programmable 0-280 Ω, Stepper Motor (2656)
AutoMeter programmable digital stepper motor fuel level gauge with 7 preset configurations and custom calibration for 0-280 ohm resistance range. Includes 20 ft wiring harness, bulb/socket assembly, and mounting hardware.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Gauge kit includes 20 ft. wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• Adjustable Scale with 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• User definable resistance setting programmable anywhere between 0-280 ohms
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Race proven digital stepper motor electric instruments provide unmatched accuracy with self calibration sequence during power up
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | Programmable 0-280 Ω |
| Lighting | Incandescent |
| Voltage Compatibility | 12 and 16 volt |
Part Number: 2656
UPC: 046074026560
Original: $156.74
-65%$156.74
$54.86
Description
AutoMeter programmable digital stepper motor fuel level gauge with 7 preset configurations and custom calibration for 0-280 ohm resistance range. Includes 20 ft wiring harness, bulb/socket assembly, and mounting hardware.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Gauge kit includes 20 ft. wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• Adjustable Scale with 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• User definable resistance setting programmable anywhere between 0-280 ohms
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Race proven digital stepper motor electric instruments provide unmatched accuracy with self calibration sequence during power up
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | Programmable 0-280 Ω |
| Lighting | Incandescent |
| Voltage Compatibility | 12 and 16 volt |
Part Number: 2656
UPC: 046074026560
