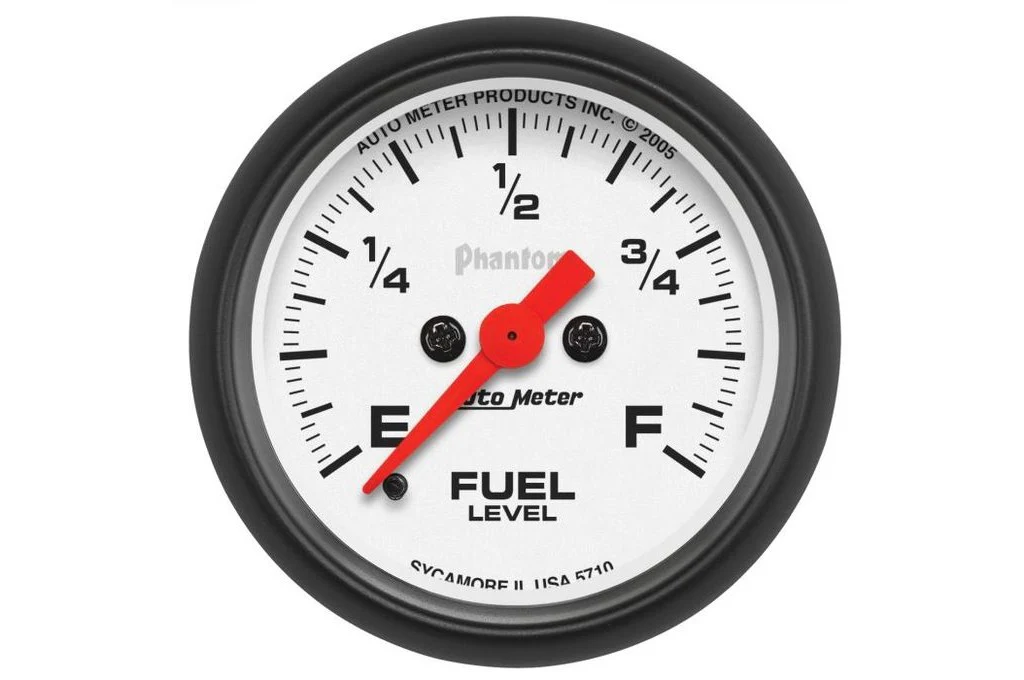

AutoMeter 52mm Phantom Fuel Level Gauge, Programmable 0-280 Ω Stepper Motor (5710)
A programmable digital stepper motor fuel level gauge with 7 preset configurations and custom calibration capability for fuel sending units operating between 0-280 ohms, featuring incandescent lighting and easy installation.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Gauge kit includes 20 ft. wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• Adjustable Scale with 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• User definable resistance setting programmable anywhere between 0-280 ohms
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy with self calibration sequence during power up
• Snapshot programming method allows capturing of empty and full readings for custom calibration
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | Programmable 0-280 Ω |
| Lighting | Incandescent |
| Voltage Compatibility | 12 and 16 volt |
| Wiring Harness Length | 20 ft. |
| Preset Configurations | 7 common vehicle types |
Part Number: 5710
UPC: 046074057106
