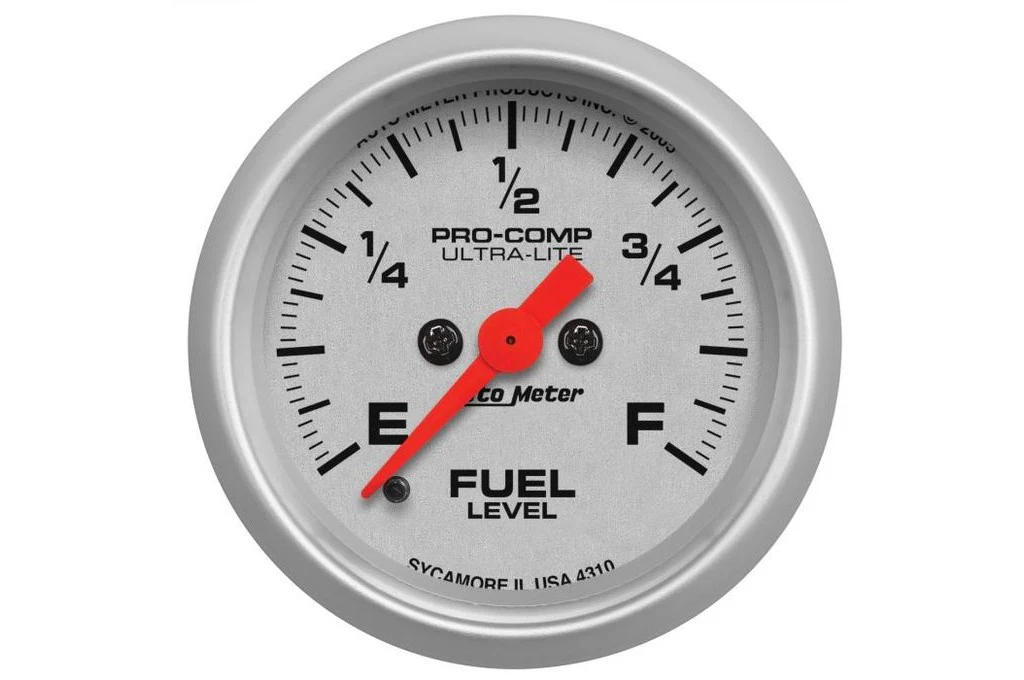

AutoMeter 52mm Ultra-Lite Fuel Level Gauge, Programmable 0-280 Ω, Stepper Motor (4310)
AutoMeter programmable fuel level gauge with digital stepper motor technology featuring 7 preset configurations and custom calibration for any sender between 0-280 ohms. Easily pairs with virtually any fuel level sending unit for accurate fuel monitoring.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Adjustable scale with 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• User definable resistance setting programmable anywhere between 0-280 ohms
• 12 and 16 volt compatible
• Compatible with nearly every street car or race car electrical system
• Race proven digital stepper motor electric instruments with unmatched accuracy
• Self calibration sequence during power up
• Gauge kit includes 20 ft. wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions
• Direct plug in wiring harness included for ease of installation
• Innovative custom calibration mode for non-standard fuel senders
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | Programmable 0-280 Ω |
| Lighting | Incandescent |
| Voltage Compatibility | 12 and 16 volt |
| Preset Configurations | 7 |
| Wire Harness Included | 20 ft. |
| Included Components | Wire Harness 5233, 3220, Red 3214 & Green 3215, 2230 |
Part Number: 4310
UPC: 046074043109
