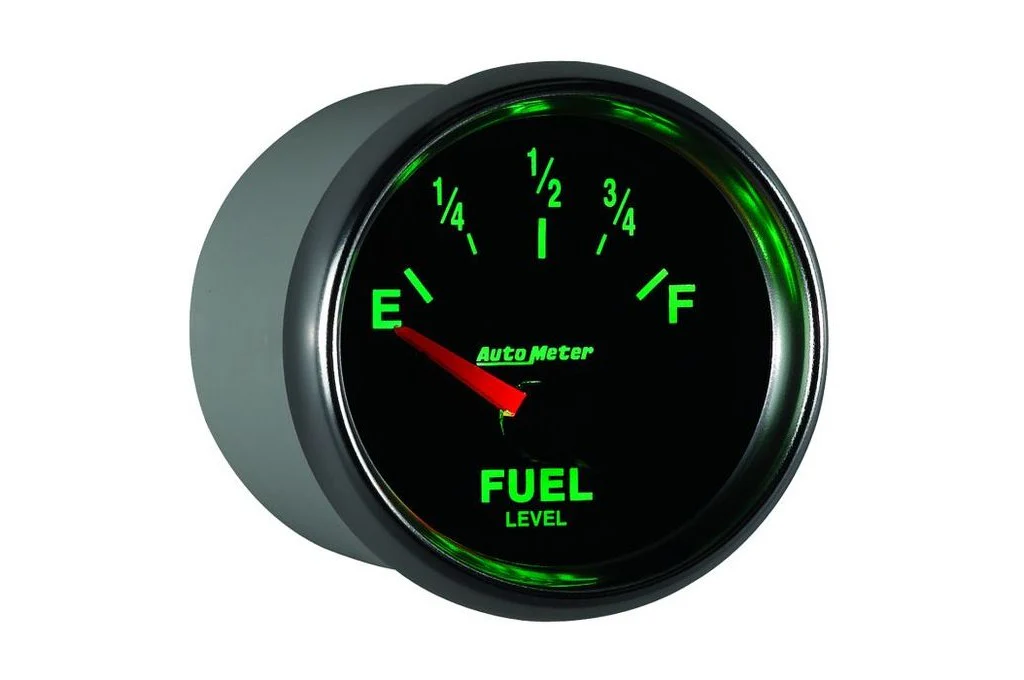

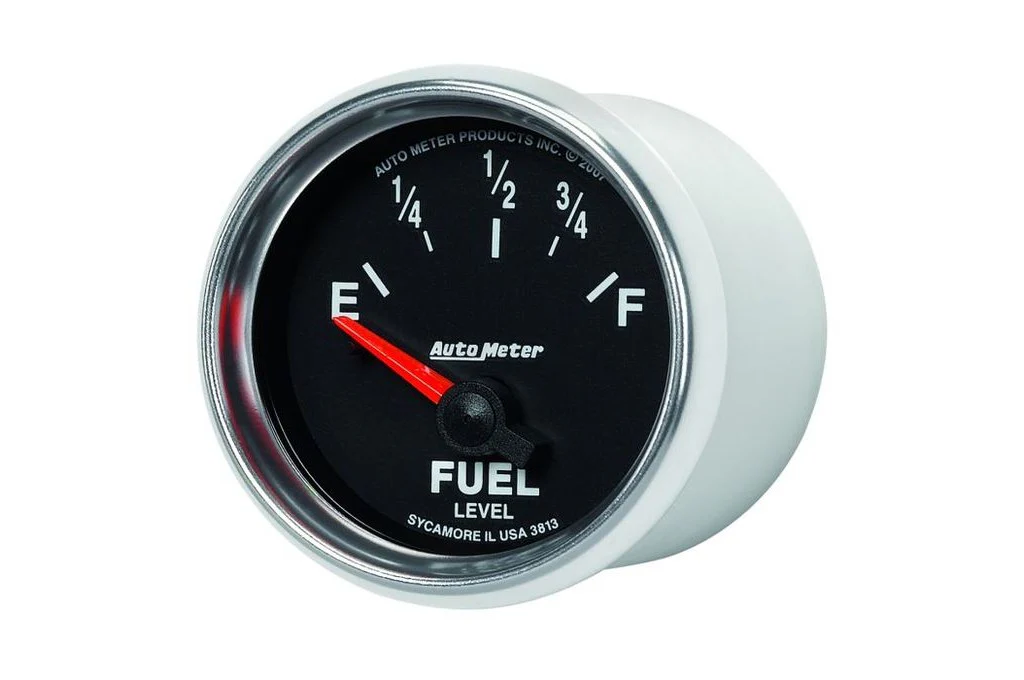

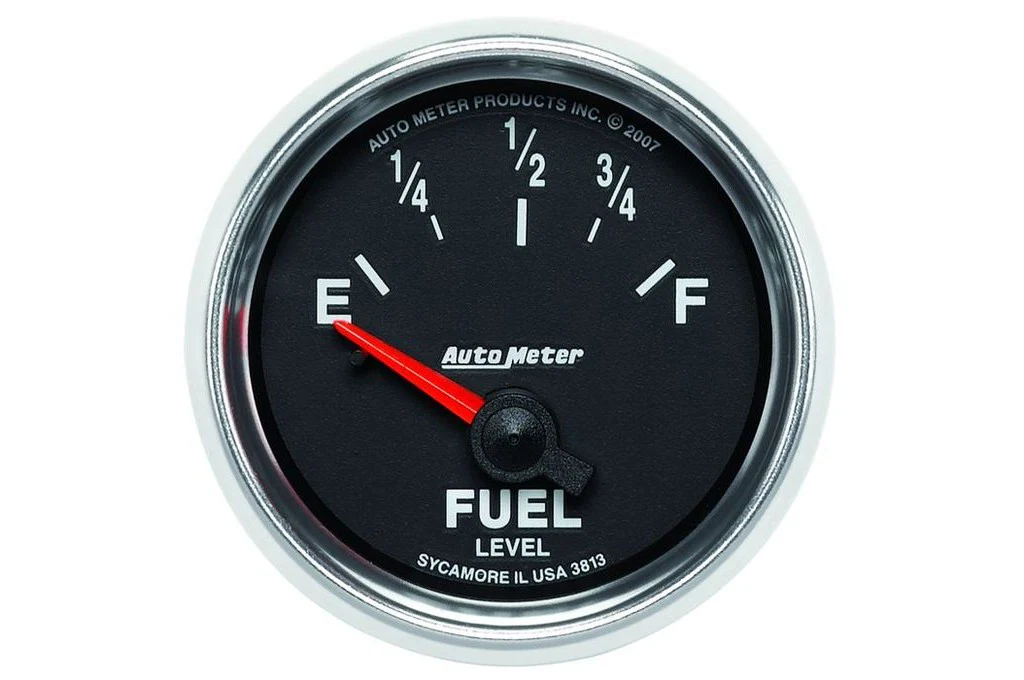

AutoMeter 52mm GS Fuel Level Gauge, 0-90 Ω, Air-Core, GM, SSE(3813)
AutoMeter 2-1/16" air-core fuel level gauge with 0-90 Ω range and LED lighting, compatible with most 1965-1997 Chevrolet/GM fuel senders. Works with 12 and 16 volt systems.
Features:
• Modern green LED through-the-dial lighting provides clear visibility during nighttime use
• Works with most 1965 to 1997 Chevrolet/GM senders
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes mounting hardware and detailed instructions for installation
• AutoMeter's race proven air-core electric instruments provide quick and accurate readings
• Patented air core meter movement receives extra dampening to help combat fuel slosh in non-baffled tanks
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Air-Core |
| Range | 0 Ω Empty / 90 Ω Full |
| Lighting | LED |
| Voltage | 12 and 16 volt compatible |
Part Number: 3813
UPC: 046074038136
Description
AutoMeter 2-1/16" air-core fuel level gauge with 0-90 Ω range and LED lighting, compatible with most 1965-1997 Chevrolet/GM fuel senders. Works with 12 and 16 volt systems.
Features:
• Modern green LED through-the-dial lighting provides clear visibility during nighttime use
• Works with most 1965 to 1997 Chevrolet/GM senders
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes mounting hardware and detailed instructions for installation
• AutoMeter's race proven air-core electric instruments provide quick and accurate readings
• Patented air core meter movement receives extra dampening to help combat fuel slosh in non-baffled tanks
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Air-Core |
| Range | 0 Ω Empty / 90 Ω Full |
| Lighting | LED |
| Voltage | 12 and 16 volt compatible |
Part Number: 3813
UPC: 046074038136
