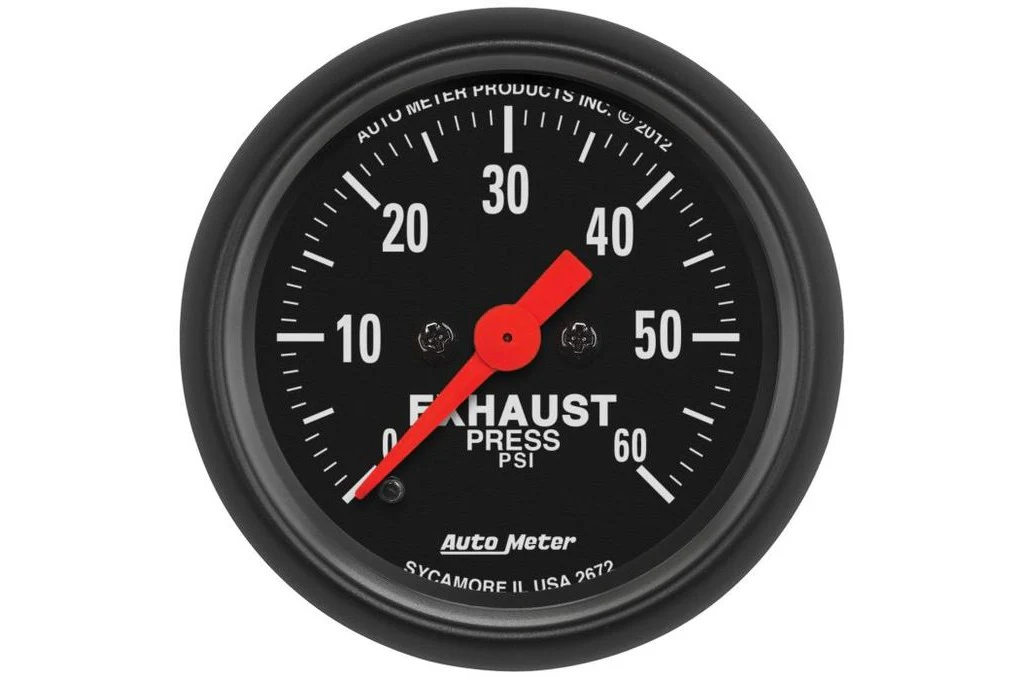

AutoMeter 52mm Z-Series Exhaust Pressure, 0-60 PSI, Stepper Motor (2672)
A digital stepper motor exhaust pressure gauge engineered for precise monitoring of exhaust backpressure to maximize power, efficiency, and turbo longevity. Includes data acquisition grade pressure transducer, install kit, and wiring harness.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Includes data acquisition grade solid-state pressure transducer for unmatched accuracy and durability
• AutoMeter's race proven digital stepper motor electric instruments keep hazardous gases outside of the vehicle
• Self calibration sequence during power up increases accuracy
• 12 and 16 volt compatible with nearly every street car or race car electrical system
• Includes 1/8" NPT stainless steel pressure transducer, copper tubing kit, wiring harness, and mounting hardware
• Analog 0.5-4.5V output enables data logging capability
• Optional particle trap kit available separately for extended transducer lifespan
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | 0-60 PSI |
| Lighting | Incandescent |
| Voltage Compatibility | 12 and 16 volt |
| Pressure Transducer | 1/8" NPT Stainless Steel |
| Data Output | 0.5-4.5V analog |
Part Number: 2672
UPC: 046074026720
Original: $258.08
-65%$258.08
$90.33
Description
A digital stepper motor exhaust pressure gauge engineered for precise monitoring of exhaust backpressure to maximize power, efficiency, and turbo longevity. Includes data acquisition grade pressure transducer, install kit, and wiring harness.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Includes data acquisition grade solid-state pressure transducer for unmatched accuracy and durability
• AutoMeter's race proven digital stepper motor electric instruments keep hazardous gases outside of the vehicle
• Self calibration sequence during power up increases accuracy
• 12 and 16 volt compatible with nearly every street car or race car electrical system
• Includes 1/8" NPT stainless steel pressure transducer, copper tubing kit, wiring harness, and mounting hardware
• Analog 0.5-4.5V output enables data logging capability
• Optional particle trap kit available separately for extended transducer lifespan
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | 0-60 PSI |
| Lighting | Incandescent |
| Voltage Compatibility | 12 and 16 volt |
| Pressure Transducer | 1/8" NPT Stainless Steel |
| Data Output | 0.5-4.5V analog |
Part Number: 2672
UPC: 046074026720
