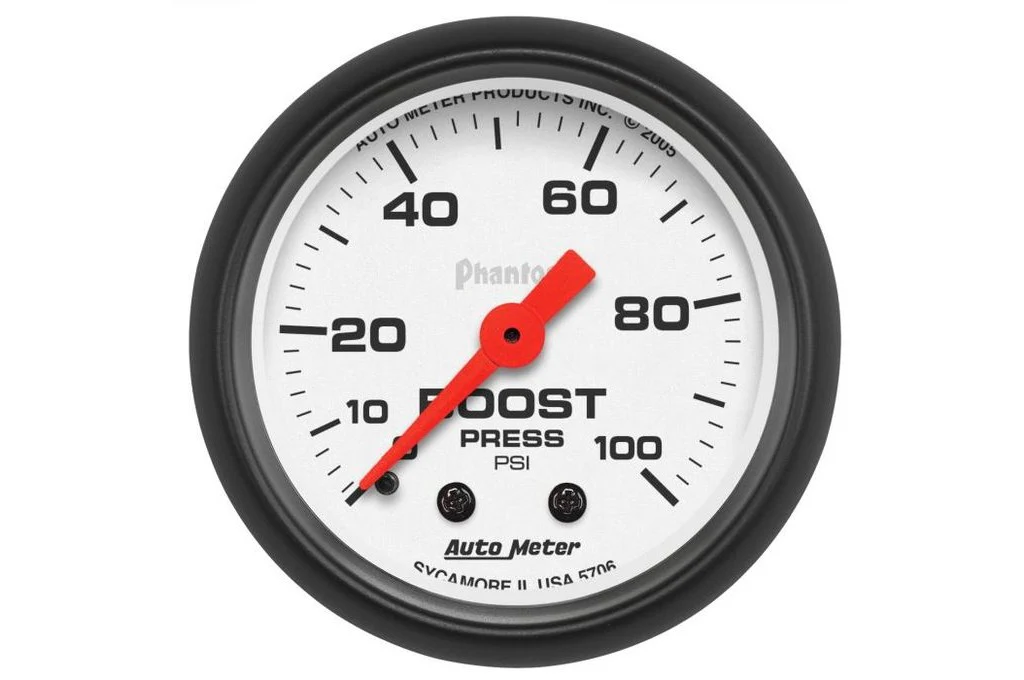

AutoMeter 52mm Phantom Boost Gauge, 0-100 PSI, Mechanical (5706)
Mechanical boost gauge with 2-1/16" diameter, 0-100 PSI range, and incandescent lighting. No electrical system required for operation.
Features:
ā¢ Traditional incandescent lighting illuminates around the perimeter of the dial
ā¢ AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
ā¢ No electrical system required for gauge operation - compatible with every street or race vehicle
ā¢ Mechanical movements provide accuracy and durability even in the harshest environments
ā¢ Ultra-precise bourdon tube meter movement ensures accuracy and durability
ā¢ Includes 1/8" NPT fittings and nylon line kit
ā¢ 1/8" NPT pressure connection requires no electrical hookup for operation
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Mechanical |
| Range | 0-100 PSI |
| Lighting | Incandescent |
| Pressure Connection | 1/8" NPT |
| Included Accessories | 1/8" NPT fittings, 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 10 ft. nylon tubing, bulb and socket assembly, red and green bulb covers, mounting hardware |
Part Number: 5706
UPC: 046074057069
