AMS Alpha Performance R35 GTR Race Intercooler

The AMS Alpha Performance R35 GTR Race Intercooler Kit is available for the 2009-2011 and 2012+ GTR models recommended for use up to 900 HP. Features CAD designed smooth flowing end tanks, high quality TIG-welded construction pressure tested to 50psi, red anodized mounting brackets and the prestigious Alpha logo.

Vehicle Fitment:
2009-2011 Nissan R35 GT-R
2012-2020 Nissan R35 GT-R

Shipping Times:
Ships from AMS 1-5 weeks on average.

Features:

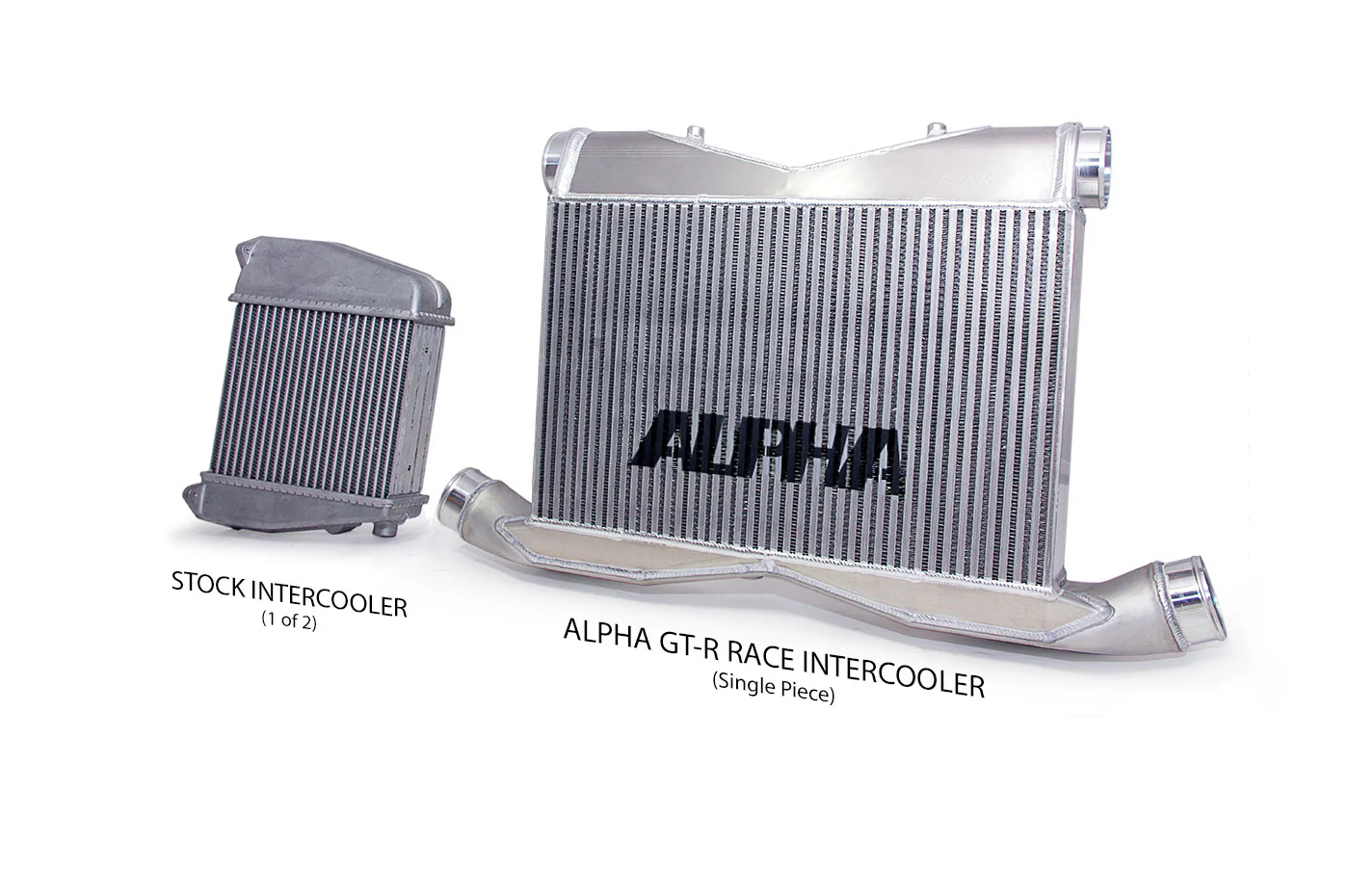

• Provides 92.5% more air volume than stock
• Thick 4.5" deep core
• Vertical flow and twice the fin density than most aftermarket cores for superior cooling

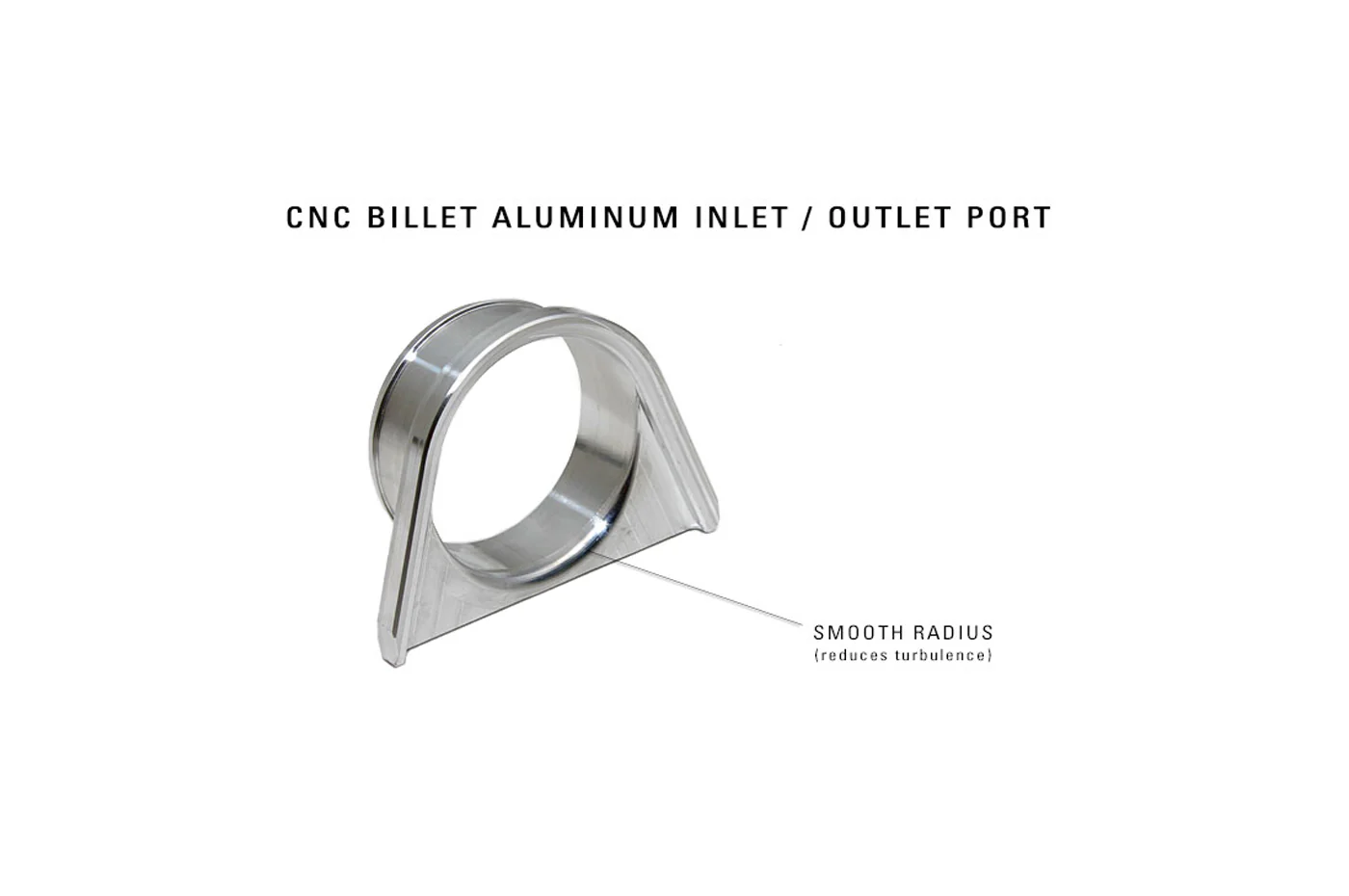

• 3" billet CNC inlet and outlet ports for improved strength and air flow
• Durable 4-ply silicone couplers

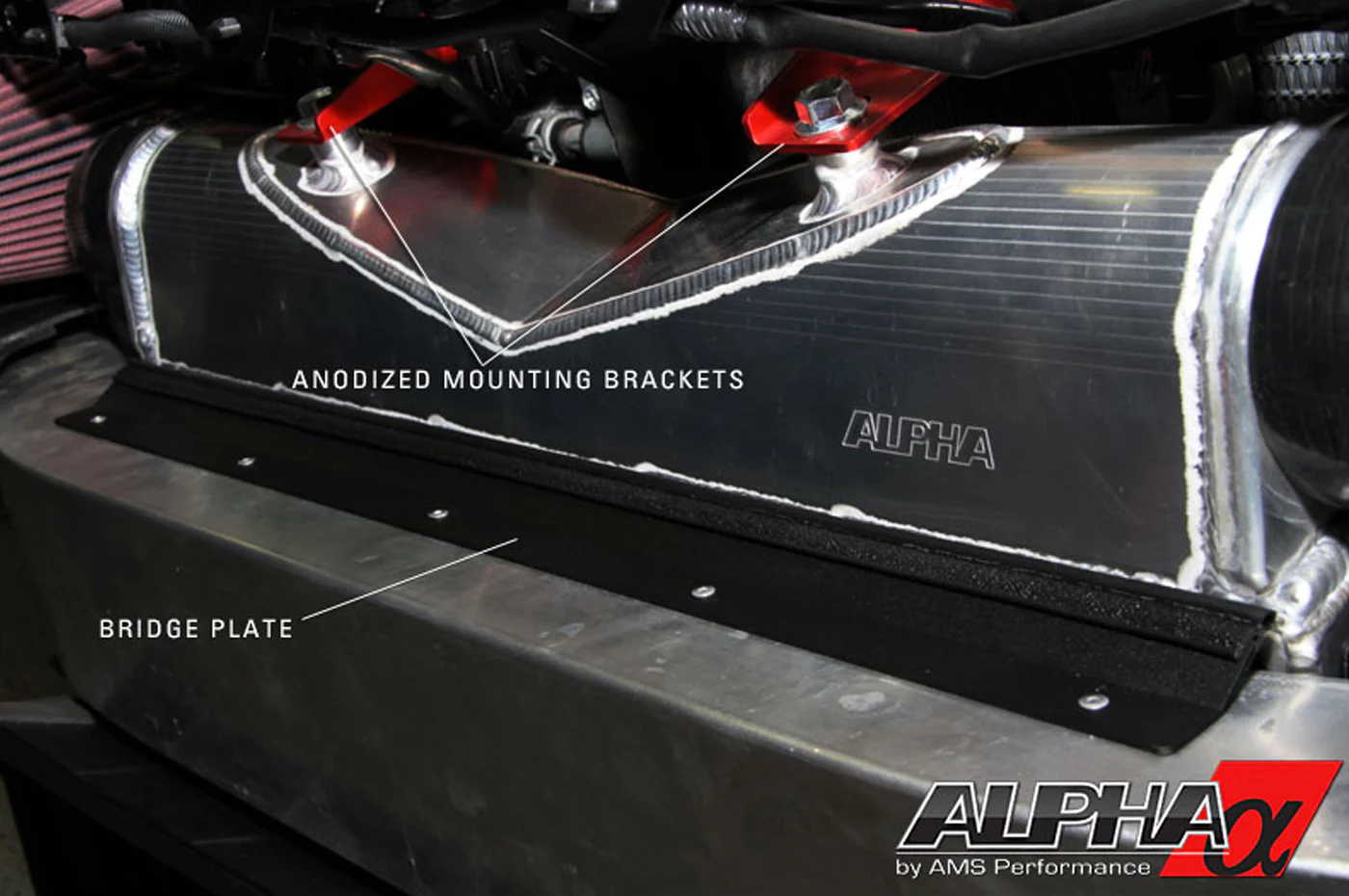

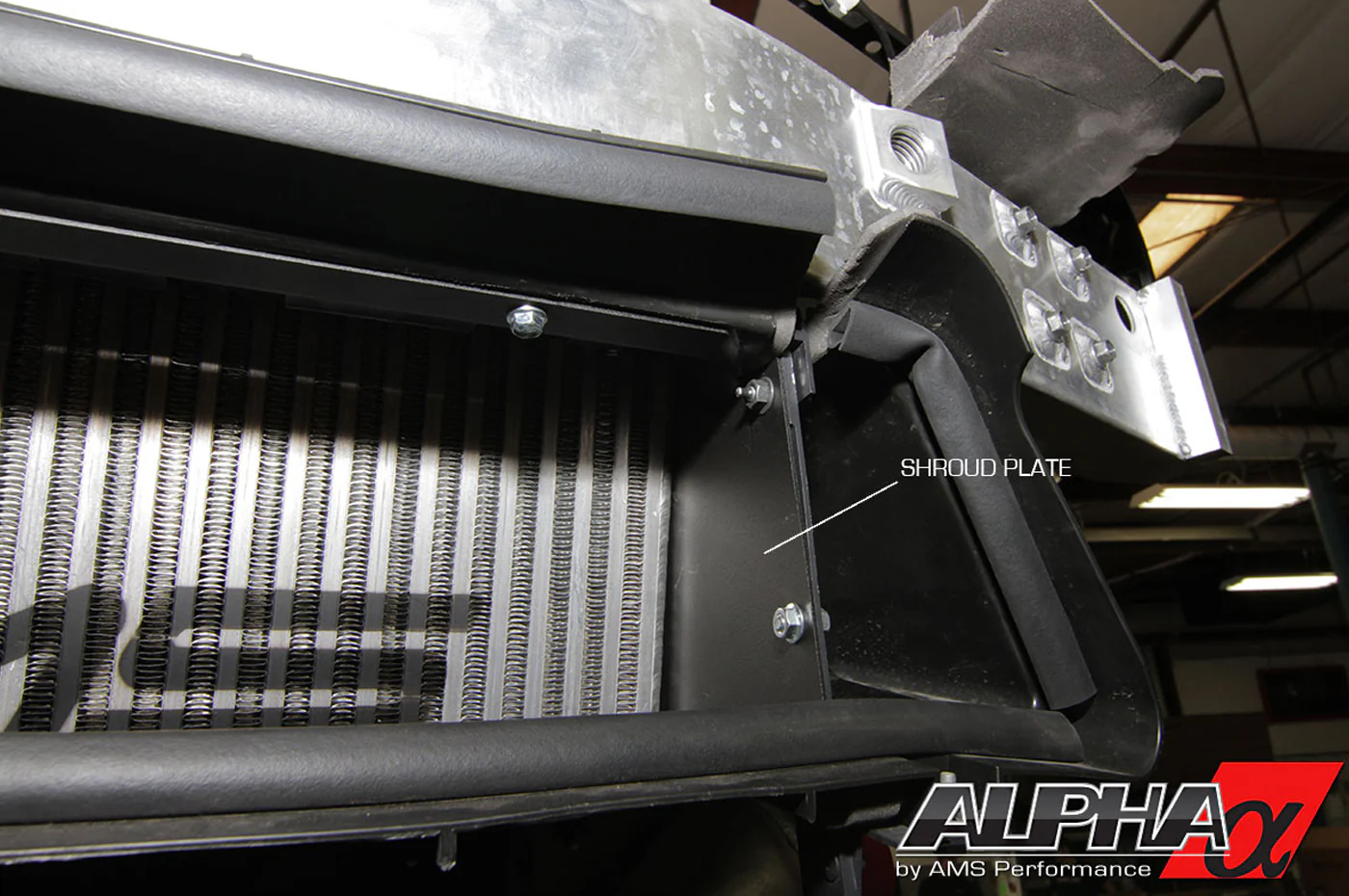

• Shroud and bridge plates to channel air into the intercooler
• Fits without trimming factory crash beam and bumper cover
• Pressure tested to 50psi

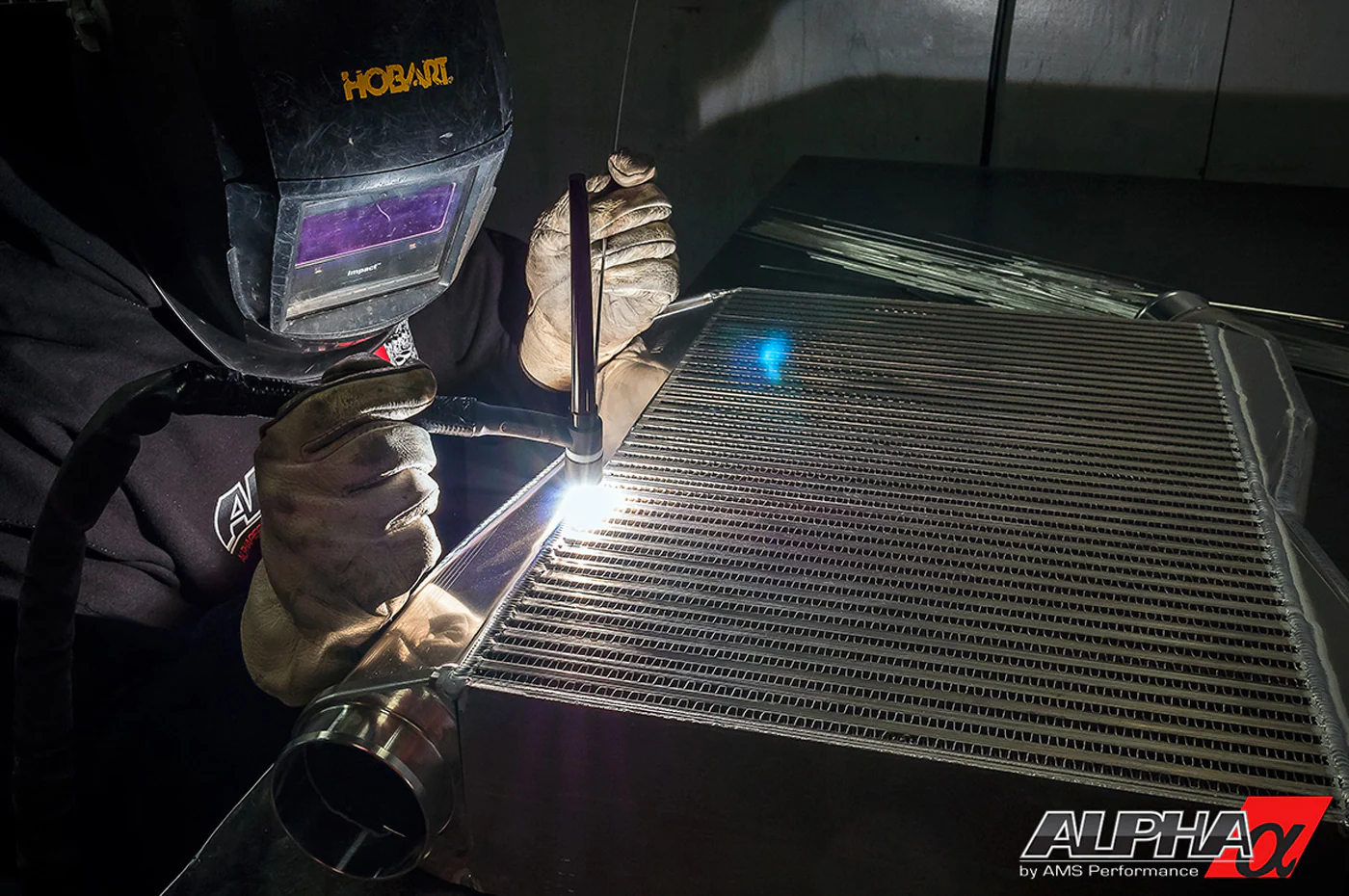

• High quality aluminum TIG-welded construction

Specs:
• Garrett Intercooler Core
• 22x14x4.5" core dimension
• Cast & sheet metal aluminum
• Fits without trimming factory crash beam and bumper cover
• Requires minimal trimming of plastic OEM shroud
• Works with Alpha GT-R piping or any aftermarket 3" intercooler piping following stock routing

Includes:
• Front Mount Intercooler
• 4-Ply silicone couplers
• Hose clamps
• Shroud and bridge plates

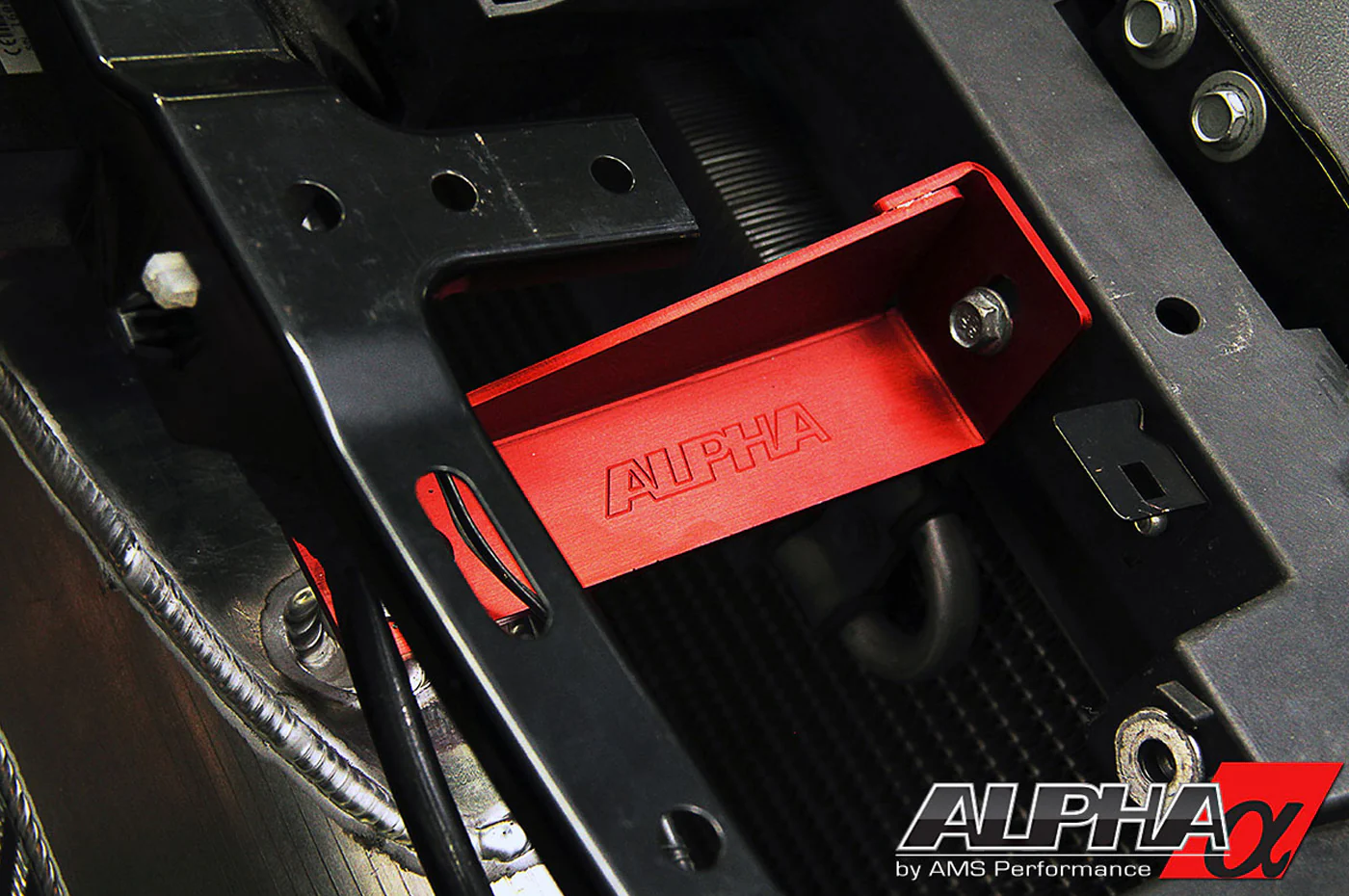

• Mounting brackets
• Fasteners and mounting hardware
• Horn relocation brackets
• Installation Instructions (PDF)

Discounts:
We are sorry, discounts and codes are not available for AMS Products.
