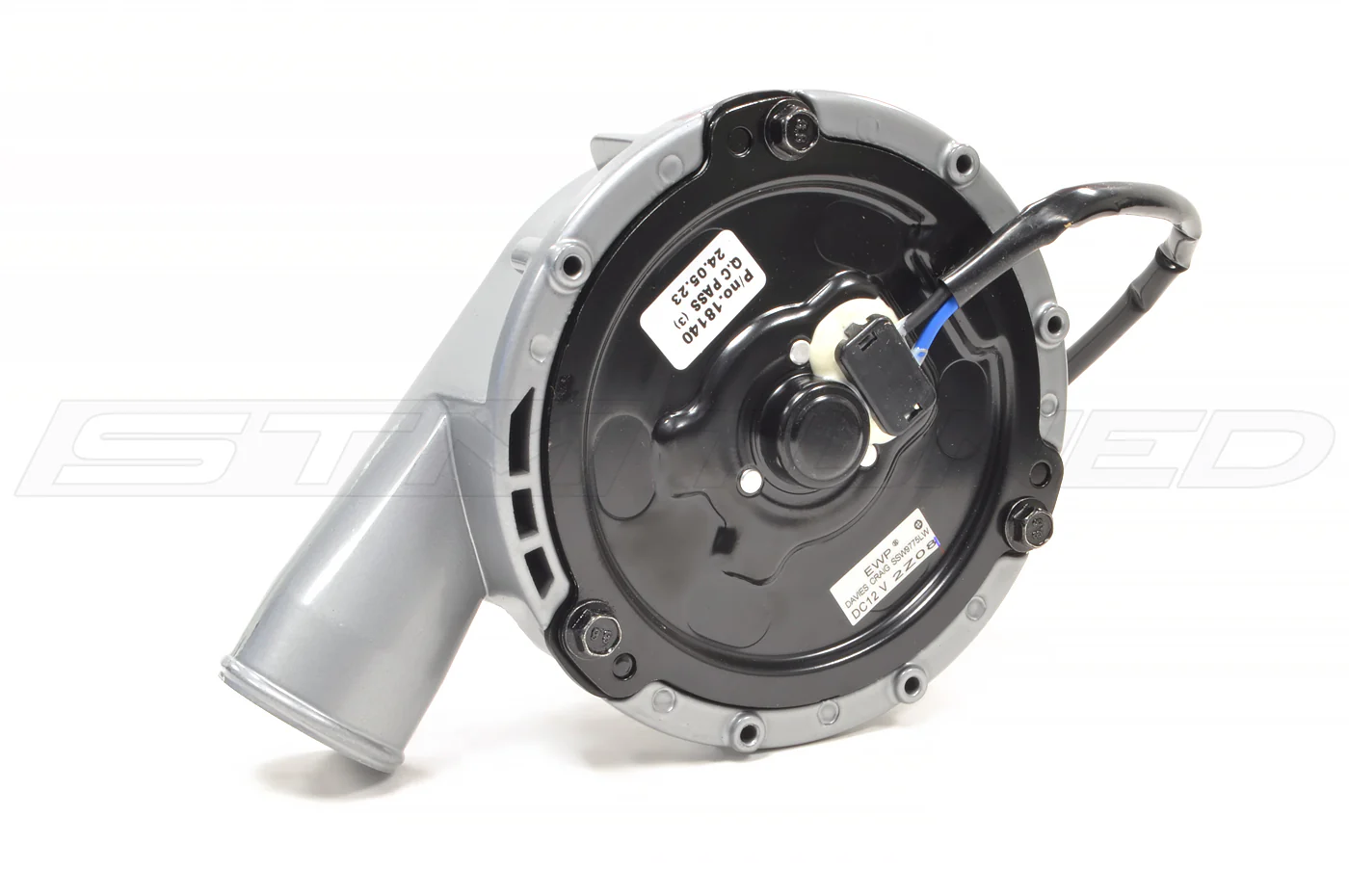

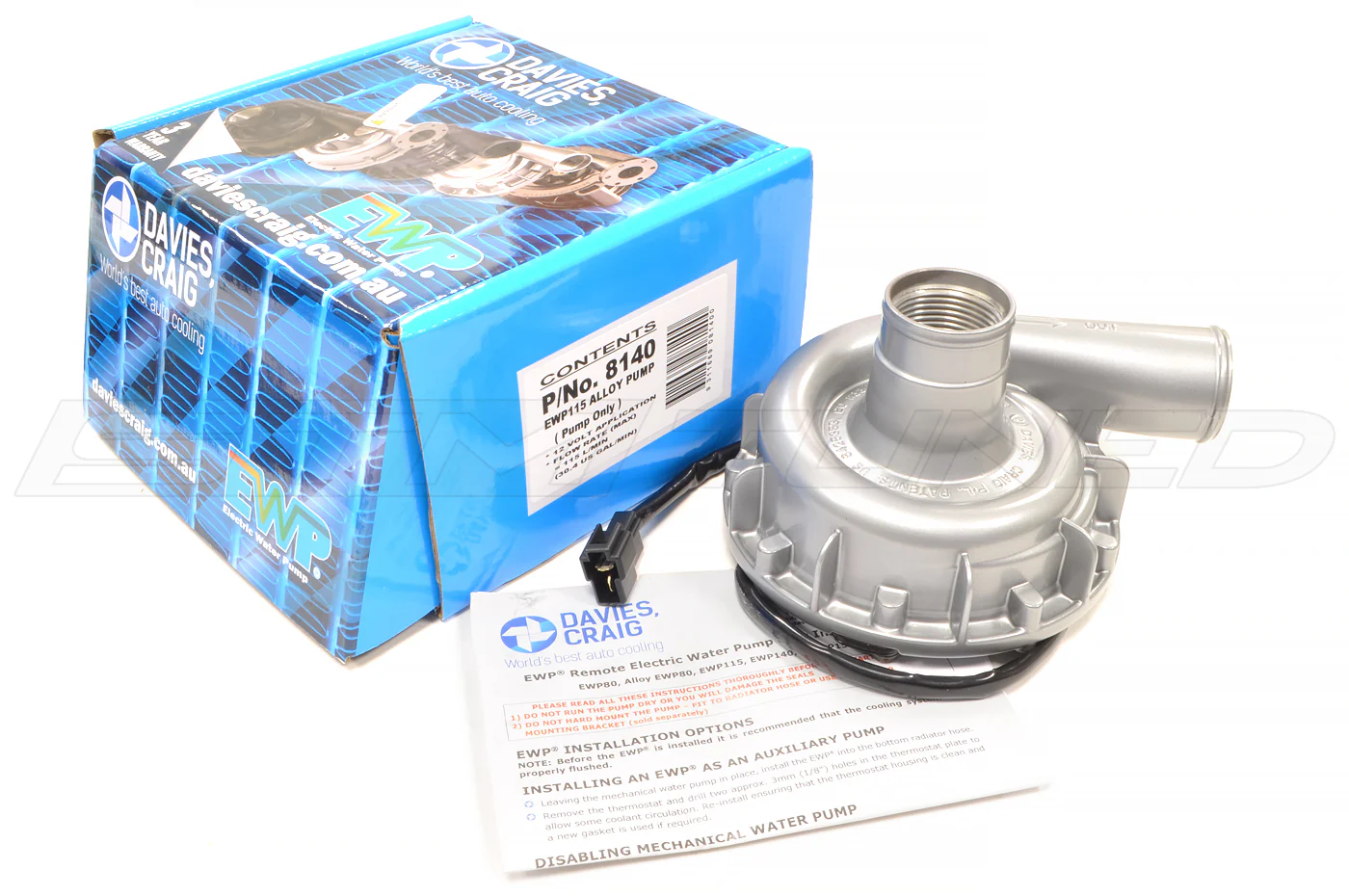

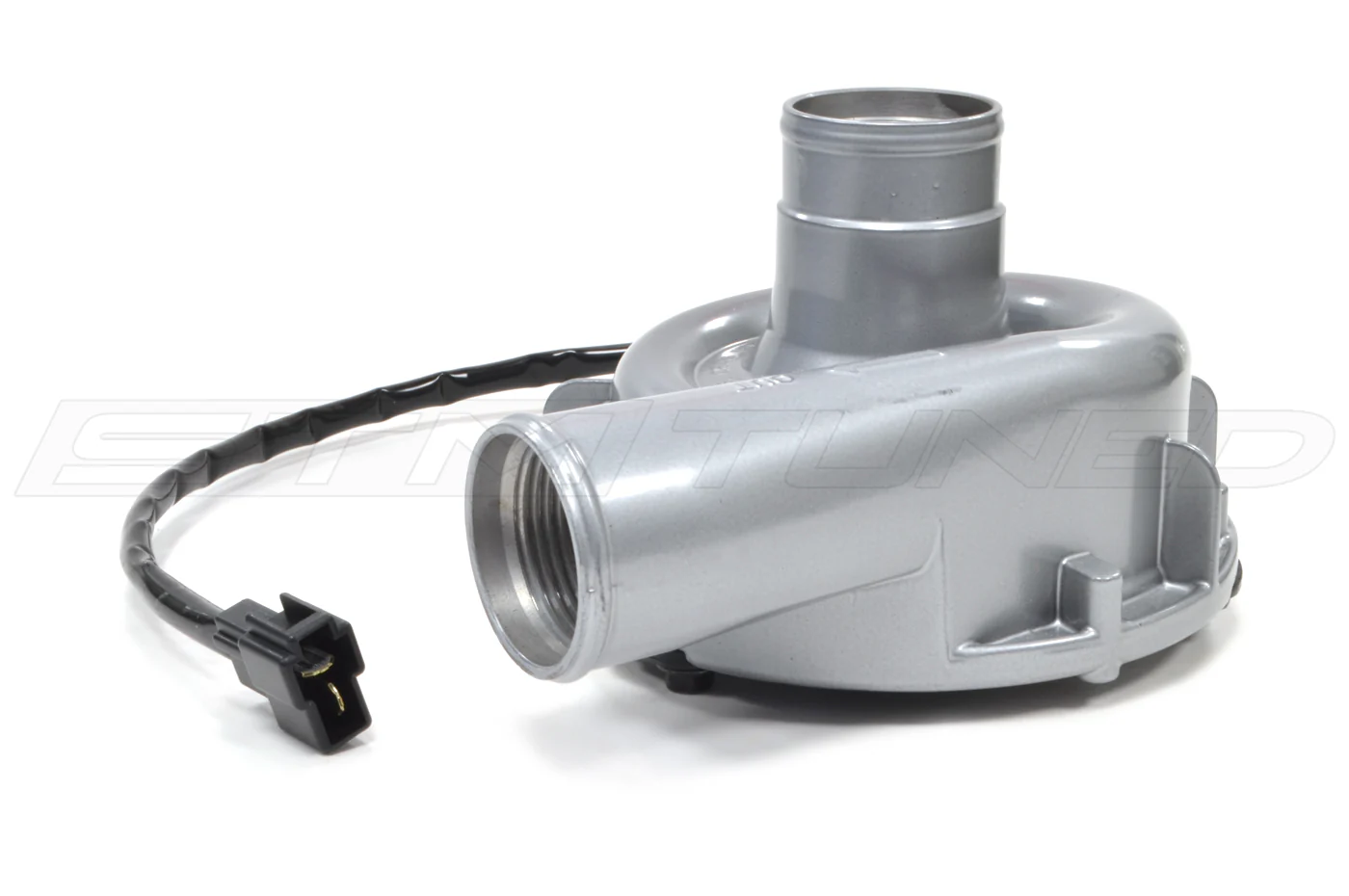

Davies Craig EWP115 12v Electric Water Pump (8140)
The Davies Craig EWP115 universal electric water pump is designed to replace or compliment your existing belt-driven mechanical water pump.
Vehicle Fitment:
Universal Application
More from Davies Craig:
The EWP115 pump is suitable for small, medium, large, high-performance and AWD vehicles to improve engine cooling control and capacity while giving you more power, torque and improved fuel economy.
The EWP115 is a practical alternative to a mechanical belt-driven pump or fitted as an auxiliary pump. Mechanical belt-driven water pumps run directly off the motor and sap engine power. The EWP115 is hardwired into your electrical system, by-passing the engine and releasing up to an additional 13 HP.
Purchase Includes:
(1) Electric Water Pump
Part Number: 8140
UPC: 9311669081400
| Voltage: | 12 Volt Pump |
| Operating voltage: | 3V DC to 15V DC |
| Maximum current: | 10A @ 13V |
| Flow rate (max): | 139 l/min 36.7 g/min |
| Operating temp: | -40° to 120°C (-40° to 248°F) |
| Pump design: | Clockwise centrifugal with volute chamber |
| Pump weight: | 920 grams (2.03 lb) |
| Pump material: | Aluminium (powder coated) |
| Burst pressure: | 500 kPa (72.5 psi) |
| Seal: | Ceramic face seal |
| Self Priming: | No |
| Fits hose sizes: | 35mm to 51mm (1⅜" to 2") Inlet: -16AN (12) Outlet: -16AN (12) |
| Push-On fitting Size: | EWP Inlet & Outlet 38mm with 3mm Sleeve (#8510) 44mm with 6mm Sleeve (#8511) 51mm |
Description
The Davies Craig EWP115 universal electric water pump is designed to replace or compliment your existing belt-driven mechanical water pump.
Vehicle Fitment:
Universal Application
More from Davies Craig:
The EWP115 pump is suitable for small, medium, large, high-performance and AWD vehicles to improve engine cooling control and capacity while giving you more power, torque and improved fuel economy.
The EWP115 is a practical alternative to a mechanical belt-driven pump or fitted as an auxiliary pump. Mechanical belt-driven water pumps run directly off the motor and sap engine power. The EWP115 is hardwired into your electrical system, by-passing the engine and releasing up to an additional 13 HP.
Purchase Includes:
(1) Electric Water Pump
Part Number: 8140
UPC: 9311669081400
| Voltage: | 12 Volt Pump |
| Operating voltage: | 3V DC to 15V DC |
| Maximum current: | 10A @ 13V |
| Flow rate (max): | 139 l/min 36.7 g/min |
| Operating temp: | -40° to 120°C (-40° to 248°F) |
| Pump design: | Clockwise centrifugal with volute chamber |
| Pump weight: | 920 grams (2.03 lb) |
| Pump material: | Aluminium (powder coated) |
| Burst pressure: | 500 kPa (72.5 psi) |
| Seal: | Ceramic face seal |
| Self Priming: | No |
| Fits hose sizes: | 35mm to 51mm (1⅜" to 2") Inlet: -16AN (12) Outlet: -16AN (12) |
| Push-On fitting Size: | EWP Inlet & Outlet 38mm with 3mm Sleeve (#8510) 44mm with 6mm Sleeve (#8511) 51mm |
