632605CE-4 Manley Pistons FA20/4U-GSE for BRZ FRS GT86
This set of Manley Pistons for the FA20 Subaru BRZ and 4U-GSE Scion FR-S and Toyota GT 86 includes a full set of 4 pistons, wrist pins, ring sets and round wire locks. Please review all information carefully.
See more Manley Pistons for the FA20/4U-GSE BRZ FRS GT86
Vehicle Fitment:
Subaru BRZ (FA20)
Scion FR-S (4U-GSE)
Toyota GT 86 (4U-GSE)
Piston Specs:
Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 high strength material
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier second ring
• Round wire locks included
• Recommended piston clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Wire Locks
Images:

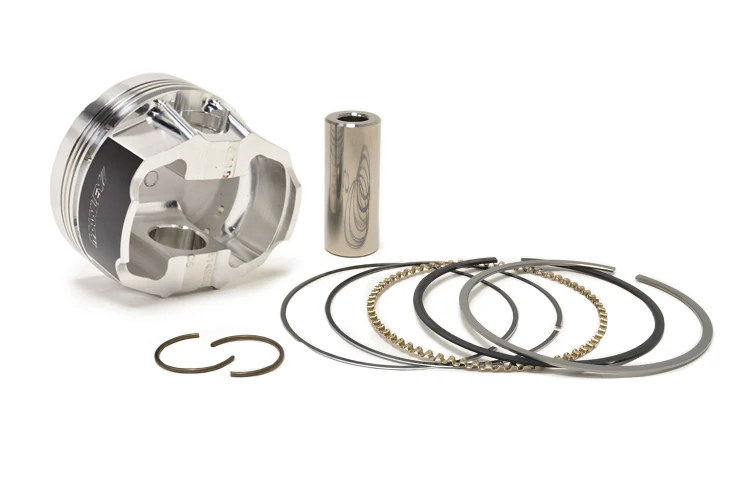

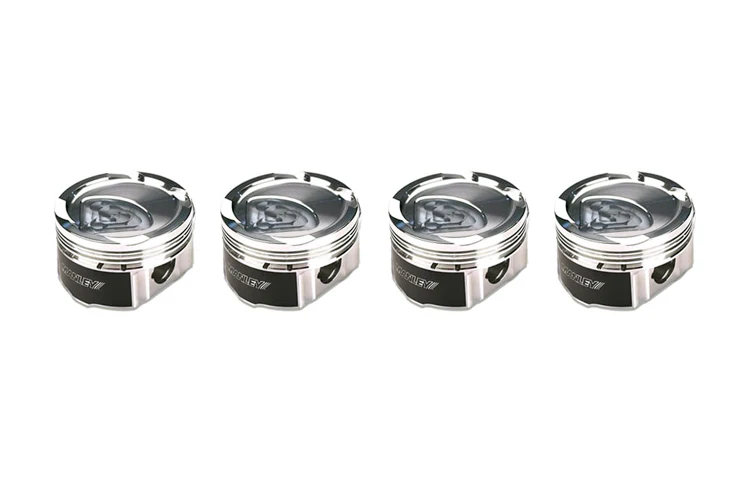

Pistons will vary by application. Images are for reference.
See more Manley Pistons for the FA20/4U-GSE BRZ FRS GT86
Vehicle Fitment:
Subaru BRZ (FA20)
Scion FR-S (4U-GSE)
Toyota GT 86 (4U-GSE)
Piston Specs:
| Part Number: | 632605CE‑4 |
| Pin: | Extreme .210" Wall |
| Bore Size: | 86.5mm (+.5mm) |
| Rod Length: | 5.090" |
| Stroke: | 86mm Standard Stroke (2.0L) |
| Comp Distance: | 1.285" |
| Dome Volume: | -11.4 cc |
| Compression Ratio: | 10.0:1 |
| Piston Type: | Dish |
| Weight: | 334 Grams |
| Ring Set: | 46866DT‑4 |
• Moly Coated Skirts
• 2618 high strength material
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier second ring
• Round wire locks included
• Recommended piston clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Wire Locks
Images:
Pistons will vary by application. Images are for reference.
See more Manley Parts
