625EGR1-1 Manley Piston VR38DETT for R35 GTR
This Manley Piston for the R35 GTR is sold individually. Price includes one piston, one pin, one ring set and round wire locks. Please review all information carefully.
These pistons feature skirt diameters that correspond to the OEM Grade 1, 2 or 3 bores resulting in a piston to wall clearance range of .0032" - .0039". Check the bore grades on the back of your block and order the appropriate quantities of Grade 1, 2 or 3 pistons. (Sold as -1 individual pieces, not sets.)
See more Manley Pistons for the VR38DETT R35 GTR
Vehicle Fitment:
VR38DETT
Nissan R35 GT-R
Piston Specs:
Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 High Strength Material
• Offset Wrist Pin for Quiet Start-Ups
• Pressure Balance Groove
• Will Accommodate +1mm Valve Sizes
• Premium Steel Top Ring Set with Napier Second Ring
• 9-13 Pound Tension Oil Ring
• Round Wire Locks
Included Pin:
• Extreme Duty Series
• 9310 Alloy
• Pin Part Number (42546)
• .210" Wall
• 147 Grams
• 2.500" Long
• 23mm Diameter
Includes:
(1) Piston
(1) Piston Ring Set
(1) Wrist Pin
(1) Wire Locks
Images:
Pistons will vary by application. Images are for reference.
These pistons feature skirt diameters that correspond to the OEM Grade 1, 2 or 3 bores resulting in a piston to wall clearance range of .0032" - .0039". Check the bore grades on the back of your block and order the appropriate quantities of Grade 1, 2 or 3 pistons. (Sold as -1 individual pieces, not sets.)
See more Manley Pistons for the VR38DETT R35 GTR
Vehicle Fitment:
VR38DETT
Nissan R35 GT-R
Piston Specs:
| Part Number: | 625EGR1‑1 |
| Pin: |
Extreme .210" Wall 23mm Diameter |
| Bore Size: | 95.5 Grade 1 |
| Rod Length: | 5.600" |
| Displacement: | 3.8L |
| Stroke: | 88.4mm Standard Stroke |
| Comp Distance: | 1.350" |
| Dome Volume: | -1.5 cc |
| Compression Ratio: | 9.25 |
| Piston Type: | Flat Top |
| Weight: | 449 Grams |
| Ring Set: | 46956‑1 |
• Moly Coated Skirts
• 2618 High Strength Material
• Offset Wrist Pin for Quiet Start-Ups
• Pressure Balance Groove
• Will Accommodate +1mm Valve Sizes
• Premium Steel Top Ring Set with Napier Second Ring
• 9-13 Pound Tension Oil Ring
• Round Wire Locks
Included Pin:
• Extreme Duty Series
• 9310 Alloy
• Pin Part Number (42546)
• .210" Wall
• 147 Grams
• 2.500" Long
• 23mm Diameter

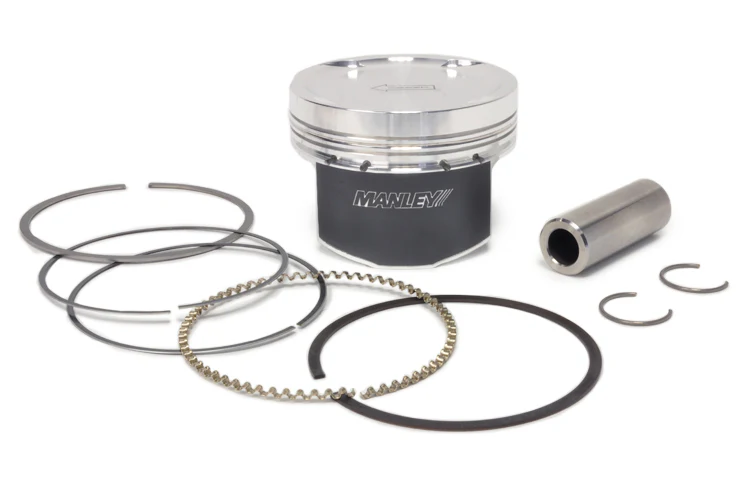

Includes:
(1) Piston
(1) Piston Ring Set
(1) Wrist Pin
(1) Wire Locks

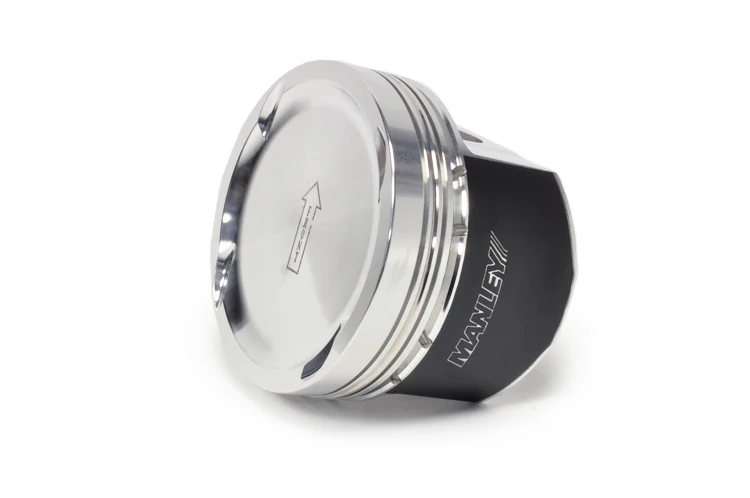

Images:
Pistons will vary by application. Images are for reference.
