618215CE-4 Manley Pistons 4G63 7-Bolt & 4G64
Manley Pistons are sold as a set of 4 with wrist pins, rings and spiral locks.
See more Manley Pistons for the 7-Bolt DSM
See more Manley Pistons for the 4G64 with 4G63 Head.
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
Also fits 4G64 with 4G63 Head
Please Note:
This piston set has the same specs for a couple different engine builds. Please review all information carefully.
Piston Specs for 2.1L 4G63 7-Bolt:
Piston Specs for 2.2L 4G64 with 4G63 Head:
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks

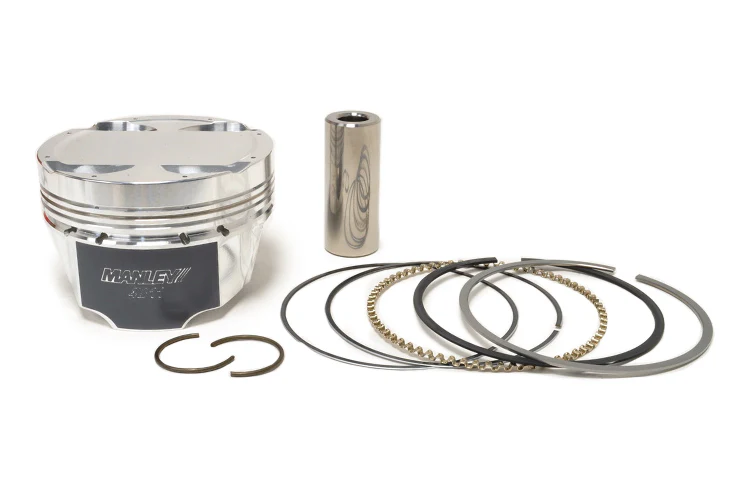

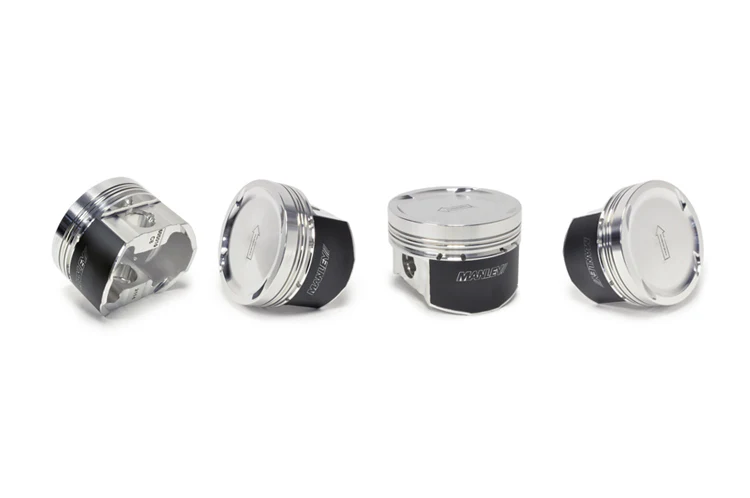

Images:
Pistons will vary by application. Images are for reference.
See more Manley Pistons for the 7-Bolt DSM
See more Manley Pistons for the 4G64 with 4G63 Head.
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
Also fits 4G64 with 4G63 Head
Please Note:
This piston set has the same specs for a couple different engine builds. Please review all information carefully.
Piston Specs for 2.1L 4G63 7-Bolt:
| Part Number: | 618215CE‑4 |
| Pin: |
Extreme Duty Pin .210" Wall (9310 Alloy) .866" / 22mm Pin |
| Bore Size: | 86.5 +1.5mm |
| Rod Length: | 150 mm |
| Stroke: | 94mm Stroker (2.1L) |
| Comp Distance: | 1.248" |
| Dome Volume: | -8 cc |
| Cylinder Head cc: |
47 cc for DSM 43 cc for EVO |
| Compression Ratio: |
10.0:1 for DSM 10.5:1 for EVO |
| Piston Type: | Dish |
| Weight: | 335 Grams |
| Ring Set: | 46865‑4 |
Piston Specs for 2.2L 4G64 with 4G63 Head:
| Part Number: | 618215CE‑4 |
| Pin: |
Extreme Duty Pin .210" Wall (9310 Alloy) .866" / 22mm Pin |
| Bore Size: | 86.5 Standard |
| Rod Length: | 156 mm |
| Stroke: | 94mm De-Stroked (2.2L) |
| Comp Distance: | 1.248" |
| Dome Volume: | -8 cc |
| Cylinder Head cc: |
47 cc for DSM 43 cc for EVO |
| Compression Ratio: |
10.0:1 for DSM 10.5:1 for EVO |
| Piston Type: | Dish |
| Weight: | 335 Grams |
| Ring Set: | 46865‑4 |
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
