613000C-4 Manley Pistons for 4G64 with 4G63 Head

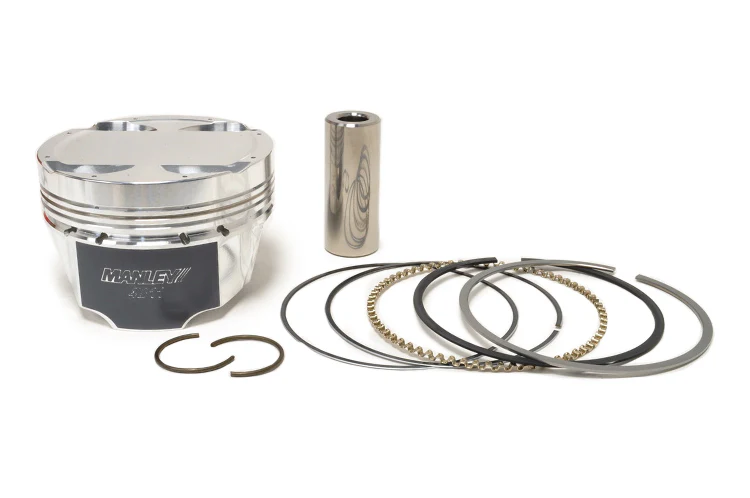

Manley Pistons are sold individually or as a set of 4 with wrist pins, rings and spiral locks. Fits 4G64 with 4G63 cylinder head. Usually used with the 1995-1999 DSM and Evolution 4-9.
See more Manley Pistons for the 4G64 with 4G63 Head.
Vehicle Fitment:
4G64 with 4G63 Head
Piston Specs for 2.4L 4G64 with 4G63 Head:
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
• Wrist Pins are .866" / 22mm
Images:

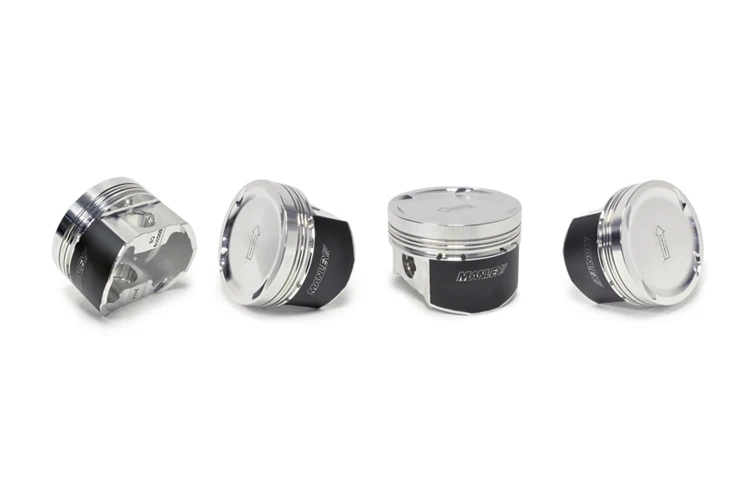

Pistons will vary by application. Images are for reference.
See more Manley Pistons for the 4G64 with 4G63 Head.
Vehicle Fitment:
4G64 with 4G63 Head
Piston Specs for 2.4L 4G64 with 4G63 Head:
| Part Number: | 613000C‑4 (Matched Set of 4) 613000C‑1 (Single Piston) |
| Pin: |
Standard Pin .150" Wall x 2.250" (Premium Chrome Moly) .866" / 22mm Pin |
| Bore Size: | 86.5 Standard |
| Rod Length: | 150 mm |
| Stroke: | 100mm Standard Stroke (2.4L) |
| Comp Distance: | 1.375" |
| Dome Volume: | -23.5 cc |
| Cylinder Head cc: |
47 cc for DSM 43 cc for EVO |
| Compression Ratio: |
8.5:1 for DSM 9.0:1 for EVO |
| Piston Type: | Dish |
| Weight: | 338 Grams |
| Ring Set: | 46865‑4 |
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
• Wrist Pins are .866" / 22mm
Images:
Pistons will vary by application. Images are for reference.
