606000C-4 Manley Pistons 4G63 7-Bolt
Manley Pistons are sold as a set of 4 with wrist pins, rings and spiral locks.
See more Manley Pistons for the 7-Bolt DSM
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
Piston Specs:
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring

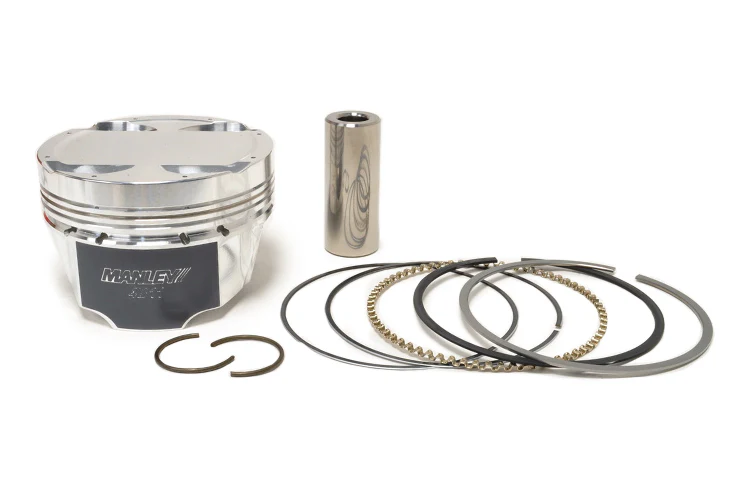

Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks

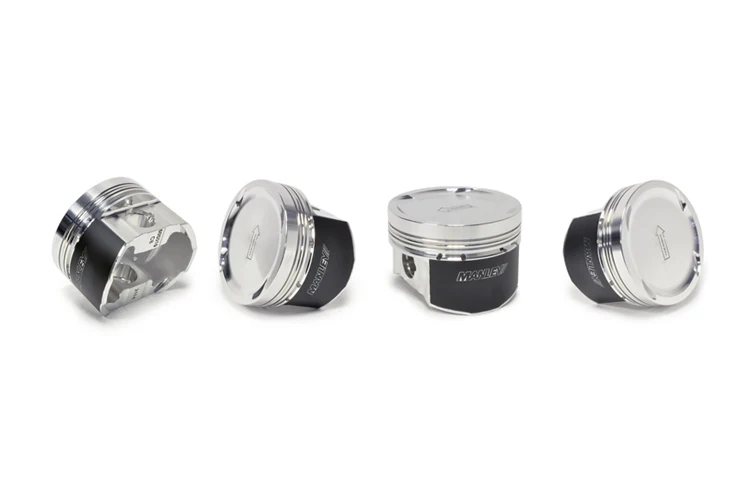

Images:
Pistons will vary by application. Images are for reference.
See more Manley Pistons for the 7-Bolt DSM
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
Piston Specs:
| Part Number: | 606000C‑4 |
| Pin: |
Standard Pin .150" Wall x 2.250" (Premium Chrome Moly) .866" / 22mm Pin |
| Bore Size: | 85 mm (Standard Bore) |
| Rod Length: | 150 mm |
| Stroke: | 88mm Standard Stroke (2.0L) |
| Comp Distance: | 1.375" |
| Dome Volume: | -12 cc |
| Cylinder Head cc: |
47 cc for DSM 43 cc for EVO |
| Compression Ratio: |
8.5:1 for DSM 9.0:1 for EVO |
| Piston Type: | Dish |
| Weight: | 337 Grams |
| Ring Set: | 46850‑4 |
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
See more Manley Parts
$244.73
Original: $699.23
-65%606000C-4 Manley Pistons 4G63 7-Bolt—
$699.23
$244.73
Description
Manley Pistons are sold as a set of 4 with wrist pins, rings and spiral locks.
See more Manley Pistons for the 7-Bolt DSM
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
Piston Specs:
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
See more Manley Pistons for the 7-Bolt DSM
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
Piston Specs:
| Part Number: | 606000C‑4 |
| Pin: |
Standard Pin .150" Wall x 2.250" (Premium Chrome Moly) .866" / 22mm Pin |
| Bore Size: | 85 mm (Standard Bore) |
| Rod Length: | 150 mm |
| Stroke: | 88mm Standard Stroke (2.0L) |
| Comp Distance: | 1.375" |
| Dome Volume: | -12 cc |
| Cylinder Head cc: |
47 cc for DSM 43 cc for EVO |
| Compression Ratio: |
8.5:1 for DSM 9.0:1 for EVO |
| Piston Type: | Dish |
| Weight: | 337 Grams |
| Ring Set: | 46850‑4 |
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
