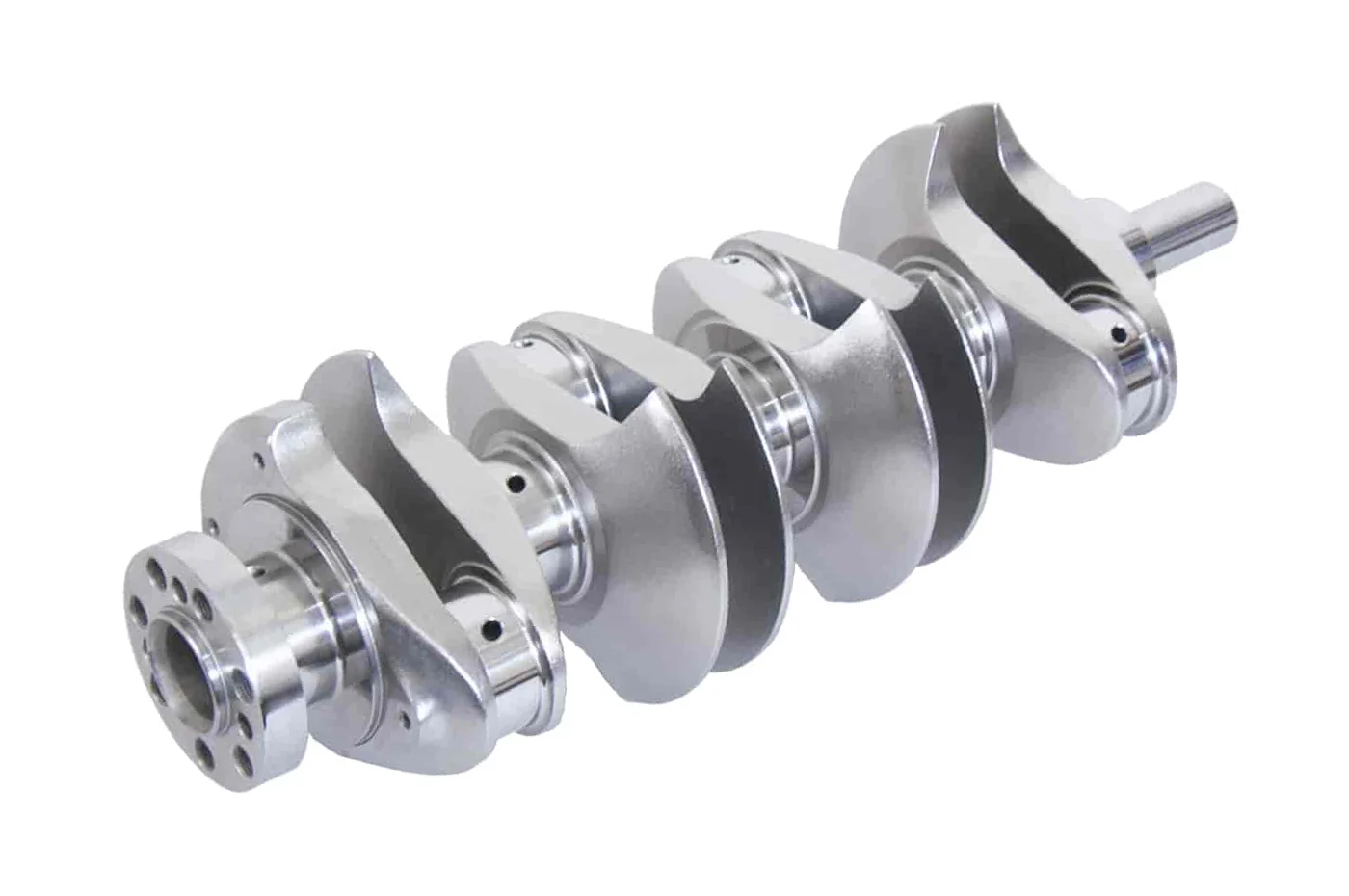

Eagle Billet Crankshaft for 4B11 Evo X (34B137015659)
Eagle billet 4340 steel crank for 4B11 Evo X. The crankshaft stroke is 94mm (3.700"). Please do all your research and consult your engine builder if necessary before purchase. If you need help, just give us a call!
Vehicle Fitment:
2008-2015 Evolution X
Important Notes:
Crankshaft must be balanced to match your specific rods and pistons.
Must be used with 1.165" pin height pistons.
Additional Crank Specs:
ā¢ Material: Billet 4340 Steel
ā¢ Intended Balance: Internal
ā¢ Stroke: 3.700"
ā¢ Rod Journal: 2.046"
ā¢ Rod Journal Width: 0.876"
ā¢ Main Journals: 2.0465"
ā¢ Minimum Rod Length: 5.659"
ā¢ Typical Weight: 35 Pounds

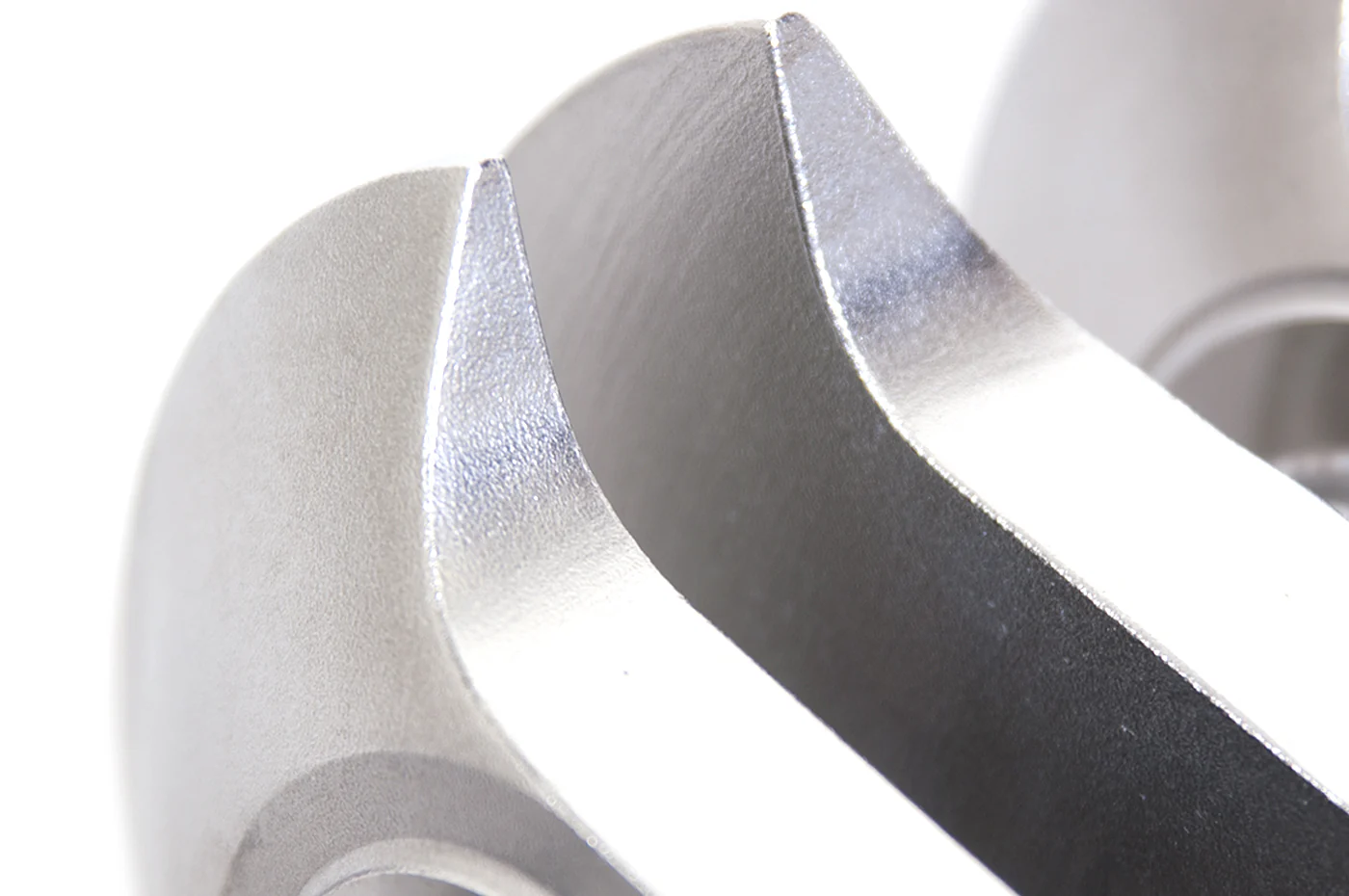

Eagle knife-edged billet 4340 steel cranks feature knife-edged counterweights to dramatically reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.
Purchase Includes:
(1) Crankshaft
Eagle Part Number: 34B137015659
UPC: 793348006840
Vehicle Fitment:
2008-2015 Evolution X
Important Notes:
Crankshaft must be balanced to match your specific rods and pistons.
Must be used with 1.165" pin height pistons.
Additional Crank Specs:
ā¢ Material: Billet 4340 Steel
ā¢ Intended Balance: Internal
ā¢ Stroke: 3.700"
ā¢ Rod Journal: 2.046"
ā¢ Rod Journal Width: 0.876"
ā¢ Main Journals: 2.0465"
ā¢ Minimum Rod Length: 5.659"
ā¢ Typical Weight: 35 Pounds
Eagle knife-edged billet 4340 steel cranks feature knife-edged counterweights to dramatically reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.
Purchase Includes:
(1) Crankshaft
Eagle Part Number: 34B137015659
UPC: 793348006840
See more Eagle Products
