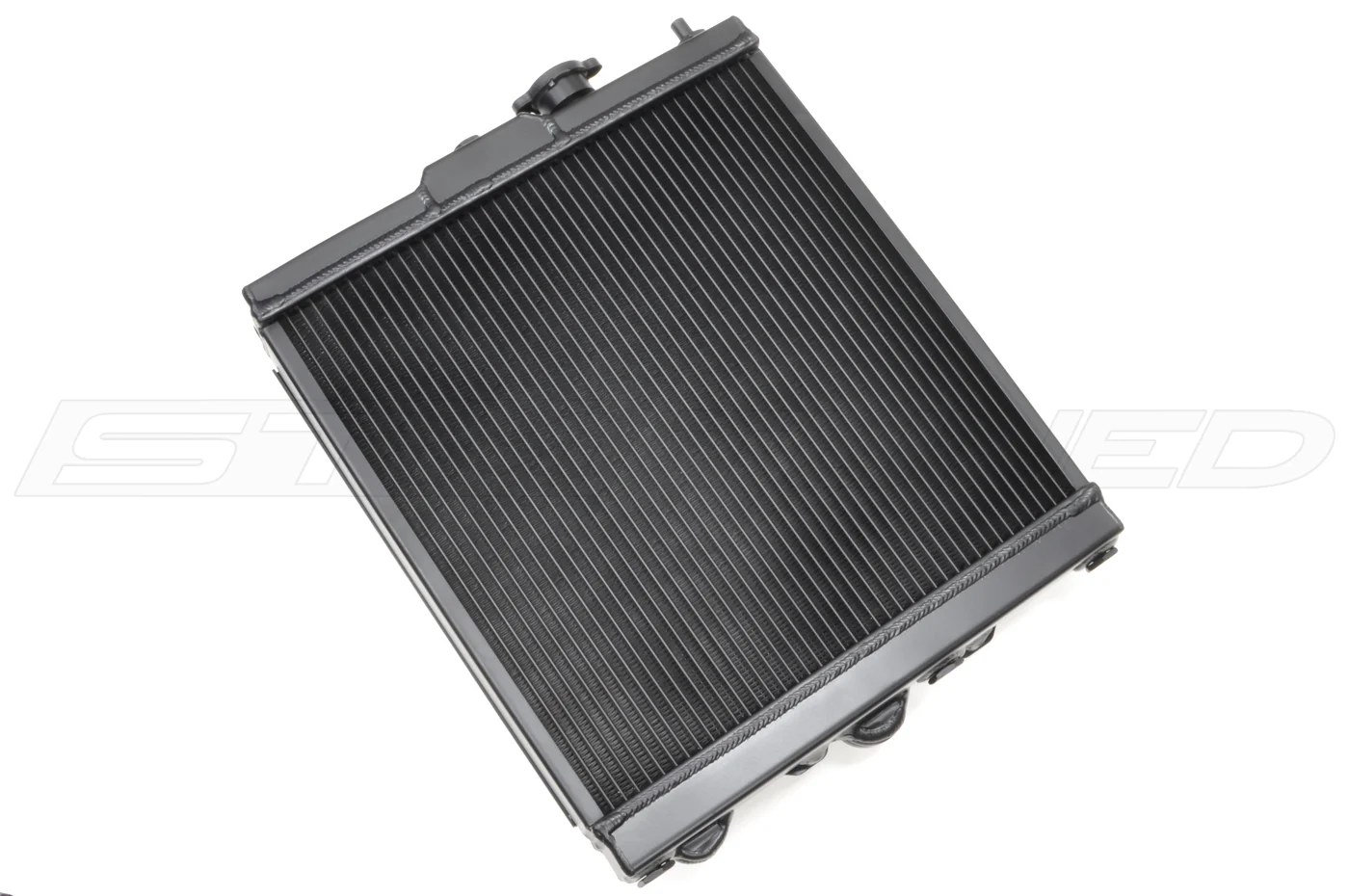

CSF Ultimate Half-Radiator Kit for Evo 7/8/9 & EG/EK Civic (2858X 2858XB)

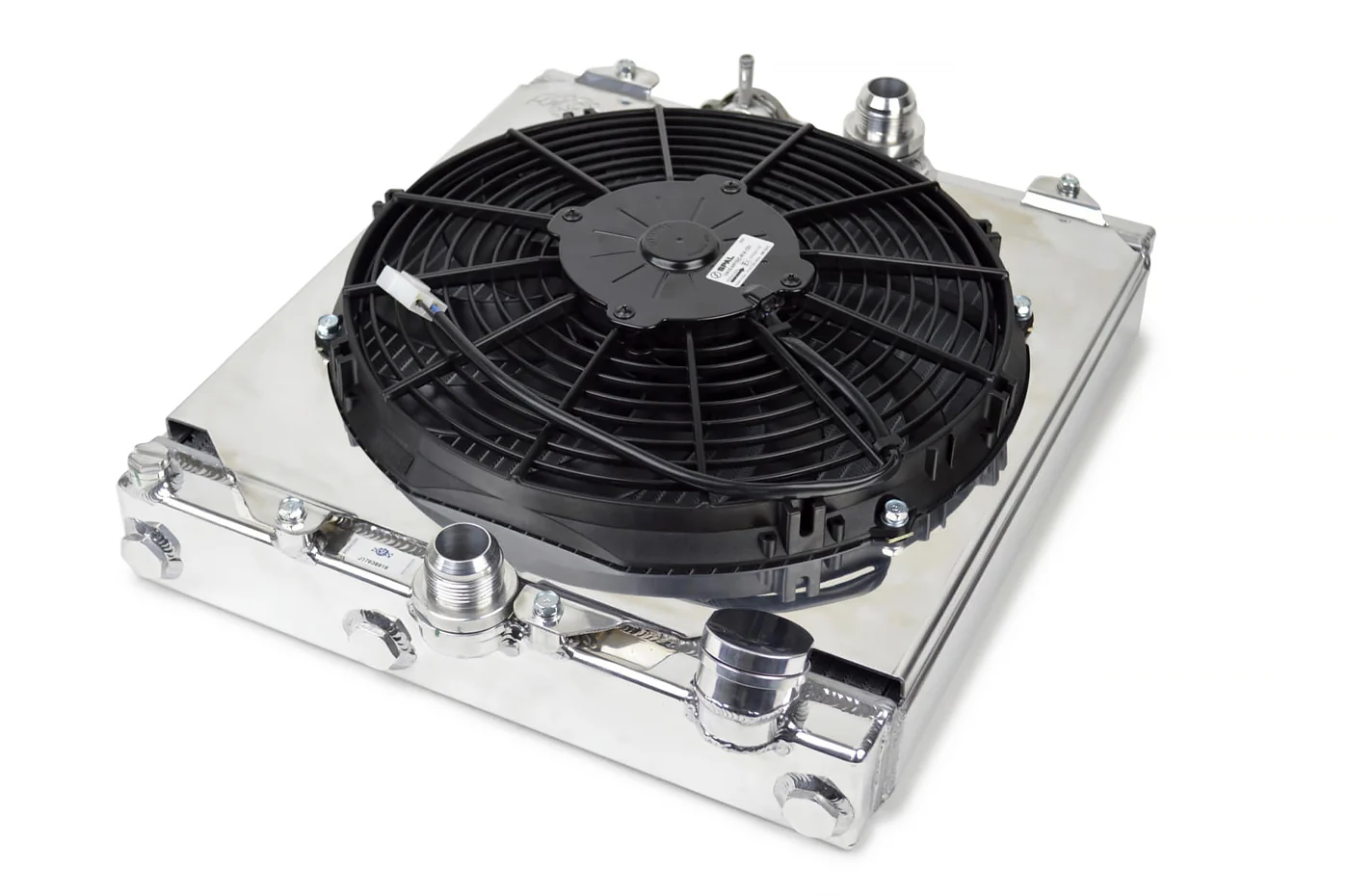

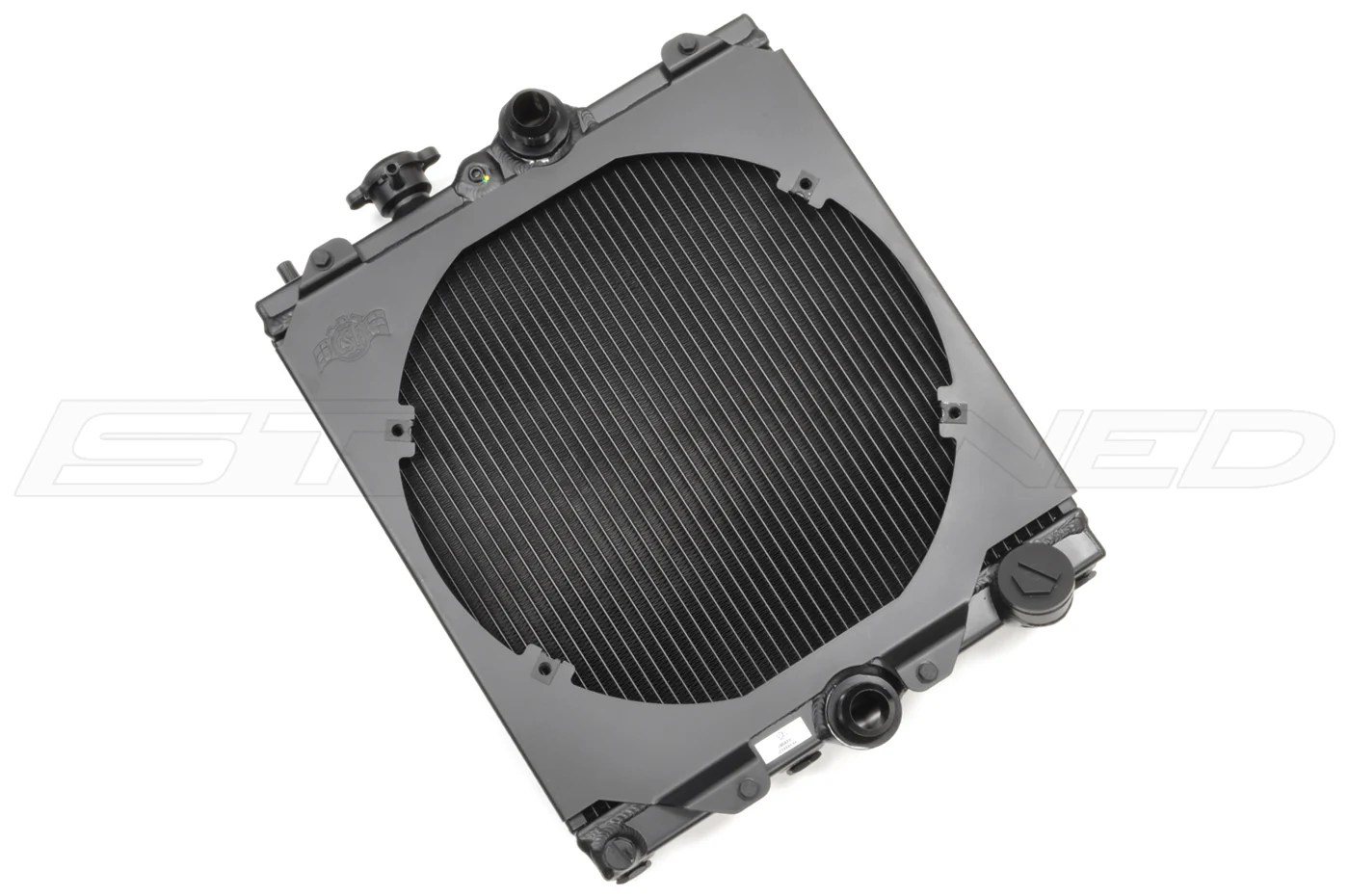

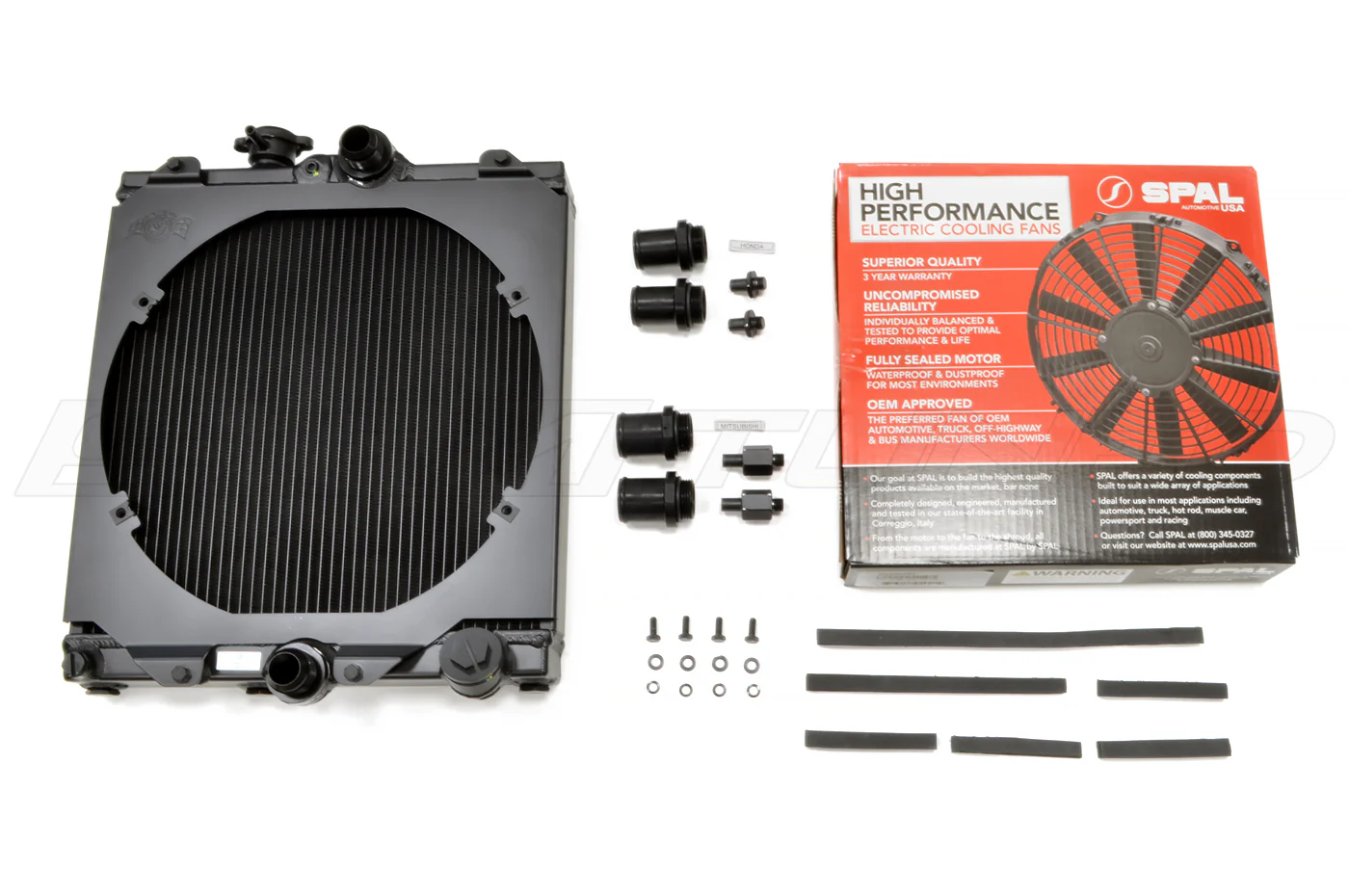

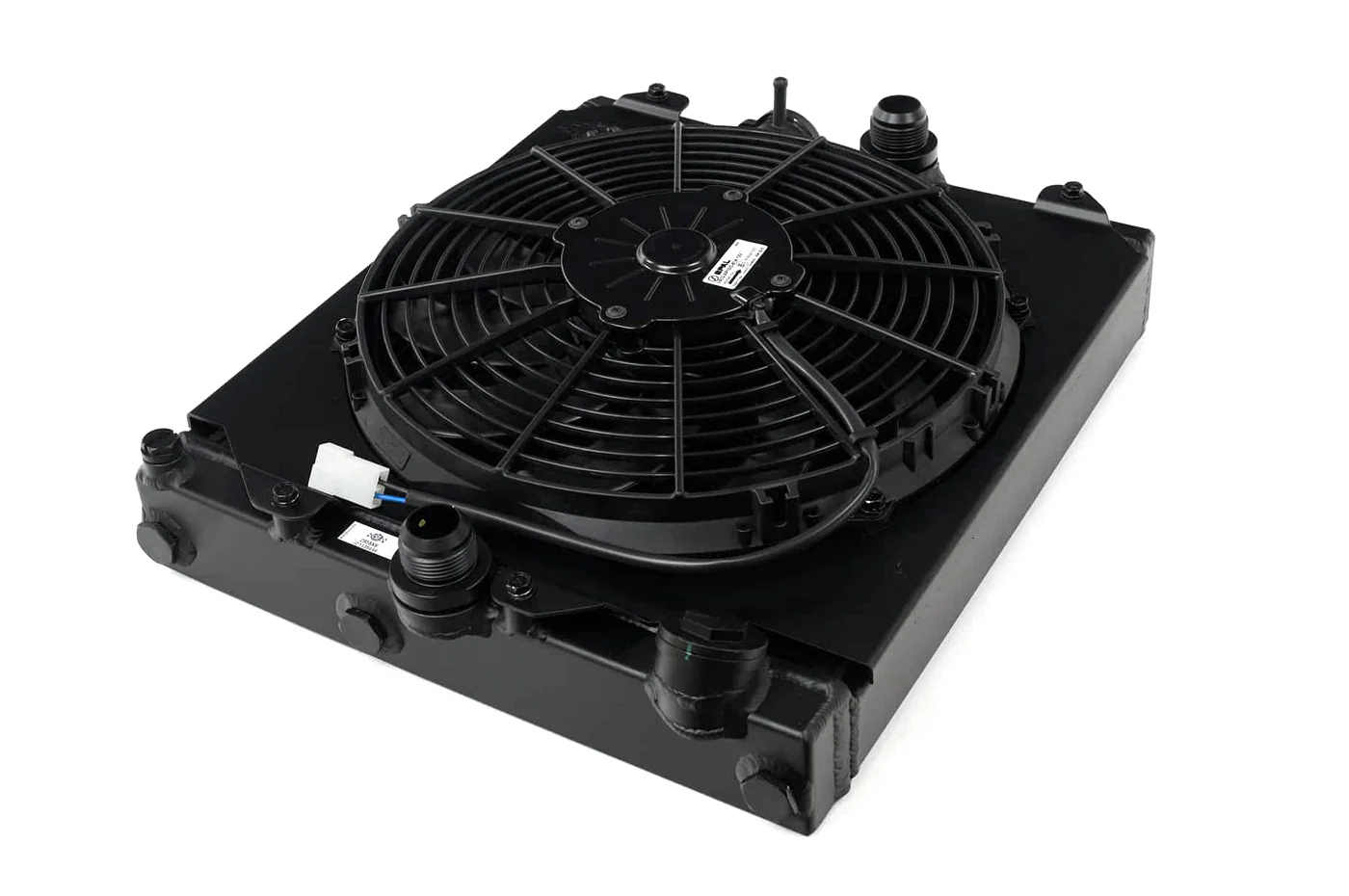

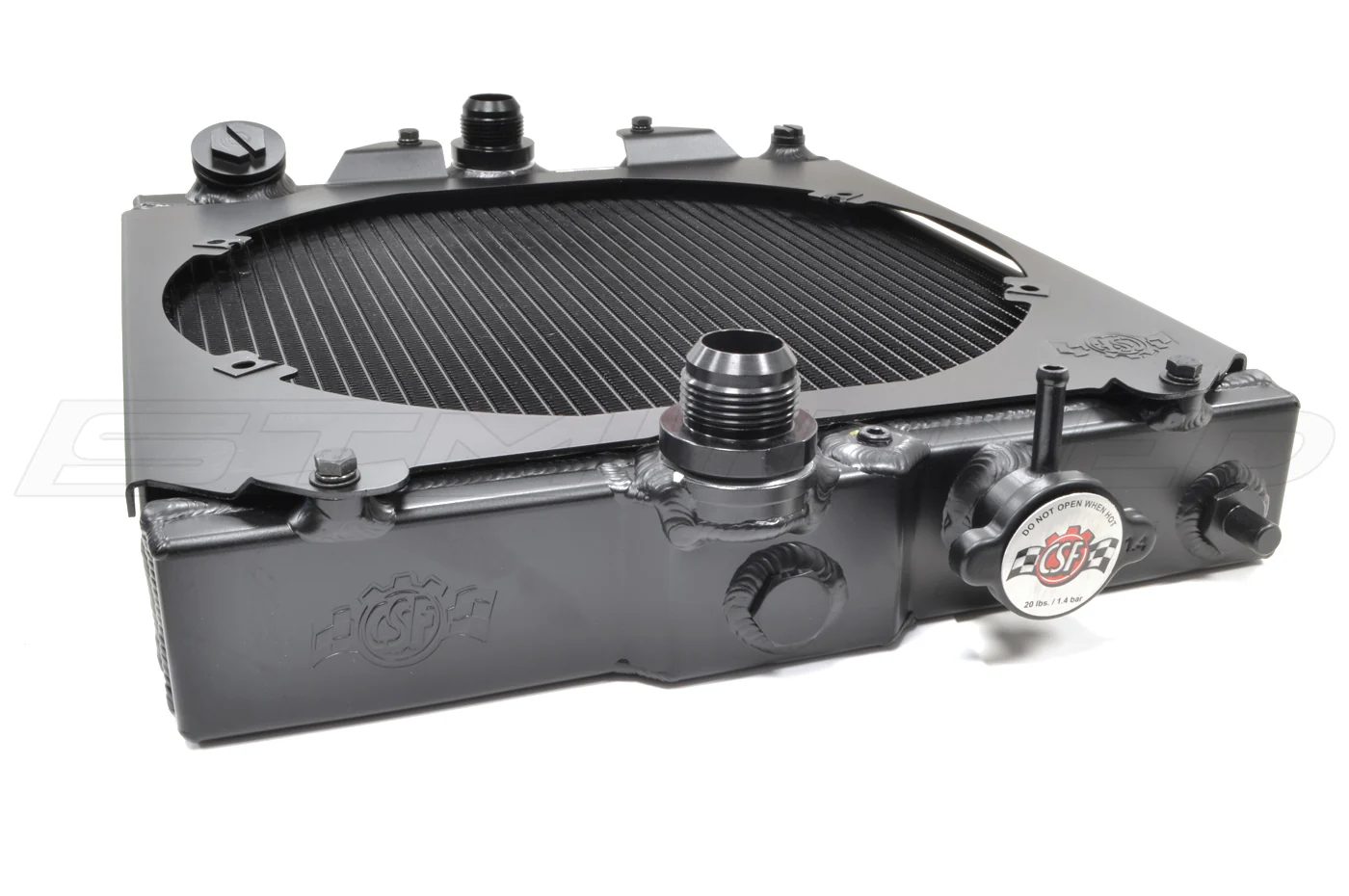

This CSF ultimate half-sized radiator kit fits Evo 7/8/9 and EG/EK Civic. Comes with an aluminum fan shroud and 12" SPAL fan. Includes screw-in hose outlet fittings that can be used with the factory hoses or for -16AN. Available polished aluminum or stealth black.

Vehicle Fitment:
2001-2006 Evolution 7/8/9
1992-2000 Honda Civic EG/EK
Can also be used for a universal custom fit

More from CSF:
CSF has done it again! Taking it one step further with everything we've learned and developed on our other industry-leading universal radiators, CSF has created the Ultimate half radiator with direct fitment for the most popular 92-00 Honda Civic platform. Even better, it can be used as a universal radiator and comes with a direct-fitment kit for Mitsubishi Evolution 7/8/9 models as well. A true innovation of the industry’s #1 selling model.

• 2 Row 42mm High-Performance Core by CSF
• B-Tube Technology and Ultra-Efficient 6mm Tall Multi-Louvered Fins
• -16AN Male Connections

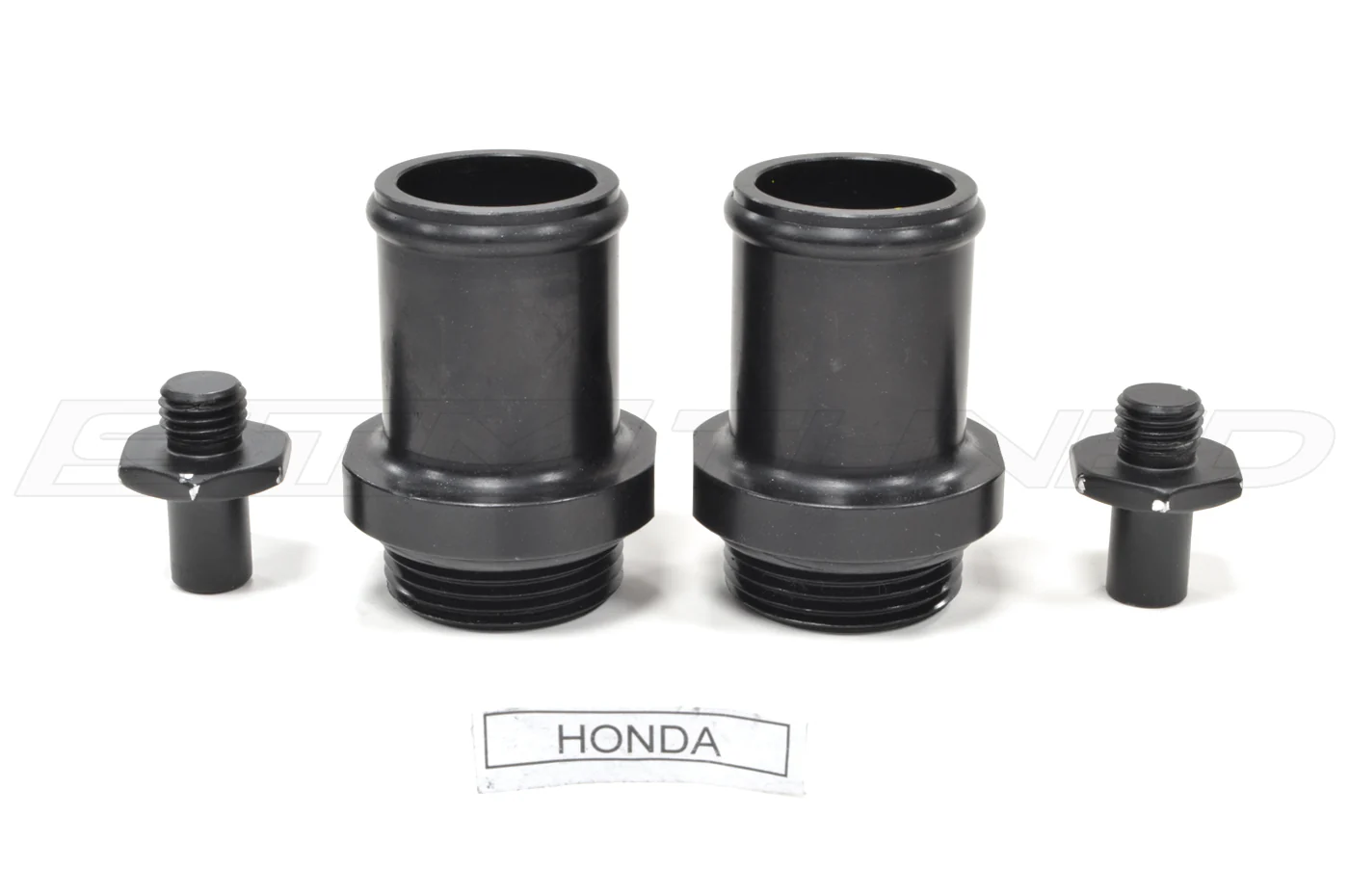

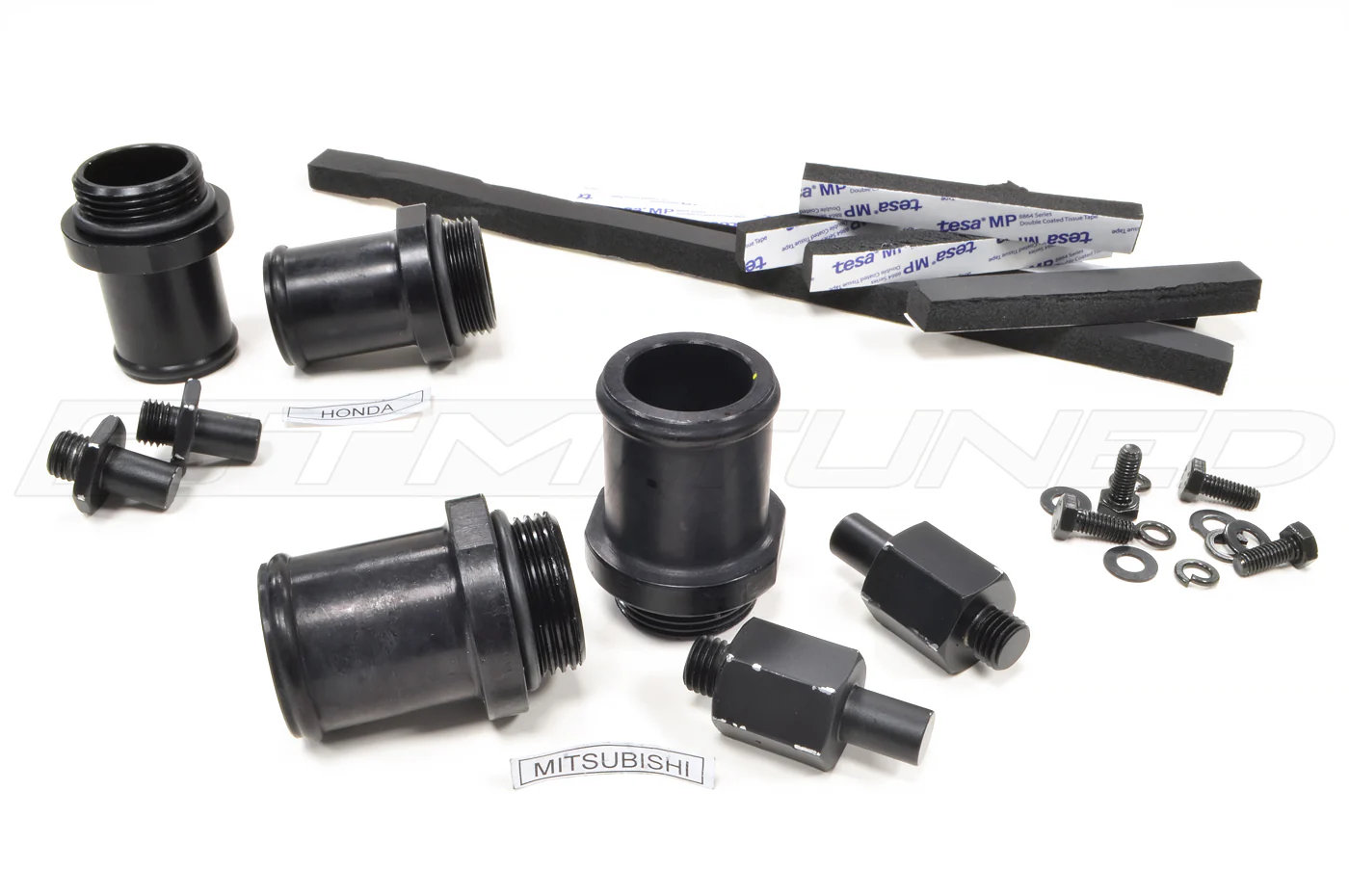

• OEM Style Fittings for Honda/Acura 1.25"

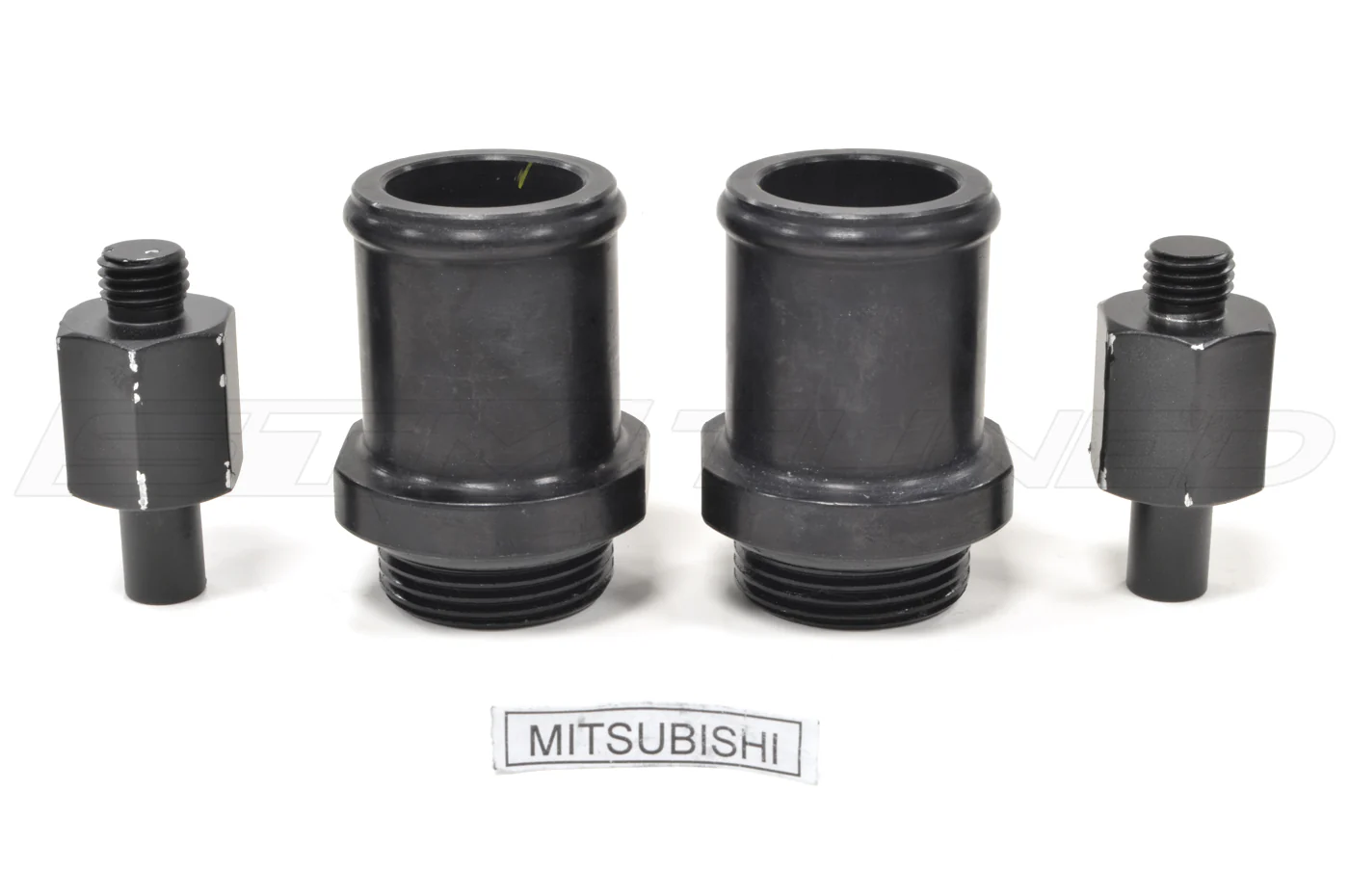

• OEM Style Fittings for Evo 7/8/9 1.375"
• Threaded Bung size and thread pitch: 1 5/16” x 12G
• Universal Mounting Pins Included – 2 Different Lengths for Multiple Installation Configurations
• Multiple Mounting Pin Locations on Both Top and Bottom End Tanks
• Dual Outlet Design for Multiple Plumbing Options
• 1/8" NPT Temperature Sensor Port

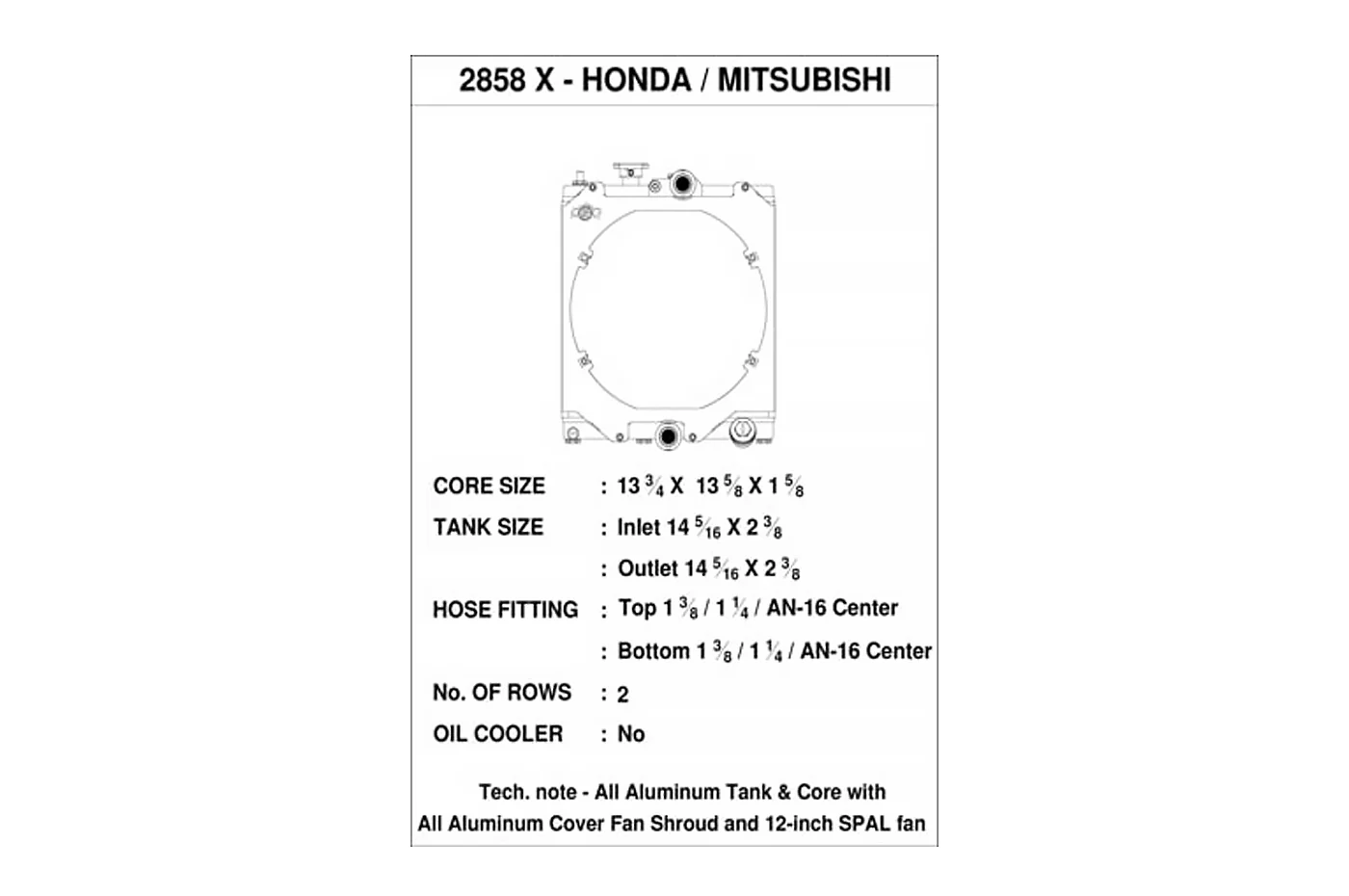

• Overall Width: 14.55" (369.5mm)
• Overall Height (not including Fittings and Cap): ~16" (407mm)
• Includes 12" SPAL 909 CFM Puller Fan (30100467)
