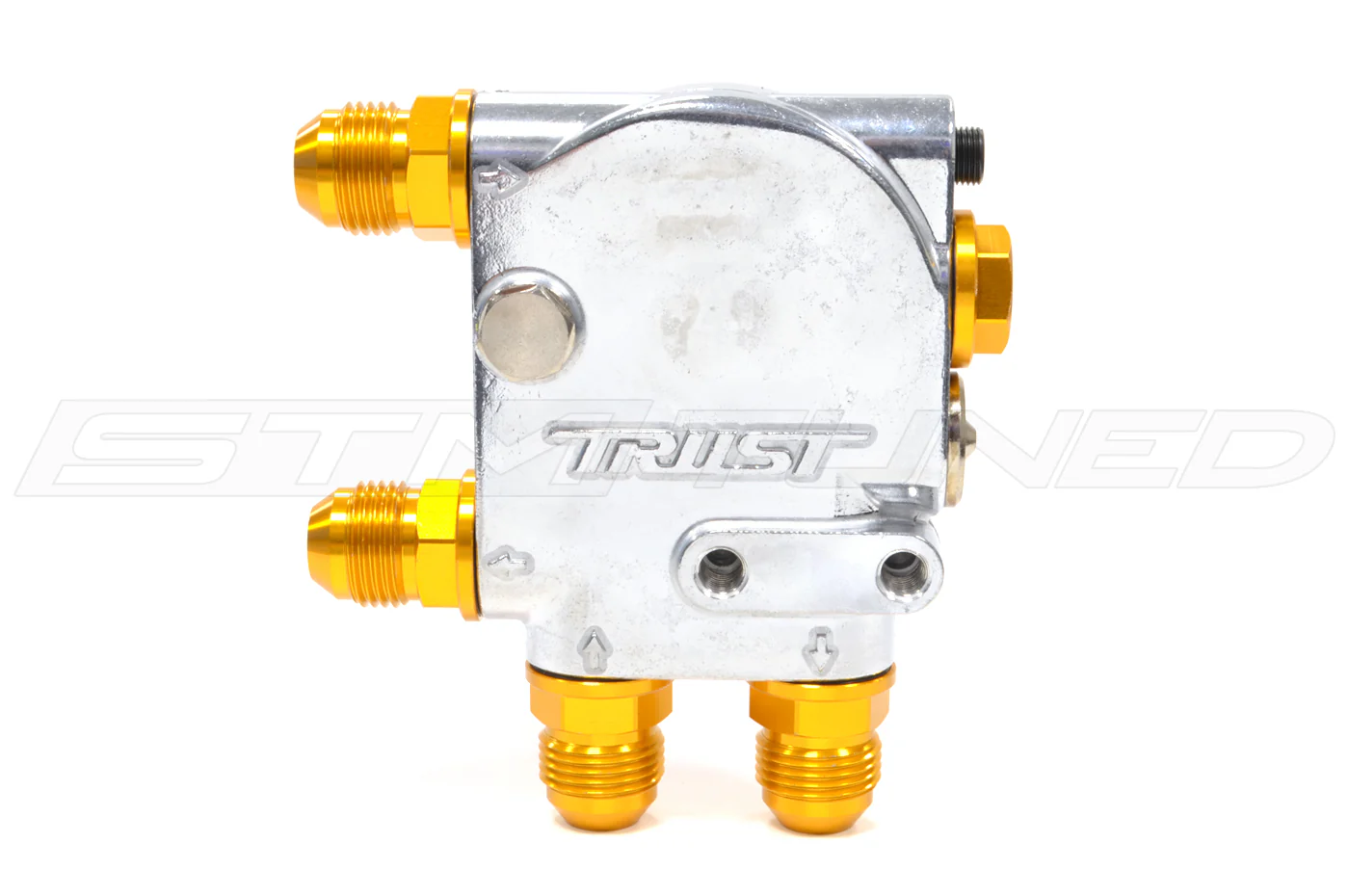

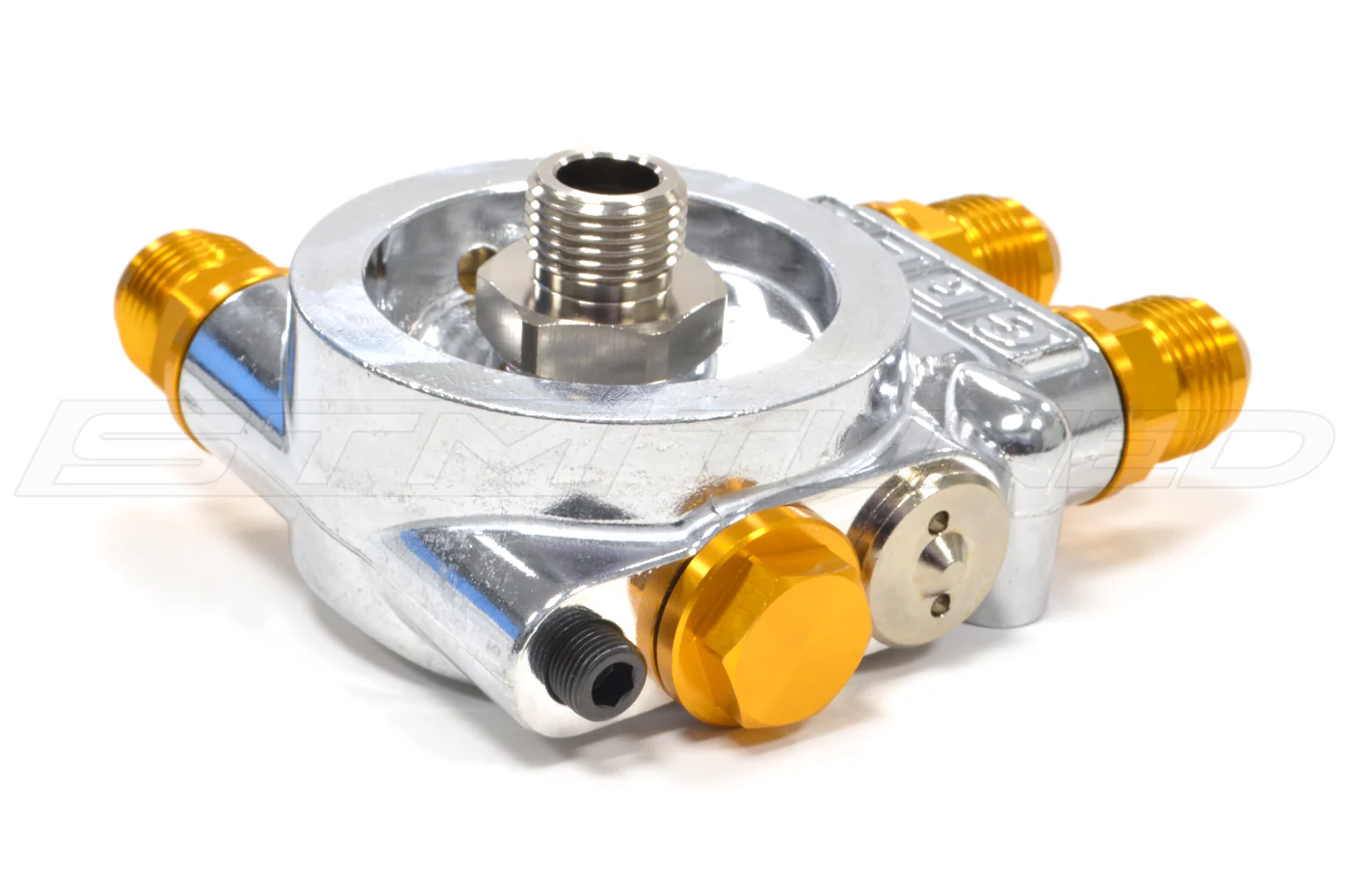

GReddy Oil Filter/Cooler Relocation Adapter (12401114)

GReddy's GREX Type-I O/C remote oil filter relocation adapter is ideal for custom oil cooler kits with oil filter relocation. A built-in thermostat allows the engine to warm to a preset temp, then open up and flow oil to the oil cooler.

Purchase Includes:

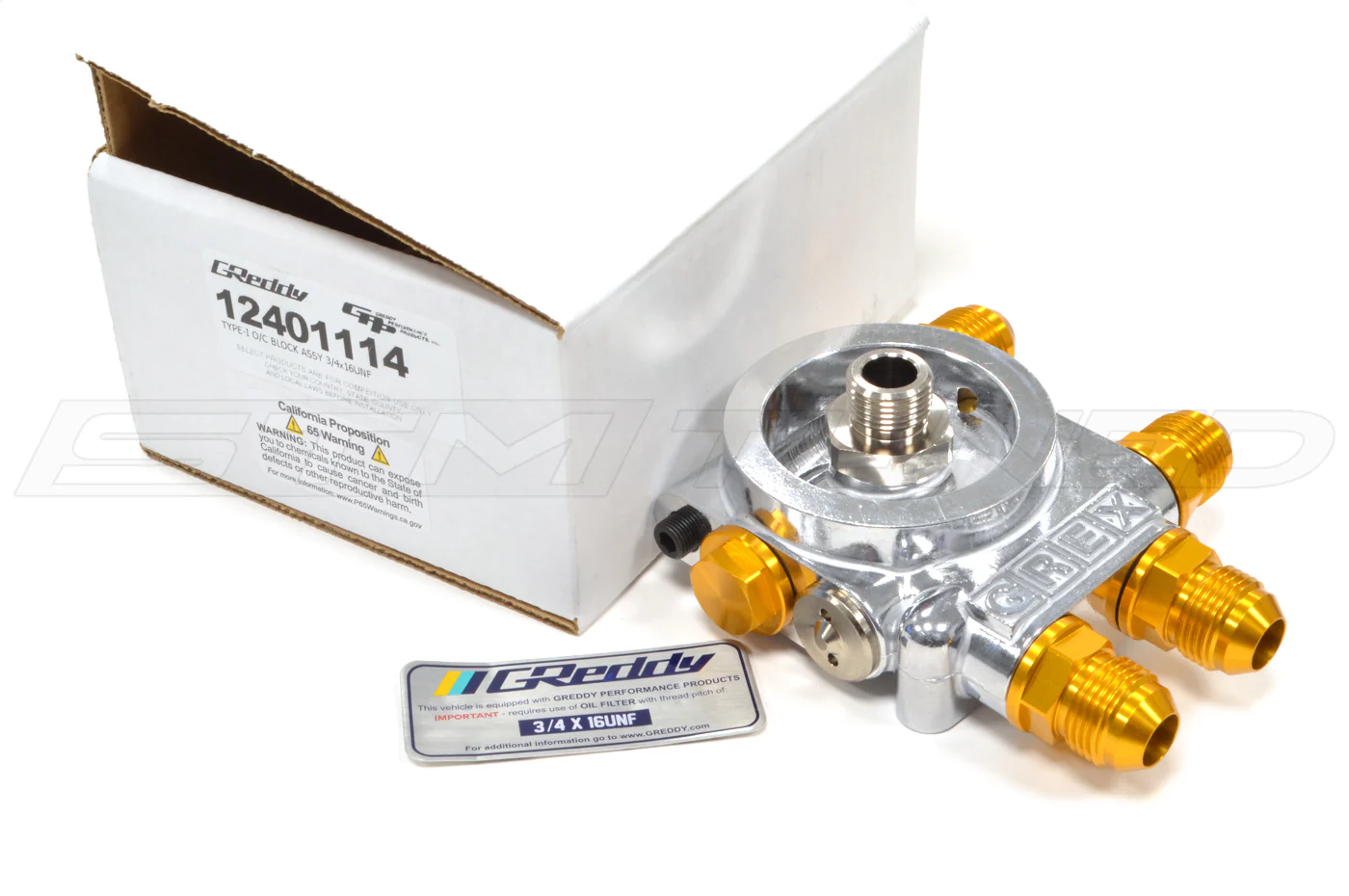

Filter block with fittings as pictured.

Fitment:
for 3/4" x 16UNF Oil Filters

GReddy Thermostat:
70-80°C

*IMPORTANT*
(12009990) *optional -10AN bypass tube if no oil cooler is used.
Oil outlet and inlet for the oil cooler mustbe looped back.

Ideally to used with -10 AN Oil Block Adapter to engine without thermostat:
M20 x P1.5 (12401129)
3/4 x 16UNF (12401111)

Type-F:
M20 x P1.5 (12401131)
3/4 x 16UNF (12401135)

GReddy x Taarks Collab. RB-specific Remote Oil Block (12428100).
Use (16400721) for 1/8PT ports to use with Pressure & Temperature Sensors.
Optional GReddy Direct M18xP1.5 O-ring fittings (1240215X).
